FOX Performance Elite Series 2.5 Coilover Reservoir Front Shocks (2″ Lift) – 883-06-177

FOX

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front FOX Performance Elite 2.5 coilover reservoir shock, part number FOX883-06-177, for a 2 inch lift
  • Fits the 2005–2023 Toyota Tacoma in Base, Limited, Pre Runner, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport, Trail and X-Runner models
  • 2.5 inch aluminum body with an external reservoir and DSC adjuster
  • Compressed length 16.640 inches, extended length 21.370 inches

Description

Overview

The FOX883-06-177 is a front Performance Elite 2.5 coilover reservoir shock sold for a 2 inch lift on the Toyota Tacoma. It covers 2005 to 2023 Tacoma models in Base, Limited, Pre Runner, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport, Trail and X-Runner trims.

The Performance Elite shocks correct the Tacoma’s forward rake, giving a level ride height without limiting droop travel, and they increase suspension articulation.

The 2.5 inch aluminum bodies carry Type III anodizing, which FOX says prevents corrosion and wear. The external reservoirs add internal oil capacity, and FOX says cooler shocks work better and last longer.

Dual Speed Compression adjusters are mounted to clear aggressive tires at full lock. Drivers can adjust them for load, environment and driving style. The high-flow piston keeps stability over varied terrain.

Compressed length is 16.640 inches, extended length is 21.370 inches and travel length is 4.730 inches. The top mount is OEM, the bottom mount is an eyelet and the shock type is coilover reservoir.

Key features

  • Sold for a 2 inch lift.
  • 2.5 inch aluminum body
  • Type III anodizing that resists corrosion and wear.
  • External reservoir for added oil capacity
  • Dual Speed Compression adjusters, mounted to clear aggressive tires at full lock
  • High-flow piston for stability over varied terrain.

Choosing a reservoir shock

A reservoir shock moves its extra oil and gas capacity into a separate body, which helps the damper stay cool and consistent when the truck works hard on long climbs or repeated washboard. On a Tacoma, the front shock carries a large share of the load during braking and cornering, so the damping has to hold steady as temperatures change.

When choosing, look at how the shock fits the rest of the suspension. Coilover setups change spring rate and ride height together, so a shock that matches the lift and the spring package works better than one chosen on length alone. Tire size also matters, because larger tires change the leverage on the shock and the clearance at full steering lock.

  • Check the mounts and body clearance against the spring seat and frame before fitting
  • Replace the upper and lower bushings when the shock is removed
  • Re-check torque on the mounting bolts after the first few drives

Specifications

Brand FOX
Part number FOX883-06-177
Series 2.5 Performance Elite
Position Front
Shock type Coilover reservoir
Top mount OEM

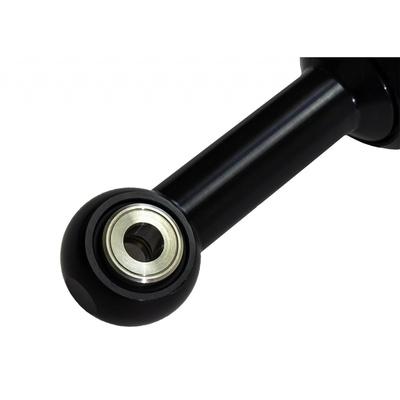

Bottom mount Eyelet
Body diameter 2.5 inches
Compressed length 16.640 inches
Extended length 21.370 inches
Travel length 4.730 inches
Lift 2 inches, per title
Adjuster Dual Speed Compression (DSC)
Fitment type Direct fit

Vehicle fitment

It fits the 2005–2023 Toyota Tacoma in Base, Limited, Pre Runner, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport, Trail and X-Runner models.

The list covers Tacoma models from 2005 to 2023 only. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The lift is 2 inches, so check the mounts and the compressed and extended lengths against your current front shock before fitting. Work on a securely supported vehicle.

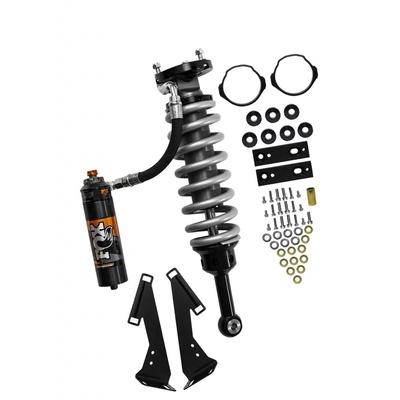

What’s included

One front coilover reservoir shock.

Fitment

VehicleYearsTrims
Toyota Tacoma2005–2023Base, Limited, Pre Runner, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport, Trail, X-Runner

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is the FOX883-06-177 for a 2 inch lift?

The shock is sold for a 2 inch lift. Its compressed length is 16.640 inches and its extended length is 21.370 inches, so compare those with your current setup before ordering.

Does it fit a 2017 Tacoma TRD Off-Road?

Yes. It fits the 2005 to 2023 Toyota Tacoma in TRD Off-Road models, so a 2017 Tacoma TRD Off-Road is covered. Confirm the trim before ordering.

What are the adjusters for?

Dual Speed Compression adjusters let you adapt the shock to load, terrain and driving style. They are positioned to clear aggressive tires at full lock.

How can I tell when a reservoir shock needs replacing?

Look for oil seeping from the body or reservoir hose, dents in the reservoir, and a bouncy or hollow feel over bumps. Uneven tire wear and a sagging front end can also point to a worn shock. Replace a leaking unit rather than trying to refill it on the trail.
