Overview

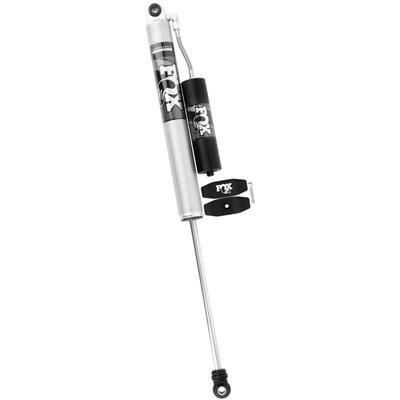

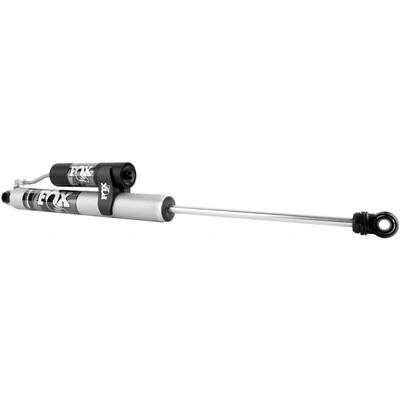

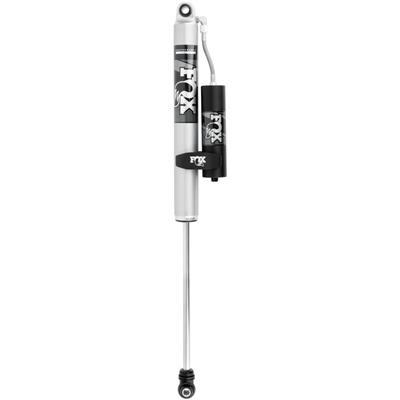

Part number FOX985-24-149 is a rear reservoir shock from the FOX Performance Series 2.0 Smooth Body line. It fits 2017–2022 Ford F-250 and F-350 Super Duty trucks and comes with a billet reservoir clamp.
The external reservoir gives the monotube more oil and nitrogen capacity, which FOX says supports consistent damping over extended use. The aluminum body is clear anodized and metal-impacted to dissipate heat, and the high flow damping piston is paired with valving matched to the application.
An external reservoir adds oil and nitrogen capacity beside the main body, which FOX says helps the damping stay consistent during extended use. The billet clamp holds the reservoir in place, and the clear anodized aluminum body is metal-impacted to help it dissipate heat faster than a steel body.
On a Super Duty the rear shocks carry load in the bed and work over rough roads, so the extra reservoir volume is most useful on trucks that are driven hard or loaded. Check the reservoir clearance against the frame and body before installation, since a reservoir adds bulk beside the shock.
Key features
- External reservoir with more oil and nitrogen volume.
- Billet reservoir clamp included.
- Clear anodized, metal-impacted aluminum body.
- High flow damping piston with application-specific valving.
- Rear position with a gas charge.
Checking clearance and load
Rear shocks on a Super Duty carry the weight of the bed and whatever is loaded in it, and they cycle often on rough roads. A reservoir adds bulk beside the shock body, so the space between the reservoir and the frame, the spring perch and the bed mounts should be checked before the shock goes in. A clear gap now prevents rubbing and hose damage later.
Shock life depends on how the truck is used. Towing and heavy hauling put more heat into the damping, and that heat is the main thing a larger oil volume helps control. Watch for fading on long descents, oil residue on the shaft and reservoir clamp wear, since a loose clamp lets the reservoir knock against the body.
- Measure reservoir clearance against the frame
- Check the billet clamp for wear or looseness
- Look for oil on the shaft after loaded trips
- Replace rear shocks in pairs when wear is found
Specifications
| Brand | FOX |
|---|---|
| Part number | FOX985-24-149 |
| Shock series | Performance Series |
| Position | Rear |
| Location | Rear |
| Shock type | Reservoir |
| Reservoir clamp | Billet, included |
| Charge | Gas charged |
Vehicle fitment
It fits the 2017–2022 Ford F-250 Super Duty and 2017–2022 Ford F-350 Super Duty across their trim levels. The F-150 and earlier Super Duty years are not included.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One rear reservoir shock with the billet reservoir clamp.
