Overview
The Fabtech K1098 is a 4-inch Uniball upper control arm lift for the 2016–2018 Chevrolet Silverado 1500 and the 2014 and 2016–2018 GMC Sierra 1500. It fits vehicles with MagneRide (Magnetic Ride Control) and steel suspension, and it gives clearance for 33-inch tall tires on K1500 trucks.
The front keeps the factory coilover shocks with a steel spacer system. The stock upper control arms are replaced with tubular Uniball arms made from 0.120 wall 4130 chromoly with a 1.50-inch OD, using 1-inch FK stainless PTFE Uniballs. The front differential is relocated to keep CV angles proper, and a 1/4-inch thick steel skid plate protects the front. At the rear, 1 1/2-inch lift blocks with U-bolts are used. Shocks are not included.
Key features
- 4-inch lift height, range 3 to 4.99 inches
- Tubular Uniball upper control arms
- 0.120 wall 4130 chromoly, 1.50-inch OD
- 1-inch FK stainless PTFE Uniballs
- Front differential relocation
- 1/4-inch thick steel skid plate
Suspension type and setup
MagneRide and steel suspension trucks respond differently to a control arm lift, so confirming the suspension type is the first step before any parts are bought. Because this lift relocates the front differential and uses Uniball arms, driveline angles and steering geometry should be checked once the truck is at its new height. A quick inspection of the wiring around the suspension after installation helps catch any stretch.
Shocks are not included, so the existing shocks should be inspected for wear before installing the kit. Worn shocks on a raised truck can cause bottoming and uneven tire wear. Check the rear lift blocks and U-bolts after the first few drives, and recheck the front alignment after any control arm or spacer change.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K1098 |
| UPC | 700007389301 |
| Lift height | 4 inches (range 3 to 4.99 inches) |
| Suspension type | Spacer |
| Suspension requirement | MagneRide (Magnetic Ride Control) and steel suspension |
| Rear lift method | 1 1/2-inch lift blocks and U-bolts |
| Tire and wheel fit | 33/12.50R17 on 17×8, 275/65R18 on 18×8, 295/55R20 on 20×9; minor trimming |
| Shocks | Not included |
Vehicle fitment
It is a direct fit for the 2016–2018 Chevrolet Silverado 1500 and the 2014 and 2016–2018 GMC Sierra 1500.
All-wheel drive models and standard cab trucks are excluded, and the OEM wheel and tire cannot be used. The 2015 GMC Sierra 1500 falls outside this kit. Verify the year, model and trim against your truck before ordering.
Installation notes
The kit is for MagneRide and steel suspension vehicles, so confirm the factory suspension type before installing. The 1-inch FK stainless PTFE Uniballs are part of the arms.

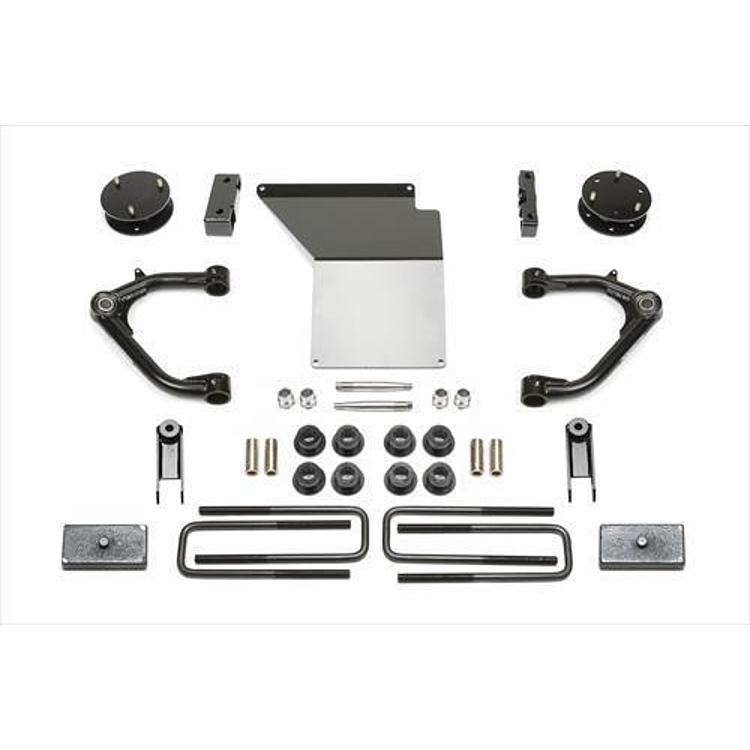

What’s included
Tubular Uniball upper control arms, front coilover spacers, the differential relocation parts, the 1/4-inch thick steel skid plate, the rear lift blocks with U-bolts and the hardware for the kit.
Not included: Shocks.
