Fabtech 3″ Spacer System with Dirt Logic 2.25 Remote Reservoir Shocks – K4102DL

Fabtech

Shop Jeep Wrangler JL Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3 inch spacer system with Dirt Logic 2.25 remote reservoir shocks
  • For 2018 Jeep Wrangler JL Unlimited four door, 3.6L V6
  • Front steel and rear billet coil spring spacers keep the factory coils

Description

Overview

The Fabtech K4102DL is a 3 inch spacer system for the 2018 Jeep Wrangler JL Unlimited four-door with the 3.6L V6. It adds height with front steel and rear billet coil spring spacers, and it comes with Dirt Logic 2.25 remote reservoir shocks in place of the stock shocks.

The spacers sit around the factory coil springs, so the stock springs stay in service. Fabtech positions the system as an entry level way to fit oversized tires while keeping the factory ride.

Key features

  • Dirt Logic 2.25 remote reservoir shocks included
  • Front steel and rear billet coil spring spacers that keep the stock coil springs
  • Four bump stop extensions that limit travel within factory specifications
  • Extended front and rear sway bar links with urethane bushings
  • Extended rear sway bar links prevent the bar from going over center at full extension
  • Heavy-duty rear track bar bracket that recenters the axle
  • Retains the factory roll center at the higher ride height

Remote reservoir shock basics

A remote reservoir shock separates the gas reservoir from the shock body and connects them with a hose. The separation helps the shock keep its damping under heavy use, which is useful on rough trails and when the truck is loaded. The reservoir and hose need clearance from the tires, body and exhaust, so routing takes care during installation.

Remote reservoir shocks are often chosen by owners who run off road for long periods. Check the hoses for chafing, the reservoir mounts for looseness and the shock eyes for worn bushings after trail use. Because the spacers and sway bar links are fitted at the same time, recheck all hardware once the new height is set. Keep the reservoir clean so any leak is easy to spot early.

  • Check hose routing for chafing
  • Inspect reservoir mounts after trail use
  • Look for oil on the shock body

Specifications

Brand Fabtech
Part number K4102DL
UPC 700008517341
Lift height range 2 to 3 inches
Engine 3.6L V6
Front shocks Dirt Logic 2.25 remote reservoir
Front spacer Steel
Rear spacer Billet
Tire fit 35 inch with minor trimming on standard fenders; 37 inch with cutting on high clearance fenders

The remote reservoir version separates the reservoir from the shock body, which is the difference from the non-reservoir Dirt Logic 2.25 shock in this line. The spacer, sway bar and bump stop components match the other JL spacer systems in the line.

The lift height range for this system is 2 to 3 inches.

Vehicle fitment

It fits the 2018 Jeep Wrangler JL Unlimited four-door models across the covered Unlimited trim levels. Two-door JL models are not included.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Standard fenders need minor trimming for 35 inch tires, and high clearance fenders need cutting for 37 inch tires. An alignment is needed once the new height is set.

What’s included

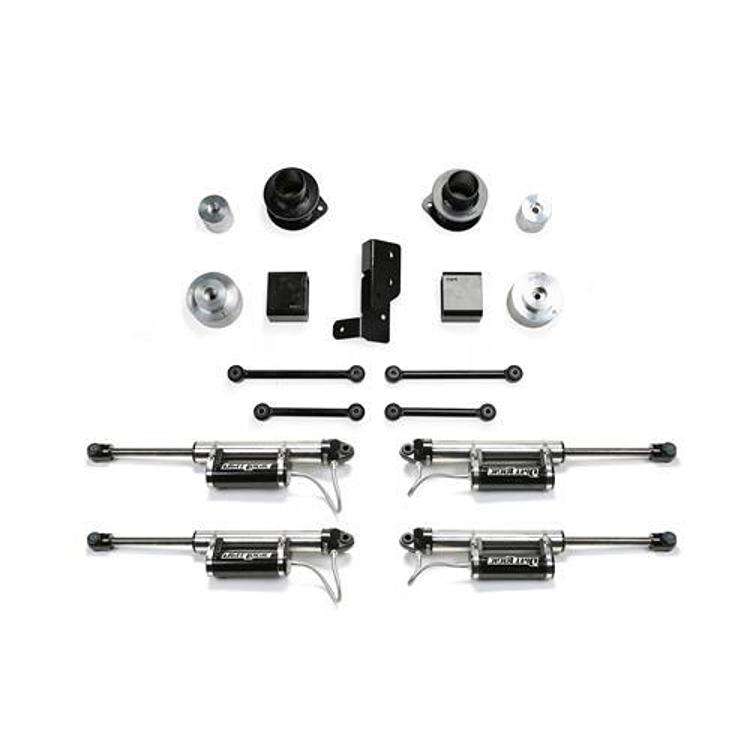

Included: Dirt Logic 2.25 remote reservoir shocks, front and rear coil spring spacers, four bump stop extensions, extended sway bar links, and the rear track bar bracket.

SKU: FABK4102DL Category:

Specification

Shipping weight 88.40 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JL)2018Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K4102DL fit a 2018 Jeep Wrangler JL Unlimited?

Yes. It fits the 2018 JL Unlimited four-door models with the 3.6L V6. Two-door models are not covered. Confirm your year, model and trim before ordering.

What is different about the remote reservoir shocks?

The shocks are Dirt Logic 2.25 remote reservoir units. The reservoir is mounted separately from the shock body, which is the difference from the non-reservoir version in this line.

Does the system replace the factory coil springs?

No. The steel and billet spacers sit around the stock coil springs, so the factory springs stay in use while the vehicle is raised 2 to 3 inches.

How do I keep remote reservoir shocks in good condition?

Keep the reservoir and hoses clean, and check the mounts and fittings for looseness or oil after trail use. Inspect the shock eyes and bushings for wear. Replace hoses that show chafing before they fail under load.
