Overview
The Fabtech K2145DL is a 6-inch radius arm lift with Dirt Logic SS shocks. It fits non-dually 2008–2015 Ford F-350 Super Duty trucks and uses replacement coil springs at the front and a block and U-bolt kit at the rear.
Patented radius arms have a full tubular structure reinforced with dimple die side plates. An adjustable alignment cam at the axle sets caster. The kit includes a trac bar relocation bracket, a pitman arm and sway bar drops. It takes 315/70R17 tires on 17×8 wheels with a 4 1/2-inch backspace or 325/65R18 tires on 18×9.5 wheels with a 4 3/4-inch backspace, both with minor trimming.
Key features
- 6-inch lift, range 5 to 6.99 inches
- Patented radius arms.
- Full tubular arm structure with dimple die side plates
- Adjustable alignment cam at the axle
- Dirt Logic SS shocks included
- Non-dually models only
Radius arm upkeep
Radius arms carry braking and acceleration forces, so their bushings and frame mounts see steady load. Inspect the arms for cracks around welds, check the bushings for splits, and look for play at the axle end when the truck is lifted and supported. Address any movement before it spreads to nearby suspension parts.
Track bar drops, pitman arm changes and sway bar drops are often replaced at the same time, since they all affect steering and handling. After installation, recheck the bolts, confirm the alignment, and watch for uneven tire wear. A radius arm lift can change how the truck tracks, so note any drift on the highway.
Keep the bushings and boots clean, and rinse the undercarriage after driving through deep mud.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K2145DL |
| UPC | 700007266941 |
| Lift height | 6 inches (range 5 to 6.99 inches) |
| Suspension type | Radius arm |
| Front spring | Replacement coil springs |
| Rear lift method | Block and U-bolt kit |
| Tire and wheel fit | 315/70R17 on 17×8 with 4 1/2-inch backspace; 325/65R18 on 18×9.5 with 4 3/4-inch backspace |
| Applies to | Non-dually models only |
Vehicle fitment
It fits 2008–2015 Ford F-350 Super Duty trucks, including Cabela’s, FX4, Harley-Davidson, King Ranch, Lariat, Platinum, XL and XLT models.
Dually models are not covered, and F-250 Super Duty trucks are not on this fit list. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
The kit includes a trac bar relocation bracket, a pitman arm and sway bar drops, so the steering and sway bar parts change during the install. Both listed tire sizes call for minor trimming.

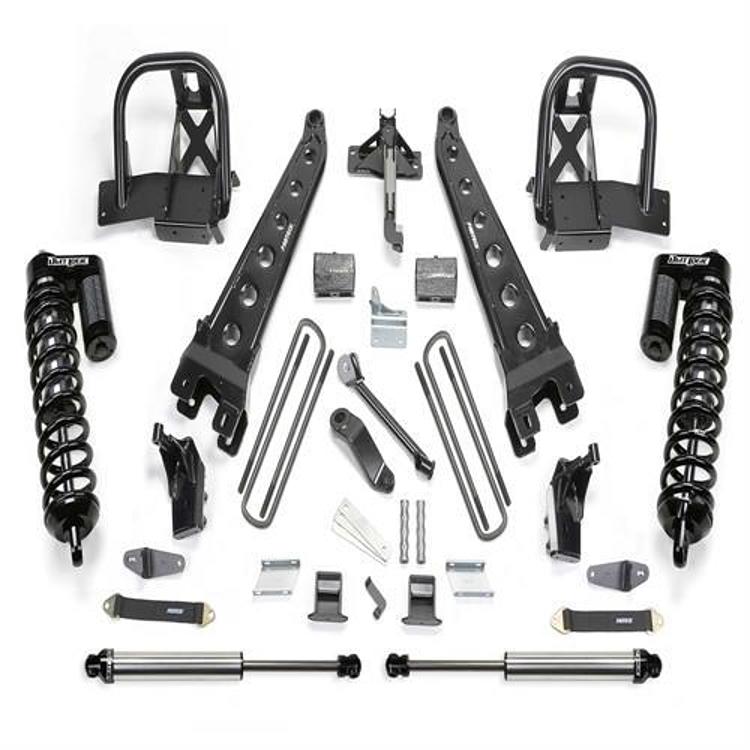

What’s included
Patented radius arms, replacement front coil springs, a block and U-bolt kit, a trac bar relocation bracket, a pitman arm, sway bar drops and Dirt Logic SS shocks.
