Fabtech 6 Inch Radius Arm Lift Kit w/Dirt Logic SS 4.0 Coilovers & Rear Dirt Logic SS Shocks – K20301DL

Fabtech

Shop Ford F-350 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Lists the 2008–2010 Ford F-350 Super Duty
  • 6-inch radius arm system with Dirt Logic 4.0 coilover conversion at the front
  • Rear block and U-bolt kit with Dirt Logic SS shocks
  • Adjustable caster cam at the axle
  • Non-dually models only

Description

Overview

The K20301DL is a 6-inch radius arm lift for 2008–2010 Ford F-350 Super Duty trucks. The front uses radius arms and a Dirt Logic 4.0 coilover shock conversion, and the rear uses a block and U-bolt kit with Dirt Logic SS shocks. It is for non-dually models only.

Fabtech describes its radius arms as patented. Each arm is a full tubular structure strengthened with dimple die side plates, and an adjustable alignment cam at the axle allows caster to be set. The kit also includes a trac bar relocation bracket, a pitman arm and sway bar drops.

Key features

  • 6-inch lift in the 5 to 6.99 inch range
  • Full tubular radius arms with dimple die side plates
  • Adjustable alignment cam at the axle for caster
  • Dirt Logic 4.0 coilover conversion at the front
  • Rear block and U-bolt kit
  • Dirt Logic SS shocks front and rear

Coilover radius arm care

Coilover shocks on a radius arm setup carry much of the spring load, so their mounts and seals deserve regular attention. Look for oil on the shock body, damaged bushings and any sign that the spring has shifted on its seat. The alignment cam at the axle should be checked whenever caster is changed, because a loose cam can alter the setting over time.

Radius arms can wear at the bushings, especially on trucks used with heavy towing or rough terrain. The arm bodies carry the load, but the joints still need greasing and periodic inspection. When tires are upsized, check for rub points at the fender and the steering stops, and recheck the caster and toe after any change.

  • Check coilover seals for leaks at each service
  • Inspect radius arm bushings for cracking
  • Recheck caster after any alignment cam change

Specifications

Brand Fabtech
Part number K20301DL
UPC 674866096264
Lift height 6 inches (range 5 to 6.99 inches)
Suspension type Coilover radius arm
Rear lift method Lift blocks and U-bolts
Shocks included Yes, Dirt Logic SS shocks
Tire and wheel fit 315/70R17 on 17×8, 325/65R18 on 18×9.5, 35/12.50R20 on 20×9
Wheel backspacing 4 1/2-inch, 4 3/4-inch and 5-inch, with minor trimming
Applies to Non-dually models only

Vehicle fitment

It fits the 2008–2010 Ford F-350 Super Duty.

It is for the F-350 Super Duty only, and it does not fit the F-250 or other Ford trucks. Dually models are not covered. Match your truck’s model and dually status against this kit before ordering.

Installation notes

A front driveshaft modification may be needed to clear the exhaust on gas engines. Check that clearance before driving the truck after installation.

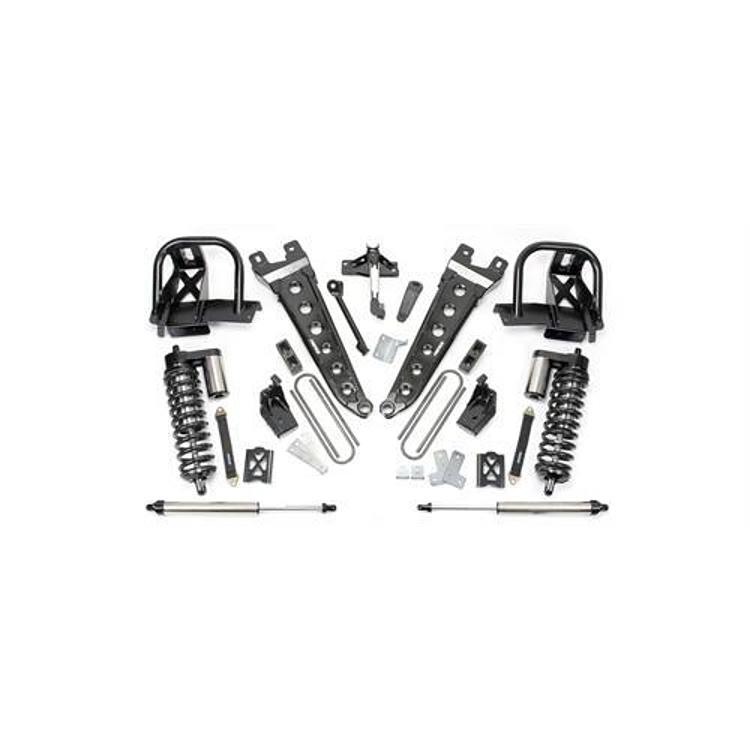

What’s included

Radius arms, the Dirt Logic 4.0 coilover conversion, the trac bar relocation bracket, the pitman arm, sway bar drops, the rear block and U-bolt kit and the Dirt Logic SS shocks.

SKU: FABK20301DL Category:

Specification

Shipping weight 404.40 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-350 Super Duty2008–2010Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is the K20301DL for dually F-350 trucks?

No. The kit is for non-dually models only, so dually trucks are not covered. It fits the 2008–2010 Ford F-350 Super Duty.

Does this kit need a driveshaft change on a gas truck?

A front driveshaft modification may be required on a gas truck to clear the exhaust. Check the clearance before installing the kit and before driving the truck afterward.

What is the front lift method on the K20301DL?

The front uses radius arms with a Dirt Logic 4.0 coilover shock conversion, and the rear uses a block and U-bolt kit with the included shocks.

How often should radius arm bushings be inspected?

Inspect the radius arm bushings and alignment cam at each tire rotation or after rough off-road use. Look for cracking, play at the axle, or shifting that changes caster, and retighten or replace the parts as needed before driving the truck.

Are coilover shocks serviced differently from standard shocks?

Coilover shocks are usually serviced as a unit, so the spring and shock should be inspected together. Check for leaks, damaged seals and worn mounting bushings, and keep the shock body clean to protect the seals.
