Overview
The Fabtech K1007M is a 6-inch performance lift for the 2000–2006 Chevrolet Suburban 1500, the 2000–2006 Chevrolet Tahoe, the 2002–2006 Chevrolet Avalanche 1500 and the 2000–2006 GMC Yukon XL 1500. The front uses one-piece ductile iron drop-down steering knuckles on 1/4-inch thick, high arched lower control arm crossmembers, and the rear uses a 5-inch block kit with an add-a-leaf.
The front differential is relocated with a cradle-style bracket, so the factory front driveshaft can be used on AutoTrac models without vibration. Solid steel billet sway bar end links with urethane bushings keep the factory front sway bar angle. Stealth shocks go at the front and load leveling shocks at the rear.
Key features
- 6-inch lift in the 5 to 6.99 inch range
- One-piece ductile iron drop-down steering knuckles
- Heavy duty 1/4-inch thick high arched crossmembers
- Cradle-style differential relocation bracket
- Solid steel billet sway bar end links with urethane bushings
- Stealth front shocks and rear load leveling shocks
Load leveling and wheel choice
Load leveling shocks at the rear work alongside the lift, which helps the rear sit level when weight is added. A 5-inch block kit and add-a-leaf raise the rear, so the load leveling shocks help the lifted rear handle towing and cargo more evenly. Check the mounts and fasteners periodically, since the rear carries the extra load.
Wheel choice is the other major decision with a lift like this. Trucks with OEM 17-inch wheels need aftermarket wheels that are 17 inches or larger, and backspacing affects where the tire sits in the fender. Plan the wheel and tire pairing before buying the lift, so fitment and trimming needs are settled ahead of time.
- Confirm backspacing against the tire width
- Check the add-a-leaf for sag after the first loads
- Re-torque U-bolts after the first drive
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K1007M |
| UPC | 700007232621 |
| Lift height | 6 inches (range 5 to 6.99 inches) |
| Suspension type | Knuckle |
| Rear lift | 5-inch block kit and add-a-leaf |
| Tire and wheel fit | 315/75R16 on 16×10, 315/70R17 on 17×9, 325/65R18 on 18×9, each with minor trimming |
| Shocks | Stealth shocks at the front, load leveling shocks at the rear |
Vehicle fitment
It fits the 2002–2006 Chevrolet Avalanche 1500, the 2000–2006 Chevrolet Suburban 1500, the 2000–2006 Chevrolet Tahoe and the 2000–2006 GMC Yukon XL 1500.
It does not fit 2500 or 2007 and later models, and it excludes vehicles with AutoRide shocks and all-wheel drive models. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Larger tires cannot be installed on OEM wheels. Trucks with OEM 17-inch wheels need aftermarket wheels of 17 inches or larger.

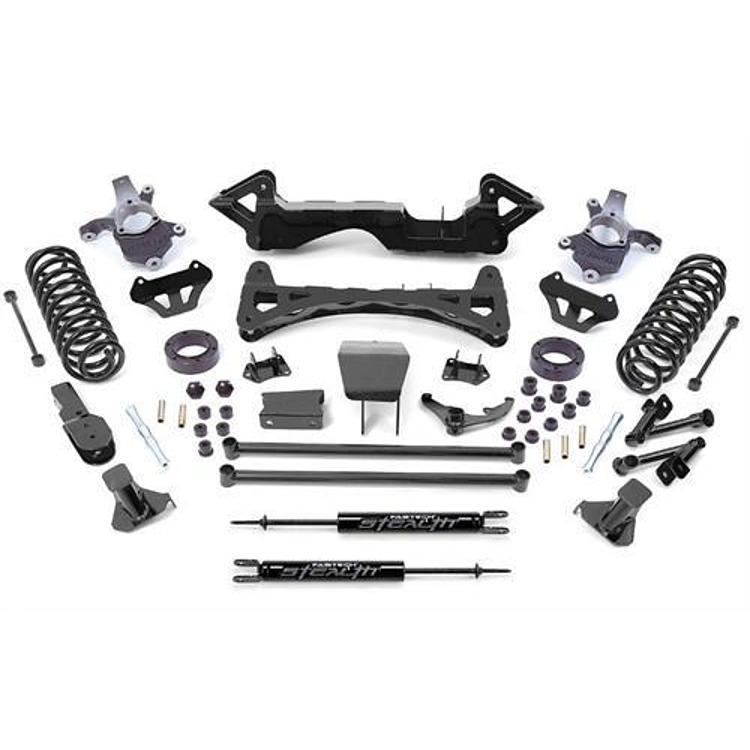

What’s included
Drop-down steering knuckles, high arched crossmembers, impact struts, torsion bar drop down brackets, a differential skid plate and relocation bracket, billet sway bar end links, a 5-inch block kit, an add-a-leaf and the Stealth and load leveling shocks.
