Overview
The Fabtech K4047 is a 3-inch Budget lift kit with performance shocks for Jeep Wrangler JK models from 2007 to 2018. It does not cover 2016 models. Four American made coil springs are designed to clear 35-inch tall tires, and the springs go through a preset manufacturing process so the ride height stays consistent.
The kit is sold as a complete box. It includes front and rear shocks, front sway bar links, front bump stops, rear bump stop extensions, a rear trac bar bracket, a rear brake hose extension and emergency brake cable brackets. The system is designed to increase off-road capability and provide a good highway ride.
Key features
- 3-inch lift height
- Four American made coil springs
- Designed to clear 35-inch tall tires
- Front and rear shocks included
- Front sway bar links and bump stops
- Rear bump stop extensions and trac bar bracket
- Rear brake hose extension and emergency brake cable brackets
Body style and spring choice
Two-door and four-door Jeeps differ in wheelbase and weight, so a spring set made for one body style may not sit or ride the same on the other. Choosing the right body style is the first decision in this job, and it affects how the Jeep settles at the new height. Once the springs are in, the ride and steering geometry change, so a check after the first drive is useful.
Coil springs can sag or crack over years of use and off-road impacts. Look at the spring seats and rubber isolators at each service, since worn seats let the springs shift. Pair the springs with healthy bump stops and sway bar links so the whole suspension works together.
- Check the body style before ordering
- Inspect spring seats and isolators at each service
- Look for cracks in the coils after rough trail use
Specifications
| Brand | Fabtech |
|---|---|
| Part number | FABK4047 |
| Lift height | 3 inches |
| Lift height range | 0 to 3.5 inches |
| Tire clearance | 35-inch tall tires |
| Coil springs | Four, American made, built for two-door models |
| Shocks | Front and rear performance shocks, included |
| Fitment type | Direct fit |
Vehicle fitment
It fits 2007 to 2015 and 2017 to 2018 Jeep Wrangler JK models, covering two-door versions and the Unlimited four-door versions of the 70th Anniversary, Rubicon, Sahara, Sport and X trims.
2016 Wrangler JK models are not covered. Confirm the body style and year before ordering a four-door Unlimited, since the springs are built for two-door models.
Installation notes
A 3-inch lift with new coil springs and shocks changes suspension geometry, so a wheel alignment and driveline angle check belong after installation. The rear brake hose extension and emergency brake cable brackets change how those lines sit, so check them for length and clearance after the kit is in.

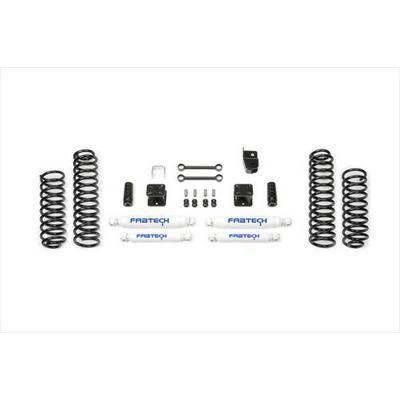

What’s included
The kit includes four American made coil springs, front and rear shocks, front sway bar links, front bump stops, rear bump stop extensions, a rear trac bar bracket, a rear brake hose extension and emergency brake cable brackets.
