Overview
The Daystar KJ09105BK is a 1.75-inch suspension lift that uses front coil spring spacers and greasable rear shackles. Daystar designs its lift kits to work inside the factory suspension, so the kit adds height without a large set of extra modifications. The maximum listed tire size is 30×10.50.
Daystar says everything needed is in the box, and any extra parts an application requires, such as longer shocks, are named in the application description.
Key features
- 1.75-inch lift
- Front coil spring spacers
- Greasable rear shackles
- Works within the factory suspension design
- Limited lifetime warranty from Daystar
Shackle care and tire clearance
Greasable shackles use fittings at the pivot points so the bushings or bearings can be serviced without removing the shackle. Grease them after installation and again at regular service intervals, and wipe off any dirt before pressing the grease gun against the fitting. Looking for cracked boots, dry pivots or squeaking over bumps is a simple way to tell when the pivot needs attention.
Tire size changes affect more than ground clearance. Larger tires add rotating weight, change gearing feel, and can rub at full steering lock or during suspension compression. Check the wheel offset and the inner fender clearance before buying new tires, and inspect the brake lines and steering linkage once the vehicle is back on the ground.
Specifications
| Brand | Daystar |
|---|---|
| Part number | KJ09105BK |
| UPC | 814423010849 |
| Lift height | 1.75 inches |
| Color | Black |
| Front lift | Coil spring spacers |
| Rear lift method | Shackles |
| Maximum tire size | 30×10.50 |
| Shocks | Not included |
| Fitment type | Direct fit |
Vehicle fitment
It is a direct fit. Check the trucks it is designed for before ordering, using the year, model and trim of your vehicle.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Grease the rear shackles at the fittings once the lift is installed. Longer shocks may be needed for some applications, so confirm your vehicle’s requirements before installation.

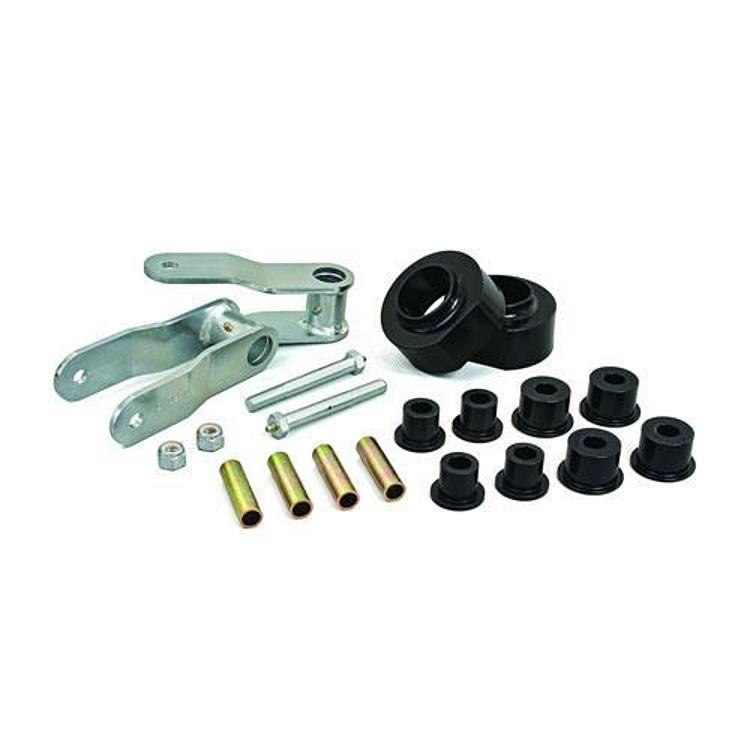

What’s included
- Front coil spring spacers
- Greasable rear shackles
Not included: shocks.
