Fabtech 5″ Crawler Lift Kit with Stealth Shocks – K4177M

Fabtech

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 5-inch Crawler long arm lift kit with Stealth shocks at the front and rear for 2020–2026 Jeep Gladiator models
  • Full width front crossmember and 2-inch OD lower link arms
  • Adjustable rear links on factory frame and axle brackets
  • Lift height range of 4 to 5.5 inches

Description

Overview

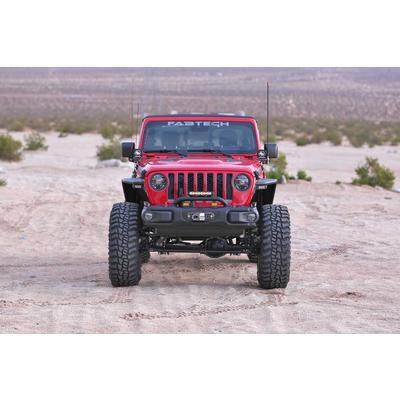

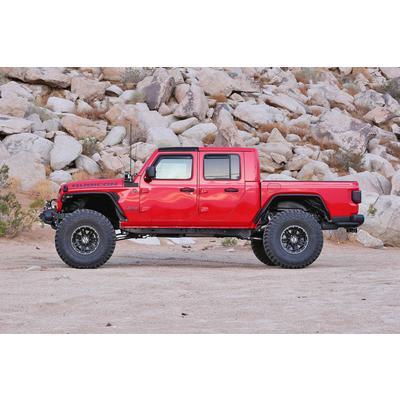

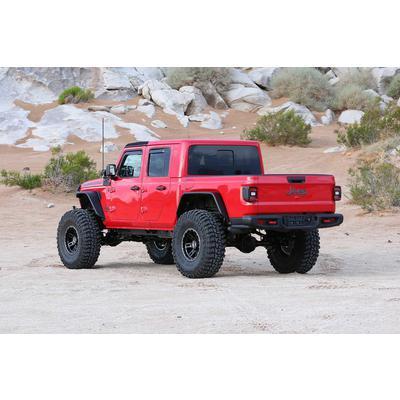

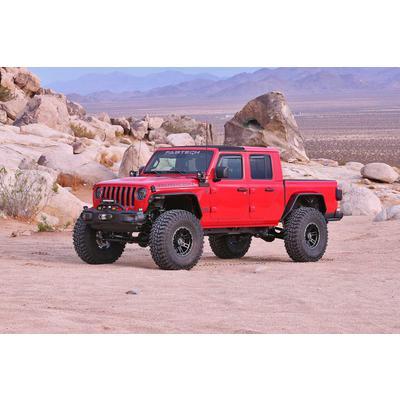

The Fabtech K4177M is a Crawler long arm lift kit with Stealth shocks at the front and rear. It is sized as a 5-inch kit for 2020 to 2026 Jeep Gladiator trucks and has a lift height range of 4 to 5.5 inches. It is designed for experienced drivers who want a suspension that works without ongoing fabrication.

The long arm geometry is the core of the design. Fabtech says its link arm placement gives the Gladiator smooth handling across the full travel range. The lower link arms are 2 inches outside diameter with a .313 wall, and the joints are Fabtech 5 Ton units that Fabtech says carry a lifetime guarantee against wear. The adjustable rear links attach to the factory frame and axle brackets.

Key features

  • 5-inch long arm Crawler design
  • Stealth shocks at the front and rear
  • Full width front crossmember spanning frame rail to frame rail
  • Lower link arms of 2-inch OD, .313 wall tubing
  • 5 Ton joints throughout the link arms
  • Adjustable rear links on factory brackets
  • Coil springs at the rear provide the lift.

Long arm geometry basics

Long arm kits use arms that run from the frame to the axle, which controls the axle position as the suspension moves. Because the arms replace the factory control arm positions, the pivot points and bushings take a different load. Inspect the bushings and joints at routine service, especially after rough terrain or hard landings.

Coil springs at the rear work with the long arm design to keep the ride consistent. The adjustable rear links let you dial in pinion angle, which affects driveline vibration. Use a helper for alignment checks and take measurements both before and after adjusting the links so you can compare the results.

Wheel and tire changes affect how the arms and links move, so check clearance at full travel after any size change. Keep fasteners torqued to specification, and recheck them after the first few trips. Shocks at the front and rear should be inspected when the suspension is serviced.

Specifications

Brand Fabtech
Part number FABK4177M
Lift kit size 5 inches
Lift height range 4 to 5.5 inches
Front shocks Stealth
Rear shocks Stealth
Rear lift component Coil spring
Lower link arms 2-inch OD, .313 wall tubing
Fitment type Direct fit

Vehicle fitment

The kit fits 2020 to 2026 Jeep Gladiator models in the 80th Anniversary, High Altitude, Launch Edition, Overland, Rubicon, Sport, Sport S, Willys and Willys Sport versions.

2019 and 2023 and later Gladiator models are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the long arms replace the factory control arm positions, an alignment and a driveline angle check should follow installation. Check the adjustable rear links and the front link arms for clearance at full travel once the kit is in.

What’s included

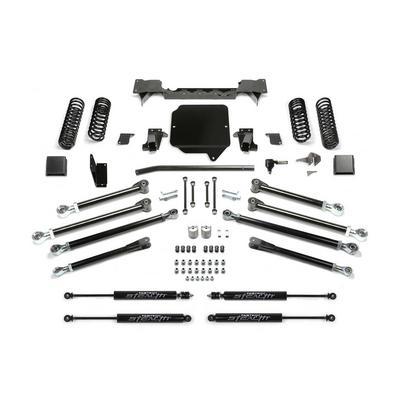

The kit includes the long arm link set, the full width front crossmember, the adjustable rear links, the Stealth shocks at the front and rear, and the rear coil springs.

SKU: FABK4177M Categories: ,

Fitment

VehicleYearsTrims
Jeep Gladiator2020–202680th Anniversary, High Altitude, Launch Edition, Overland, Rubicon, Sport, Sport S, Willys, Willys Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

How does the K4177M differ from the K4177DL?

The K4177M uses Stealth shocks at the front and rear, while the K4177DL uses Dirt Logic 2.25 shocks. Both use the same long arm design, so choose based on the shock setup you prefer.

Does this Gladiator kit fit a 2021 model?

Yes. The kit fits 2020 through 2026 Gladiator models in several versions. Confirm your version and year before ordering, because coverage is grouped by trim.

What lift height does the K4177M provide?

The lift height range is 4 to 5.5 inches, and the kit is sized as a 5-inch lift. Stealth shocks at the front and rear are part of the package, so no separate shocks are needed.

How should the joints on long arm links be maintained?

Inspect the joints and bushings at each service and after rough trail use. Look for play, torn boots or cracked rubber. Grease fittings, if present, should be serviced on schedule, and any worn joint should be replaced rather than retightened.
