Fabtech 3″ Uniball Upper Control Arm Lift Kit with Shock Spacers – K2383

Fabtech

$953.74In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 9:40 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fabtech 3 inch Uniball upper control arm lift kit with shock spacers, part number K2383
  • Built for 35 inch tires on the 2021–2026 Ford Bronco
  • Uniball upper control arms with extra caster
  • Track bar relocation bracket re-centers the rear axle

Description

Overview

The Fabtech 3 inch Uniball upper control arm lift kit with shock spacers, part number K2383, is a 3 inch lift for the 2021–2026 Ford Bronco built for 35 inch tires. It fits the Badlands, Base, Big Bend, Black Diamond, First Edition, Outer Banks and Wildtrak trims.

The factory upper control arms are replaced with Fabtech Uniball arms, which add wheel travel and extra caster compared with stock arms. The extra caster helps balance steering effort with oversized tires. The factory coilover shocks are kept and fitted with spacers, and the rear axle is re-centered with a track bar relocation bracket.

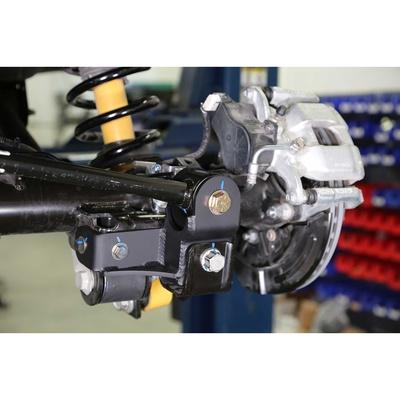

The track bar relocation bracket is needed because the rear axle moves off-center as the vehicle is raised. The bracket re-centers the axle under the vehicle so it tracks straight.

Key features

  • 3 inch lift for 35 inch tires
  • Uniball upper control arms with extra caster
  • Arms made from 1.25 inch OD 4130 chromoly steel
  • 1 inch FK stainless PTFE-lined Uniball bearings
  • Factory coilover shocks kept with spacers
  • Heavy-duty track bar relocation bracket

Tire and wheel fit

Taller tires change how a lift feels and how the steering loads the front end. When a 3 inch lift is paired with larger tires, rubbing at full steering lock and on suspension travel is the first thing to check. Trimming may be needed at the inner fender or liner. Check clearance at full lock and while the suspension compresses before going on trail.

The track bar relocation bracket works with the rear axle geometry, so it should be fitted with the rest of the kit rather than added later. Keep the brake lines and wiring clear of the axle during the install, and recheck rear axle alignment after the first drives. Look for wear in the uniball bearings and track bar mounts during regular inspection.

Specifications

Brand Fabtech
Part number K2383
Lift 3 inch
Lift height range 0 to 3.5 inches
Tire size 35 inch
Upper control arms 4130 chromoly, 1.25 inch OD
Bearings 1 inch FK stainless PTFE-lined Uniball
Rear lift method Spacer
Front shocks Reuse OEM
Rear shocks Reuse OEM
Shocks included No

Vehicle fitment

It is a direct fit for the 2021–2026 Ford Bronco in the Badlands, Base, Big Bend, Black Diamond, First Edition, Outer Banks and Wildtrak trims.

Bronco years outside 2021–2026, and Bronco Sport models, are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Fabtech lists tire and wheel options for this kit: 35/12.50R17 tires on 179 wheels with 4-1/2 inch backspacing, 35/12.50R18 tires on 189 wheels, and 35/12.50R20 tires on 209 wheels, each with minor trimming. Check the fit of your chosen tire and wheel before installing.

What’s included

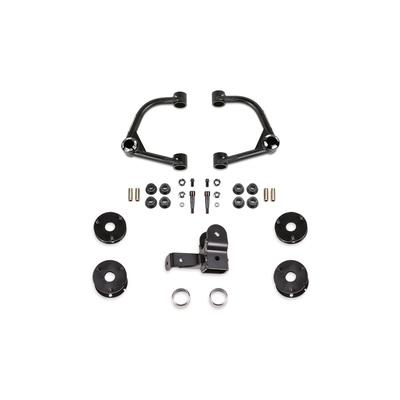

Uniball upper control arms, shock spacers and a track bar relocation bracket. The factory shocks are reused with spacers and are not included.

SKU: FABK2383 Categories: ,

Fitment

VehicleYearsTrims
Ford Bronco2021–2026Badlands, Base, Big Bend, Black Diamond, First Edition, Outer Banks, Wildtrak

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K2383 fit a 2021–2026 Ford Bronco?

Yes. It fits the 2021–2026 Bronco in the Badlands, Base, Big Bend, Black Diamond, First Edition, Outer Banks and Wildtrak trims. Confirm your year and trim before ordering.

Does the kit include shocks?

No. The factory coilover shocks are reused with spacers, and no shocks are included. Check the existing shocks against the new height before fitting the kit.

What tire size is the kit for?

It is designed to run 35 inch tall tires. Tire options are 35/12.50R17, 35/12.50R18 and 35/12.50R20, each with minor trimming.

Do I need an alignment after the kit goes on?

Yes. Changing the upper control arms shifts the front alignment, and the rear axle position moves with the lift. An alignment shop should set caster and toe after installation. Schedule it soon after the kit is fitted.
