Fabtech 5″ Crawler Lift Kit with Dirt Logic 2.25 Shocks – K4177DL

Fabtech

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 5-inch Crawler long arm lift kit for 2020–2026 Jeep Gladiator models
  • Dirt Logic 2.25 shocks at the front and rear
  • Full width front crossmember and 2-inch lower link arms
  • Adjustable rear links that use factory frame and axle brackets

Description

Overview

The Fabtech K4177DL is a 5-inch Crawler long arm lift kit with Dirt Logic 2.25 shocks for the 2020 to 2026 Jeep Gladiator. The Crawler is a long arm system designed to work without the fabrication and ongoing maintenance that some long arm setups need. The lift height range is 4 to 5.5 inches, and it covers 80th Anniversary, High Altitude, Launch Edition, Overland, Rubicon, Sport, Sport S, Willys and Willys Sport versions.

Front link arms mount to a full width crossmember that spans frame rail to frame rail. The crossmember sets the arms at their intended geometry and adds strength to the Gladiator frame for hard off-road use. The adjustable rear links use the factory frame and axle brackets, which keeps installation straightforward.

Key features

  • 5-inch long arm lift for the Gladiator
  • Full width front crossmember, frame rail to frame rail
  • Lower link arms of 2-inch OD, .313 wall tubing
  • Upper and lower link arms with Fabtech 5 Ton joints
  • Adjustable rear links on factory brackets
  • Dirt Logic 2.25 shocks at the front and rear
  • Rear coil springs are part of the lift.

Long arm geometry and driveline

Long arm suspensions keep the axle located with arms that run from the frame to the axle, so the axle travels in a controlled arc. Because the arms replace the factory control arm positions, the link geometry sets how the axle moves through its travel. Keeping the front crossmember and link arms square to the frame helps the suspension behave predictably on rough ground.

Driveline angles change when the axles move to a new height, and vibration often shows up as a first sign. Check U-joint angles after installation and watch for buzzing at highway speeds. Worn joints in the link arms and steering components are easier to replace before a long trip than after one.

  • Check driveline angles at both ends after installation
  • Inspect link arm joints for play during regular service
  • Look for rubbing at full suspension travel

Specifications

Brand Fabtech
Part number FABK4177DL
Lift kit size 5 inches
Lift height range 4 to 5.5 inches
Front shocks Dirt Logic 2.25
Rear shocks Dirt Logic 2.25
Rear lift component Coil spring
Lower link arms 2-inch OD, .313 wall tubing
Joints 5 Ton joints with a lifetime guarantee.
Fitment type Direct fit

Vehicle fitment

It fits 2020 to 2026 Jeep Gladiator models in the 80th Anniversary, High Altitude, Launch Edition, Overland, Rubicon, Sport, Sport S, Willys and Willys Sport versions.

Gladiator model years outside 2020 through 2026 are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A long arm kit replaces the factory control arm locations, so a wheel alignment and a driveline angle check belong after installation. The adjustable rear links and the front link arms should be checked for clearance at full travel once the kit is in.

What’s included

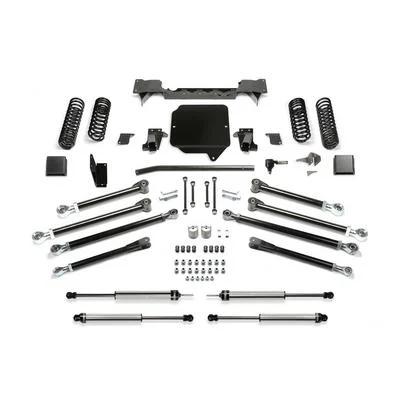

The kit includes the front link arms, the full width front crossmember, the adjustable rear links, Dirt Logic 2.25 shocks at both ends and the rear coil springs.

SKU: FABK4177DL Categories: ,

Fitment

VehicleYearsTrims
Jeep Gladiator2020–202680th Anniversary, High Altitude, Launch Edition, Overland, Rubicon, Sport, Sport S, Willys, Willys Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K4177DL fit a 2019 Jeep Gladiator?

No. The kit covers 2020 through 2026 Gladiator models only, so earlier years are not included. Confirm the model year before ordering.

How strong are the lower link arms?

The lower link arms are formed from 2-inch outside diameter tubing with a .313 wall, paired with 5 Ton joints. That combination is what carries the link loads through the long arm travel.

Are shocks included with this kit?

Yes. Dirt Logic 2.25 shocks are listed at both the front and the rear, so the kit includes a complete set of shocks for the lift.

How often should long arm joints be inspected?

Check the joints at each oil change or tire rotation, and after any hard off-road run. Look for play when the wheel is rocked by hand and for torn boots or dry grease. Replacing a loose joint early avoids damage to the link arm and the mounts.
