Overview
The Fabtech K2034DL is an 8-inch radius arm lift for the 2008–2010 Ford F-250 Super Duty and the 2008 Ford F-350 Super Duty. The front components are replacement coil springs, and Dirt Logic SS shocks are used at the rear. Confirm the front components before ordering.
Each radius arm is a full tubular structure with dimple die side plates, and an adjustable alignment cam at the axle lets the caster be set. The rear uses a block, U-bolt and add-a-leaf setup. The kit includes a trac bar relocation bracket, a pitman arm and sway bar drops. The kit is for non-dually models.
Key features
- 8-inch lift, range 7 inches and up
- Patented radius arms.
- Full tubular arm structure with dimple die side plates
- Adjustable alignment cam at the axle
- Trac bar relocation bracket and pitman arm
- Shocks included
Radius arm alignment and steering
Radius arms control the axle’s fore and aft position and carry braking and driving forces. A radius arm lift changes the position of the axle, so the alignment cam at the axle is useful for setting caster after installation.
Trac bar relocation and a pitman arm change the steering linkage. Because these parts are involved, check the steering for free play and binding after installation. Look at tie rod ends and the drag link for wear at the same time.
Sway bar drops change how the body leans in turns. Check the drop links and bushings for wear, and look for clunking on rough roads. A shop alignment after installation helps keep tire wear even.
- Set caster with the alignment cam
- Check the trac bar and pitman arm for free play
- Inspect sway bar drop links for wear
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K2034DL |
| UPC | 674866096318 |
| Lift height | 8 inches (range 7 inches and up) |
| Suspension type | Coilover radius arm |
| Front components | Replacement coil springs |
| Rear lift method | Block, U-bolts and add-a-leaf |
| Tire and wheel fit | 315/70R17 on 17×8 with 4 1/2-inch BS; 325/65R18 on 18×9.5 with 4 3/4-inch BS; minor trimming |
| Applies to | Non-dually models only |
Vehicle fitment
It fits the 2008–2010 Ford F-250 Super Duty and the 2008 Ford F-350 Super Duty.
It is for non-dually models only, so dually models do not fit. The F-350 is covered only for 2008. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
The kit comes with a trac bar relocation bracket, a pitman arm and sway bar drops, so the steering and sway bar parts change during installation. Fabtech lists 315/70R17 and 325/65R18 tires, with minor trimming.
What’s included

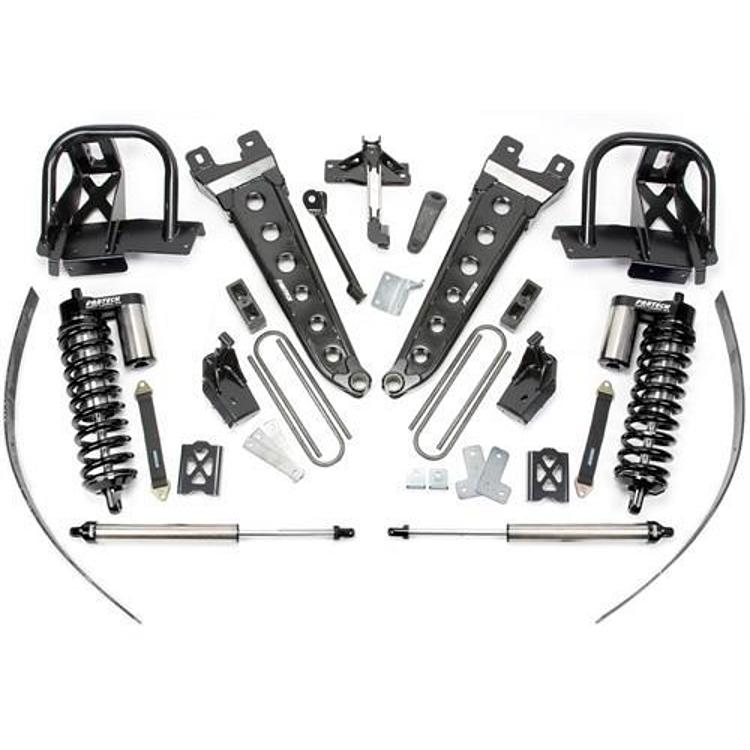

Patented radius arms, replacement front coil springs, the block and U-bolt kit with add-a-leaf, a trac bar relocation bracket, a pitman arm, sway bar drops and shocks.
