Overview

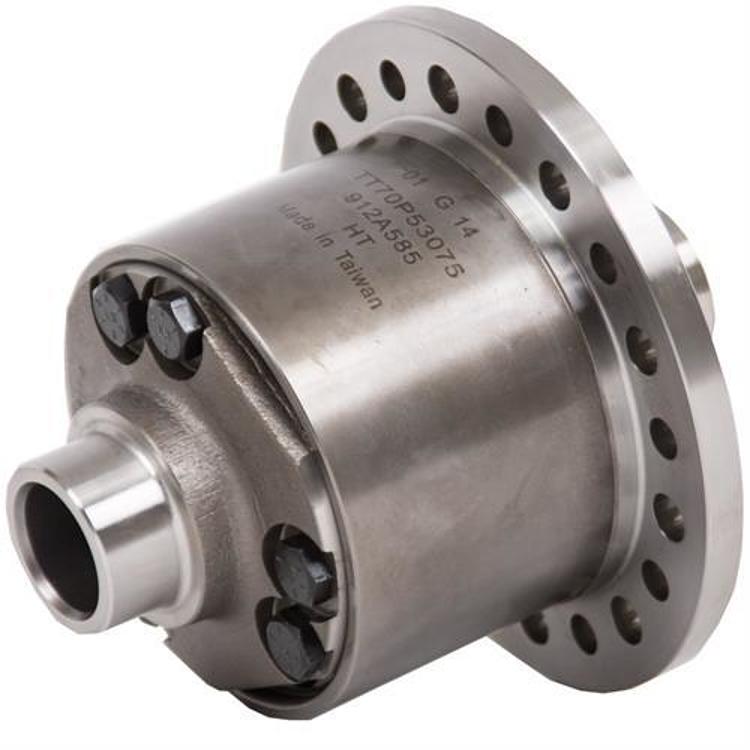

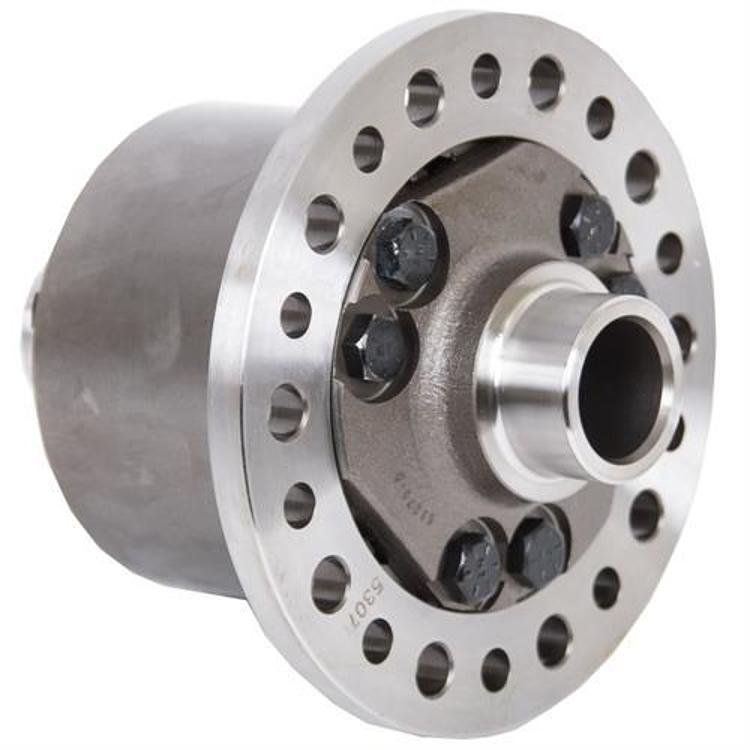

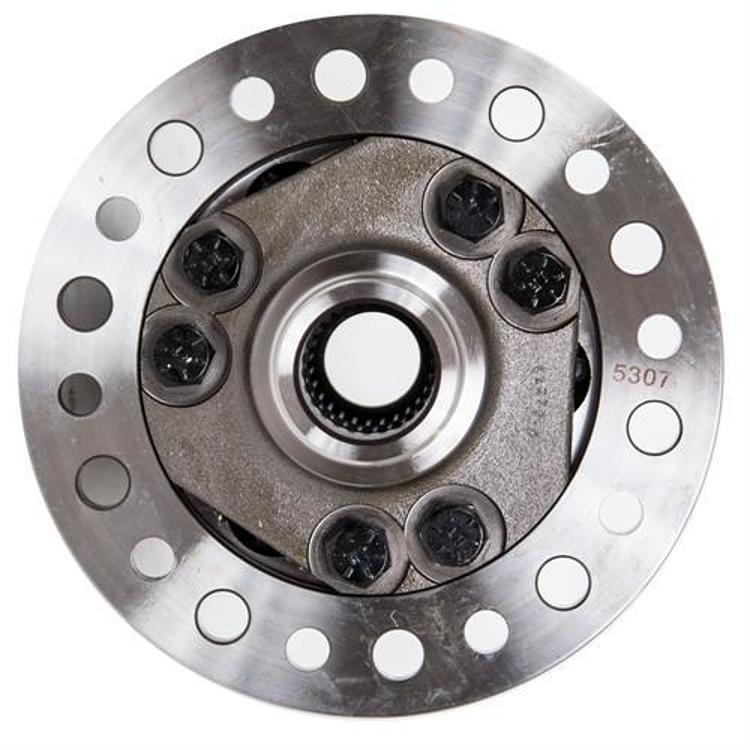

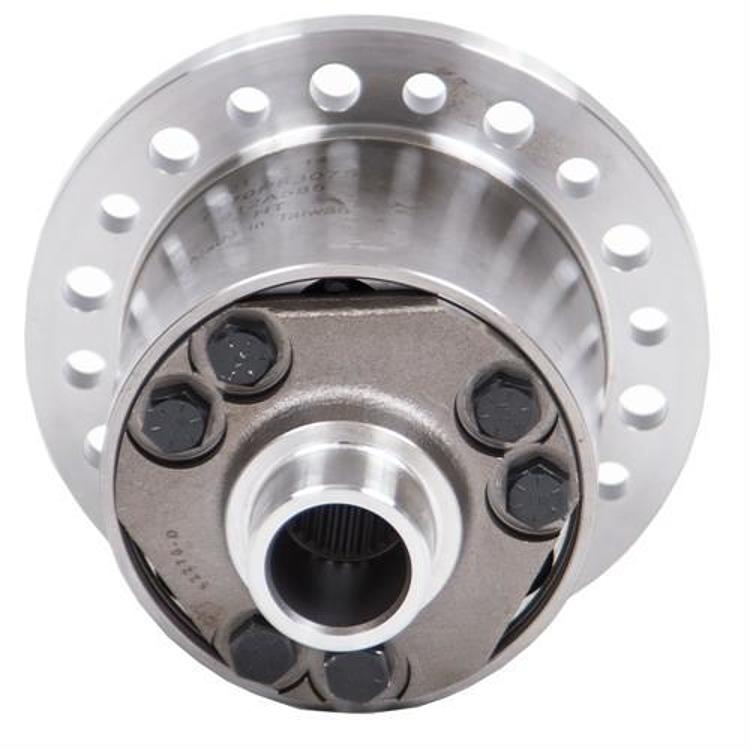

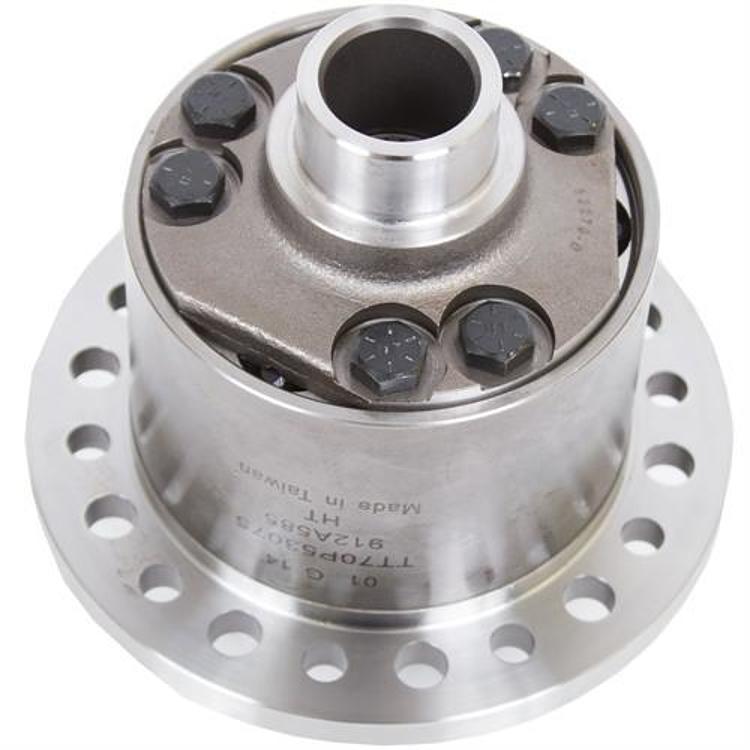

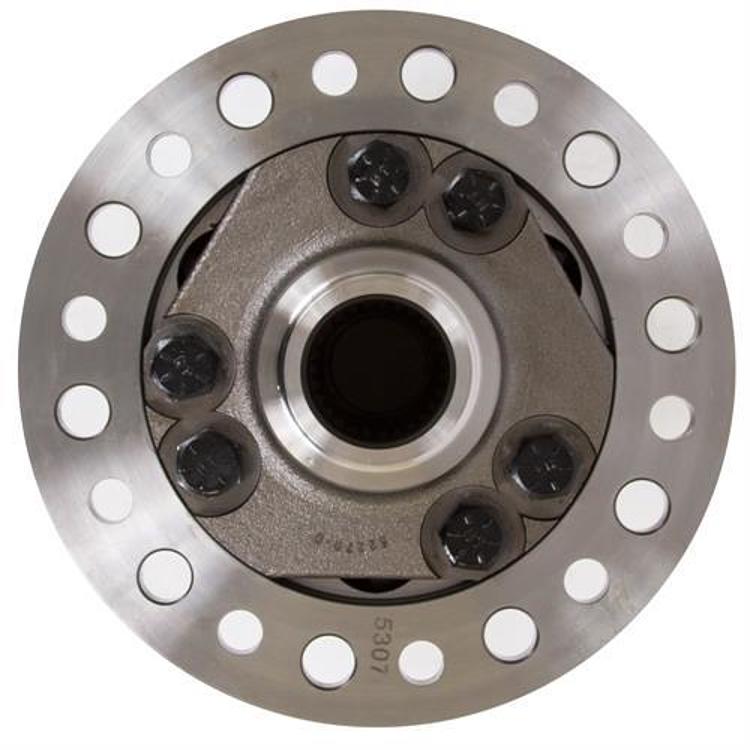

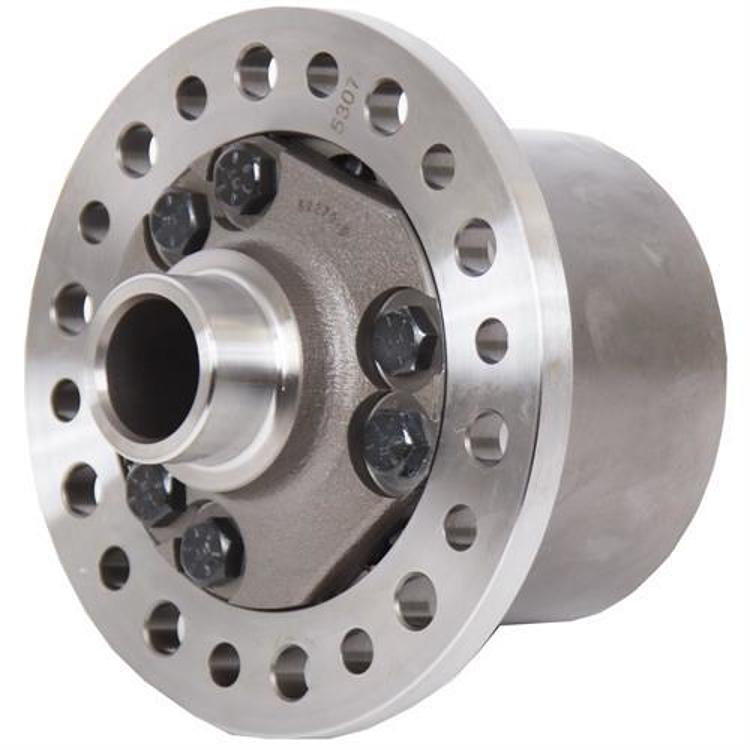

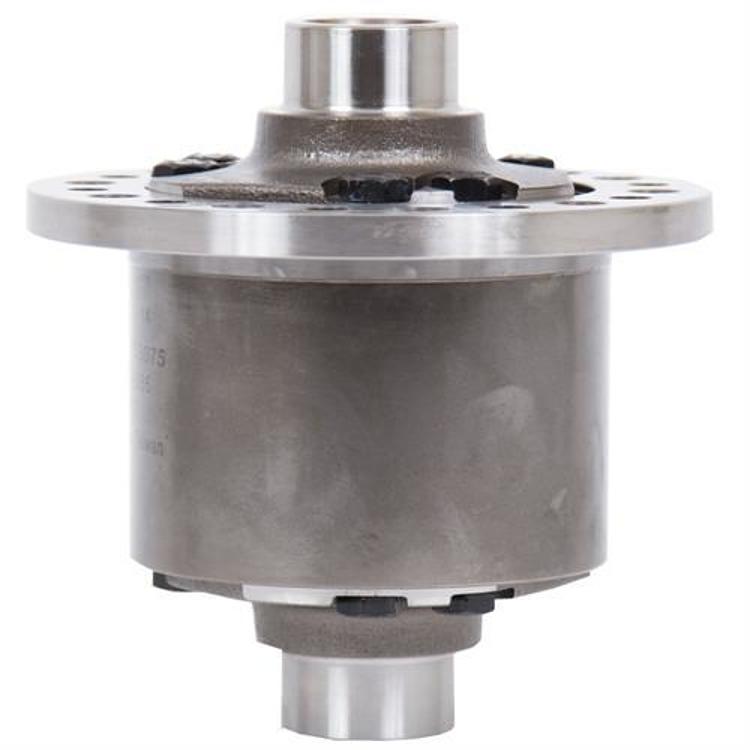

The Detroit Locker Dana 30 27 Spline 3.73 Up Front TrueTrac, part number 912A585, is a front limited slip differential for Dana 30 front axles with 27 splines and 3.73 Up gearing. The title sets the gear ratio, so match it to your current ring and pinion.
This unit uses the gear driven, clutchless TrueTrac design. Its axle type lists several Dana 30 variants, including reverse and standard versions, so confirm the variant on your axle before buying.
Key features
- Gear driven TrueTrac limited slip
- Clutchless design with no clutches to wear out
- Front axle location
- Dana 30 axle family
- 27 axle splines
- 3.73 Up gearing
Gear ratio and setup
The 3.73 Up ratio sets how the front axle turns relative to the drivetrain, so it has to match the ring and pinion that will be used. Changing the ratio changes final drive and how the vehicle pulls off the line, which makes the ratio a key check before any installation work.
A gear driven limited slip is a steady, low-maintenance choice for a front axle, with no clutch packs to replace. Still, the carrier needs correct pinion depth, bearing preload and backlash. Lubricant level and condition should be checked on a regular schedule, and leaks around the front seals should be fixed promptly.
Before ordering, measure the axle variant and count the splines on the axle shafts. Compare them with the Dana 30 variant named for this unit and confirm the gearing with your current carrier.
- Measure the variant before buying
- Match gearing to the existing ring and pinion
- Check front seals for leaks
Specifications
| Brand | Detroit Locker |
|---|---|
| Part number | 912A585 |
| UPC | 70000366663 |
| Differential type | Limited slip assembly (TrueTrac) |
| Design | All gear driven, clutchless |
| Axle location | Front |
| Axle manufacturer | Dana |
| Axle type | Dana 30 variants |
| Axle spline count | 27 splines |
| Gearing | 3.73 Up |
Vehicle fitment
This unit is for Dana 30 front axles with 27 splines and 3.73 Up gearing. No vehicle model or years are named, so confirm the axle details before ordering.
A Dana 30 unit with a different gear ratio is a different part. Confirm your vehicle’s year, model and trim before ordering.
Installation notes

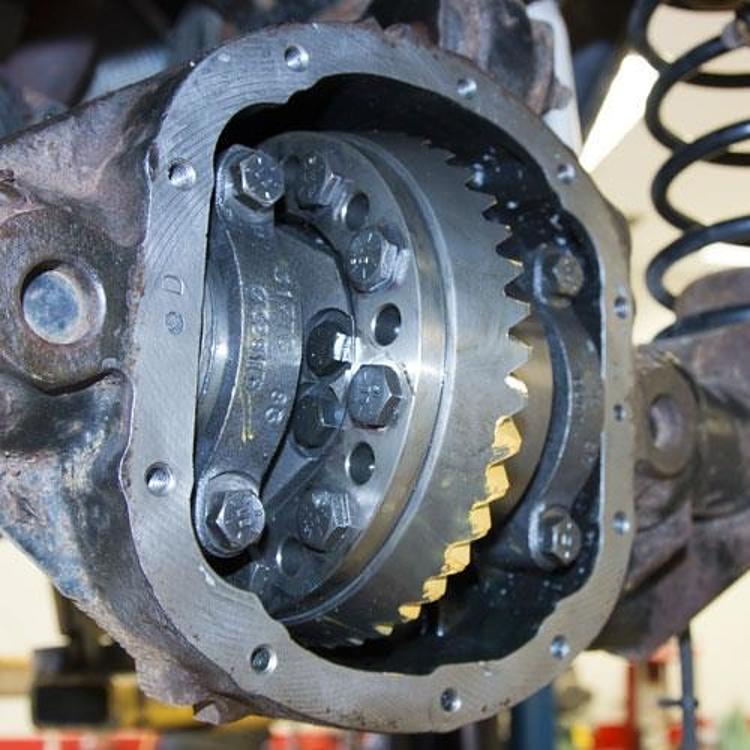

Front differential replacement requires axle shaft removal and ring and pinion setup. Have an axle shop check gear mesh and bearing preload for the 3.73 Up ratio.
What’s included
Check the package contents for hubs, axle shafts and fasteners before installing, since only the differential assembly is covered.
