Daystar ComfortRide 2 Inch Rear Leveling Kit – KC09124

Daystar

Shop Daystar Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 2 inch rear leveling kit for the Dana 60 rear axle
  • Blocks and bolts included, sold as a pair
  • Part number KC09124, UPC 618089001452

Description

Overview

The Daystar ComfortRide KC09124 is a 2 inch rear lift kit for vehicles with a Dana 60 rear axle. The kit is sold as a pair and includes blocks and bolts, so the rear ride height is raised by 2 inches.

Daystar builds its ComfortRide leveling kits to work within the factory suspension design. Daystar says nothing beyond the kit is needed for the install, and that any extra parts are named in the application description.

Key features

  • ComfortRide suspension system, a lift kit for the rear
  • 2 inch lift height
  • Sold as a pair, rear only
  • Includes blocks and bolts
  • Made for the Dana 60 rear axle only

Rear lift and axle checks

A rear block kit raises the back of the truck without changing the rear axle itself, but the parts around the axle still move to a new position. Brake lines, rear shock lengths and the driveshaft angle can all change with ride height, so inspect them before the first long drive. Heavier loads and towing put extra strain on the rear, so tire load ratings and rear suspension bushings deserve a regular check.

Polyurethane blocks are made to handle routine use, but they should still be looked at during service. Bolts can loosen over time, and blocks can crack if they are over-torqued or exposed to heat from the exhaust. Keep the original hardware for reference, and check that the blocks sit square on the axle seat before final tightening.

  • Check brake line length at full suspension travel
  • Inspect the rear driveshaft angle after installation
  • Recheck bolt torque after the first drives

Specifications

Brand Daystar
Part number KC09124
UPC 618089001452
Lift height 2 inches
Position Rear
Quantity Pair
Rear axle Dana 60
Included hardware Blocks and bolts

Daystar says its leveling and lift kits work within the factory suspension design, and that everything needed is in the kit. Where extra items are required, such as longer shocks, the application description names them.

Daystar has developed more than 300 applications since it began making leveling kits in 1995. Torsion bar vehicles need a different method with re-indexed forged torsion keys, so this rear block kit is not a torsion key product.

The kit is black and made of high density progressive polyurethane, and it raises the rear 2 inches. The polyurethane design is intended to keep ride quality and load-carrying capacity in place.

This is a rear-only lift, and it is a 2 inch rear leveling kit.

Vehicle fitment

It is built for the Dana 60 rear axle only. Confirm your vehicle has a Dana 60 rear before ordering.

Installation notes

Confirm the Dana 60 rear axle before ordering, since a different rear axle will not match the blocks. Check the rear shocks and brake lines for length after the lift is installed.

What’s included

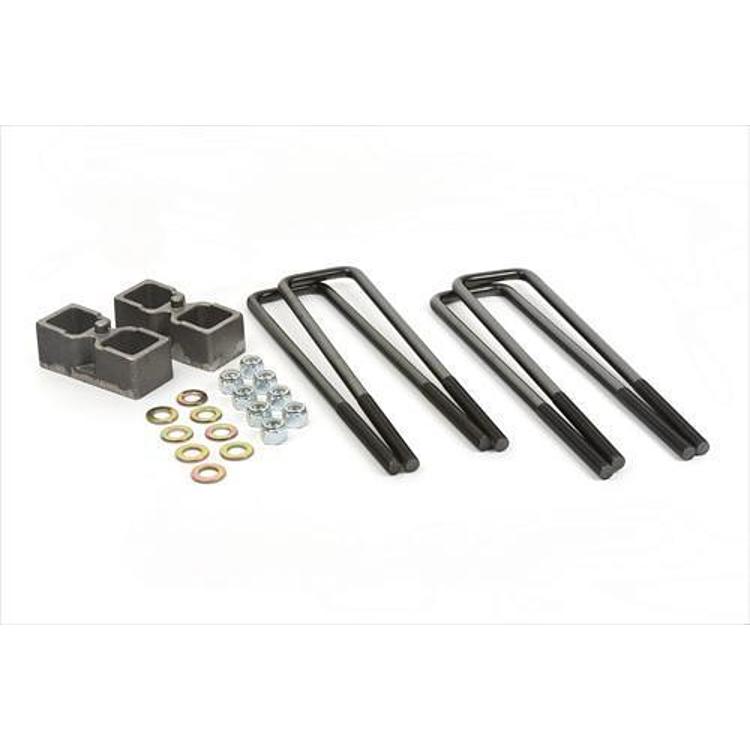

Included: a pair of rear lift blocks and the bolts that go with them.

SKU: DAYKC09124 Category:

Specification

Shipping weight 20.00 lbs
Package dimensions 16.00 × 10.00 × 10.00 in
brands

Questions & Answers

Which rear axle does this 2 inch kit fit?

It is made for the Dana 60 rear axle only. Confirm that your vehicle has a Dana 60 rear before ordering, since other rear axles will not match the blocks.

How much lift does the KC09124 add?

It adds 2 inches of lift at the rear. The kit is sold as a pair, with blocks and bolts included, so both sides are raised.

Does the kit include everything needed?

The kit includes the blocks and bolts, and nothing beyond the kit is needed for installation. Confirm the rear shock and brake line lengths for the new height.

Will a rear block kit change how the truck handles towing?

Rear blocks change the rear ride height, which can alter how the load sits and how the truck handles on the road. Check the rear tire clearance and load rating before towing with a raised rear.

How do I know the blocks need inspection?

Look for bolts that have loosened, cracks in the polyurethane, or uneven rear tire wear. Recheck bolt torque after the first drives and inspect the blocks at regular service intervals.
