Overview
The Daystar DAYPAPLS100 is a 5-inch Premium Lift System, also sold as PLS 100 by Performance Accessories, for 1995 to 1998 Chevrolet and GMC C1500, C2500, K1500 and K2500 pickups. It is a body-lift and leveling kit that raises the vehicle 5 inches and allows tires up to 33 inches in diameter. It also fits 1999 Chevrolet C2500 models.
The kit is built around forged torsion bar keys, high pressure fiberglass reinforced nylon lift blocks and a set of 3/16-inch thick bumper relocation brackets, laser cut and powder coated. A CNC machined, zinc plated steering extension and extension brackets accommodate the higher body, and urethane wheel well extensions called Gap Guards cover the gap between the body and frame. Daystar lists installation at 8 to 9 hours.
Key features
- Raises the vehicle 5 inches for tires up to 33 inches in diameter
- Forged torsion bar keys for the front lift
- High pressure fiberglass reinforced nylon lift blocks
- 3/16-inch thick, laser cut and powder coated bumper relocation brackets
- CNC machined and zinc plated steering extension
- Urethane Gap Guard wheel well extensions
Setting the front height
On a body-lift system with forged torsion bar keys, front height is set by adjusting the keys rather than swapping springs. The final height depends on how the keys are turned, so measure both sides evenly before tightening anything. Once the front is set, check the steering extension and brackets for clearance at full lock, since the raised body changes where the linkage sits.
Older trucks often show wear in the front end, such as worn ball joints, tie rod ends and bushings. A lift is a good time to inspect these, because the new geometry places more load on them. Brake lines and wiring that run to the raised body should be checked for stretch, and the wheel well extensions should be inspected for cracks after rough trail use.
Specifications
| Brand | Daystar |
|---|---|
| Part number | DAYPAPLS100 |
| Lift height | 5 inches |
| Maximum tire diameter | 33 inches |
| Bumper bracket thickness | 3/16 inch |
| Installation time | 8 to 9 hours |
| Fitment type | Direct fit |
Vehicle fitment
It fits 1995 to 1998 Chevrolet C1500, K1500 and K2500 models and 1995 to 1998 GMC C1500, C2500, K1500 and K2500 models, plus 1995 to 1999 Chevrolet C2500 models, across Base, Cheyenne, Silverado, WT, SLE and SLT versions.
1999 Chevrolet and GMC 1500 models are not on the list, and only the Chevrolet C2500 appears for 1999. Models from 1994 and earlier are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The forged torsion bar keys set the front height, so the final front height depends on how the keys are adjusted. The steering extension changes steering geometry, so check the alignment after installation. Daystar lists 8 to 9 hours for the install.
What’s included

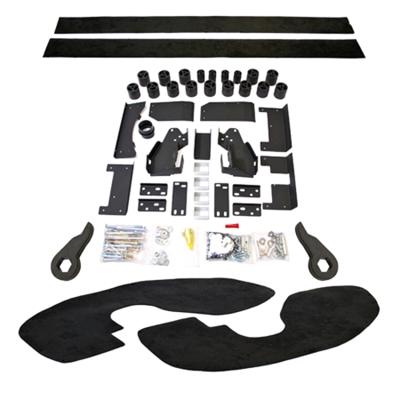

The kit includes forged torsion bar keys, high pressure fiberglass reinforced nylon lift blocks, 3/16-inch laser cut and powder coated bumper relocation brackets, a CNC machined and zinc plated steering extension, high strength hardware, extension brackets and urethane wheel well extensions (Gap Guards).
