Overview
The Pro Comp K4152BP is a 6-inch Stage II lift kit with Pro Runner shocks for the 2008–2010 Ford F-250 and F-350 Super Duty. It combines front coil springs and radius arms with a Pitman arm steering correction and a block, U-bolt and add-a-leaf rear lift.
Pro Runner shocks are fitted at both the front and rear. The radius arm and rear lift hardware are the same as the ES9000 version of this kit.
Key features
- 6-inch lift height, Stage II
- Front coil springs
- Radius arms
- Pitman arm steering correction
- Bump stop extensions and front sway bar links
- Block, U-bolt and add-a-leaf rear lift
Maintaining the front and rear
Coil spring and radius arm setups rely on bushings and joints that carry steering and braking loads, so regular checks keep the front stable. Look for cracked rubber, grease leaks, and any movement in the joints when the wheel is rocked. Replacing a worn joint early is usually simpler than correcting uneven tire wear later.
Rear add-a-leaf and block lift hardware should also be checked after the first few trips. U-bolt nuts can loosen as the truck settles, so torque them again at the first service. Pro Runner shocks should be inspected for leaks at the same time, since the front and rear both work harder once the truck is raised.
- Check radius arm bushings for cracked rubber
- Re-torque U-bolt nuts after early trips
- Inspect Pro Runner shocks for leaks at service
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4152BP |
| UPC | 70000637853 |
| Lift height | 6 inch (lift height range 5 to 6.99 inches) |
| Lift kit stage | Stage 2 |
| Suspension type | Radius arm or radius arm brackets |
| Front lift | Coil springs |
| Steering correction | Pitman arm |
| Rear lift | Block, U-bolts and add-a-leaf |
| Front shocks | Pro Runner |
Vehicle fitment
Coverage runs to the 2008 through 2010 Super Duty F-250 and F-350 models, including the Cabela’s, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL and XLT versions.
Only the 2008 through 2010 Super Duty model years are on the list, so the 2011 and newer trucks are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The radius arms and Pitman arm change the front geometry, so the alignment and driveline angles should be checked after the kit is installed.
What’s included

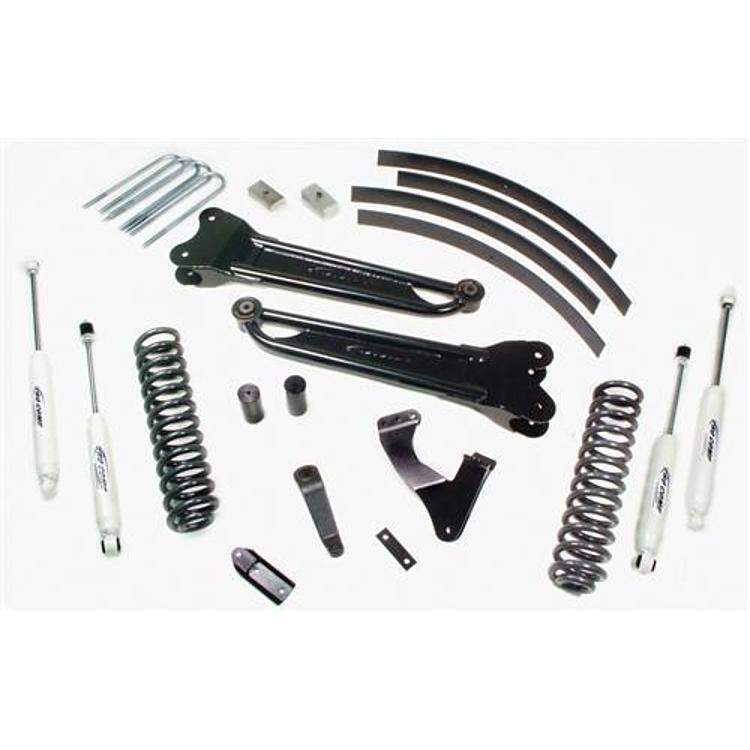

The kit includes front coil springs, radius arms, the Pitman arm steering correction, bump stop extensions, front sway bar links, the block, U-bolt and add-a-leaf rear lift, and Pro Runner shocks.
