Overview

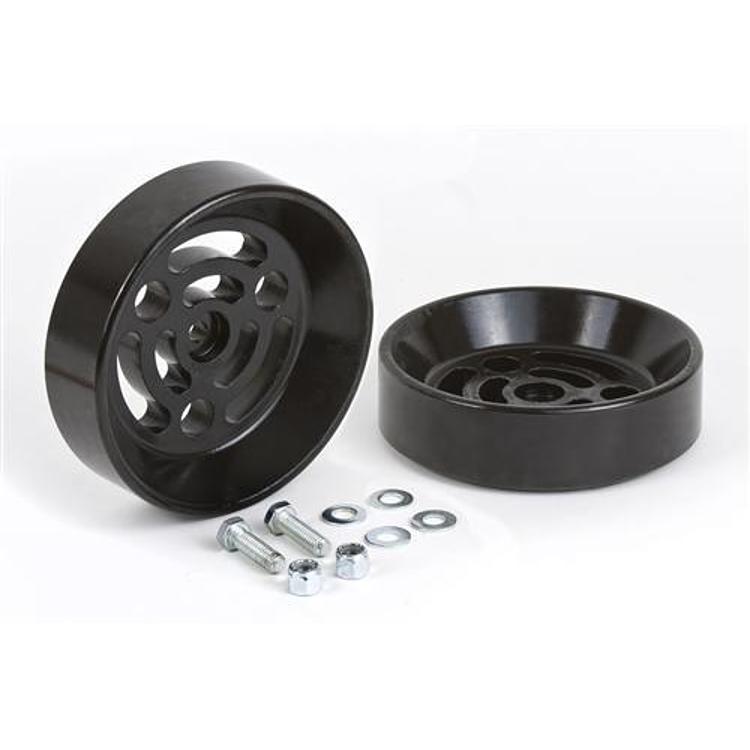

The Daystar air bag cradle, part number KU09140BK, is a black polyurethane cradle for convoluted air bags 6 in. in diameter. It lets an air bag equipped suspension fully articulate and be put on a lift without tearing the air bags.

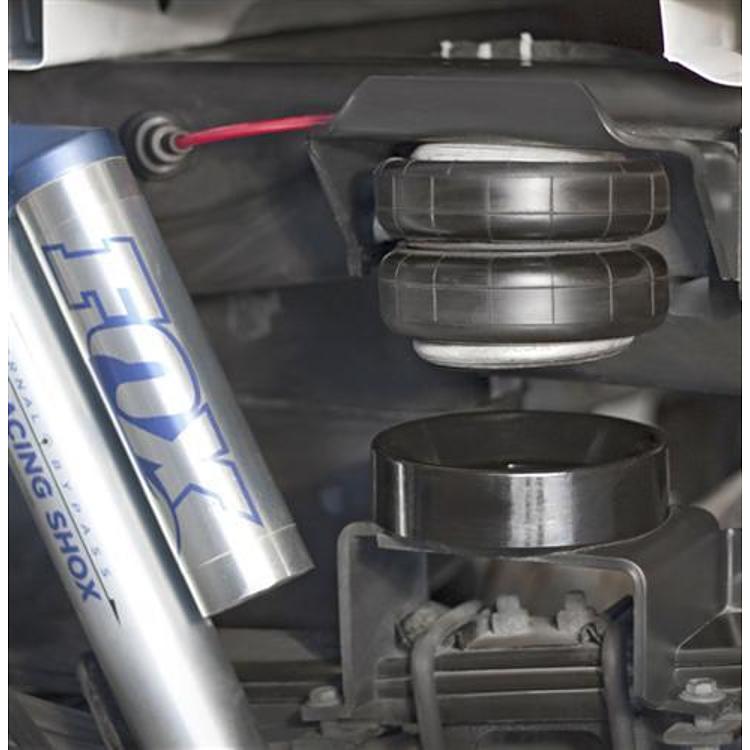

The cradle lets the air bag separate from the lower mount when the suspension drops and returns the bag to the cup at normal ride height. It is a universal fit, so match the air bag diameter before ordering.
Key features
- Holds convoluted air bags 6 in. in diameter
- Lets the air bag separate from the lower mount when the suspension drops
- Returns the bag to the cup at normal ride height
- Black polyurethane construction
How air bags and cradles wear
Air bags that cycle through articulation wear at the lower mount where the bag rubs or rolls over an edge. Repeated flexing can crack the bag wall, and a bag that is pinched or sitting off the cup will fail sooner. A cradle that holds the bag in the right position reduces that rubbing, so check the cradle surface for cracks or hard edges that could cut the bag.
Inspect the bag, cradle and lower mount at each service interval, and look for dry rot, bulging or uneven sag. Keep the lines and fittings free of debris before reconnecting them. Replacing a bag is a good time to check the mounting hardware and the air line routing for chafing.
- Cracks or hard edges on the cradle
- Bag rubbing at the lower mount
- Dry rot or bulging in the bag wall
- Chafing on nearby air lines
Specifications
| Brand | Daystar |
|---|---|
| Part number | KU09140BK |
| UPC | 618089004040 |
| Bag size | 6 in. diameter convoluted air bags |
| Material | Polyurethane |
| Color | Black |
Vehicle fitment
No vehicle year, make, model or trim is identified. The cradle is a universal fit for air bag equipped suspension on trucks.
Confirm your vehicle’s year, model and trim before ordering. Measure your air bags, since the cradle is sized by bag diameter.
Installation notes
Measure the air bag diameter before fitting. The cradle is made for 6 in. convoluted bags.
What’s included
The cradle itself is the item covered here. Check the package contents against your installation before starting.
Not included: Air bags, which the cradle is made to hold.
