Overview

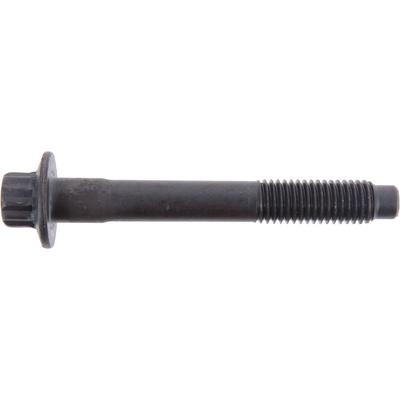

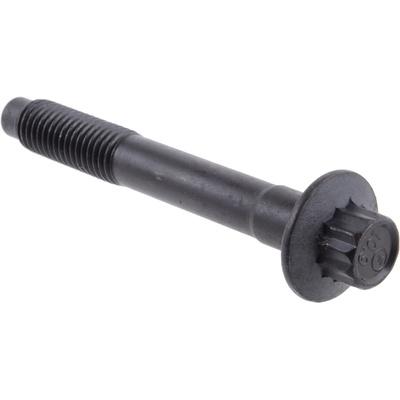

The Dana Spicer 41027 is a Grade 10.9 steering knuckle bolt for the Dana 30 front axle. It fits the 1996–2006 Jeep Cherokee, Grand Cherokee and Wrangler models. The bolt has an M12 x 1.75 thread and a 12-point head.
It is a genuine Spicer part. The head size is 14mm, the length under the head is 3.300 inches and the overall length is 3.640 inches.
Key features
- Front steering knuckle bolt for a Dana 30 axle
- Thread size M12 x 1.75
- 12-point head, 14mm head size
- Grade 10.9
- 3.300 inch length under head
- 3.640 inch overall length
Knuckle bolt care
A steering knuckle bolt holds the knuckle and the axle assembly together, so it carries steering and braking loads. Inspect the threads, head and shank for stretching, corrosion or cracks whenever the knuckle is removed. Bolts that show damage should be replaced rather than reused, since fatigue can build up in a stressed fastener.
Knuckle bolts are usually replaced in matched sets so that the clamp load is even across the joint. Clean the threads and the bolt holes before reassembly, and use the thread preparation the service procedure calls for. Check the steering components and wheel bearings when the knuckle is opened, since they are often reached in the same job.
- Inspect the head for cracks or twisting
- Clean threads and holes before reassembly
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 41027 |
| Part type | Steering knuckle bolt |
| Axle | Dana 30 |
| Position | Front |
| Thread size | M12 x 1.75 |
| Head style | 12-point |
| Head size | 14mm |
| Grade | 10.9 |
| Length under head | 3.300 inch |
| Overall length | 3.640 inch |
Vehicle fitment
It fits the 2000–2001 Jeep Cherokee, the 1996–1998 and 1999–2004 Jeep Grand Cherokee, and the 1997–2006 Jeep Wrangler.
The bolt fits Dana 30 front axles, so Jeeps with a different front axle are not covered by this part number. Confirm your vehicle’s year, model and trim before ordering.
