Dana Spicer Steering Knuckle Bolt – 36326-1

Dana Spicer

Shop Jeep CJ5 Steering Knuckles on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1974–1980 Jeep CJ5, CJ6, CJ7, J10 and J20, front
  • Thread size .375-24, Grade 8, self-locking
  • 1.330 inch under head, 1.550 inch overall

Description

Overview

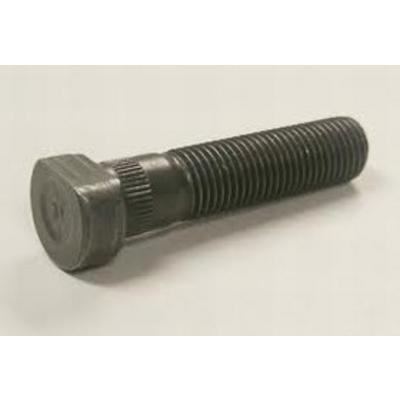

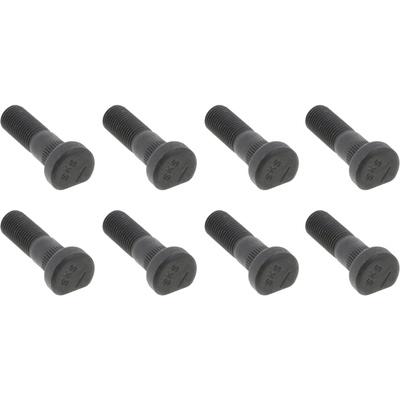

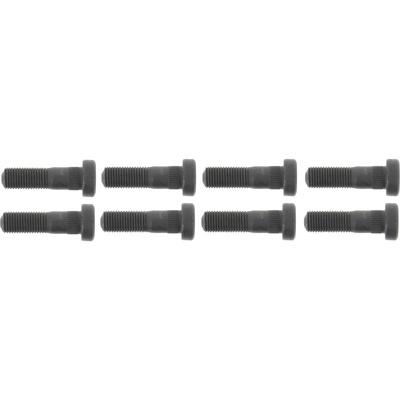

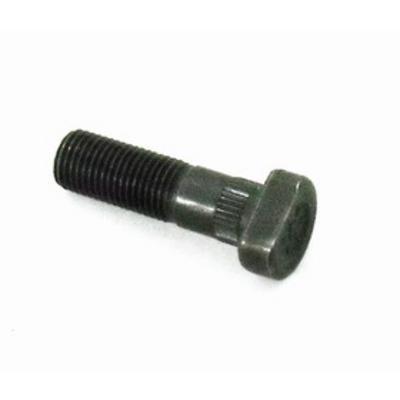

The Dana Spicer 36326-1 is a Grade 8 self-locking steering knuckle bolt for the front axle of 1974–1980 Jeep CJ5, CJ6, CJ7, J10 and J20 models. The bolt has a .375-24 thread, a round head and a self-locking design.

It is genuine Spicer and made in the U.S.A.

Key features

  • Front steering knuckle bolt
  • Thread size .375-24
  • Round head, 0.625 inch head size
  • Self-locking
  • Grade 8
  • 1.330 inch length under head, 1.550 inch overall

Why knuckle bolts matter

A steering knuckle bolt holds the knuckle to the axle assembly, so it carries steering and braking loads on every turn. Because it sits in the steering path, a bolt that stretches, corrodes or loosens can change steering feel and create play at the front wheel. Looking after these bolts is a small job with a large effect on safety.

Torque and thread condition are the main concerns. Clean threads and the bolt hole before assembly, use a torque wrench, and tighten to the value for your vehicle’s service procedure. Replace any bolt that shows stretch, thread damage or a rounded head. Check the bolts again after the first drives and after off-road use.

  • Inspect threads and head for damage at each service
  • Use a new bolt if the old one shows stretch
  • Recheck torque after the first drives

Specifications

Brand Dana Spicer
Part number 36326-1
Part type Steering knuckle bolt
Position Front
Thread size .375-24
Head style Round
Head size 0.625 inch
Self-locking Yes
Grade 8
Length under head 1.330 inch
Overall length 1.550 inch
Made in U.S.A.

Vehicle fitment

It fits the 1974–1980 Jeep CJ5, the 1974–1975 CJ6, the 1976–1980 CJ7, and the 1974–1980 Jeep J10 and J20 at the front axle.

Later CJ models and other Dana axle bolts are not covered by this part number. Confirm your vehicle’s year, model and trim before ordering.

Fitment

VehicleYearsTrims
Jeep CJ51974–1980Base, Golden Eagle, Laredo, Renegade
Jeep CJ61974–1975Base
Jeep CJ71976–1980Base, Golden Eagle, Golden Hawk, Laredo, Renegade
Jeep J101974–1980Base
Jeep J201974–1980Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What is the thread size of Dana Spicer 36326-1?

The thread size is .375-24. The bolt has a round head with a 0.625 inch head size and is self-locking, so it holds its torque without a separate lock nut.

What grade is the Dana Spicer 36326-1 bolt?

The bolt is Grade 8. Its length under the head is 1.330 inch and its overall length is 1.550 inch.

Which Jeeps use the Dana Spicer 36326-1?

It fits the 1974–1980 CJ5, the 1974–1975 CJ6, the 1976–1980 CJ7 and the 1974–1980 J10 and J20, at the front.

Can a self-locking knuckle bolt be reused?

It is best to replace it when removed, since the locking feature weakens after use. Inspect the threads and head for damage first. Clean the threads before fitting the new bolt.

How do I tell if a knuckle bolt is worn?

Look for stretched or damaged threads, a loose knuckle or play at the steering arm, and any sign of elongation in the bolt hole. Check the bolts at each service and after trail use. Replace the bolt if it shows any of these signs.
