Overview

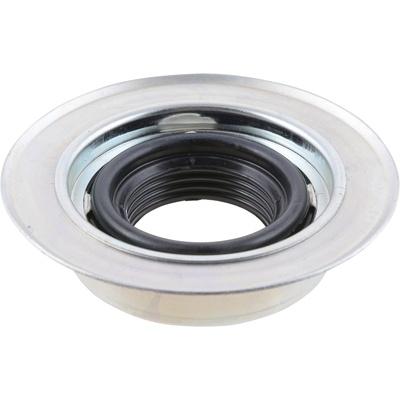

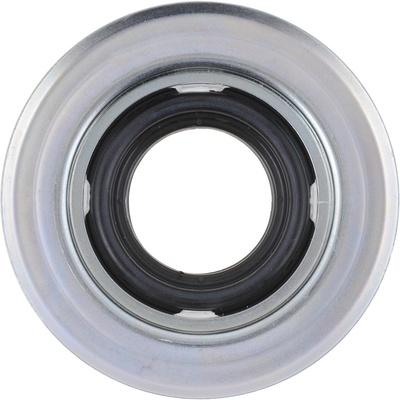

The Dana Spicer D/S2014835 is a front inner drive axle seal for Dana 60 axles. It replaces OE part numbers AC3Z-1S175-A and AC34-1175-AB and measures 1.420 in inside diameter and 3.760 in outside diameter.
The fitment covers Ford F-250 Super Duty trucks from 2002 to 2013, Ford F-350 trucks from 1978 to 1997 and Ford F-350 Super Duty trucks from 1999 to 2014.
Key features
- Front inner position for Dana 60 axles
- Replaces OE numbers AC3Z-1S175-A and AC34-1175-AB
- Inside diameter 1.420 in, outside diameter 3.760 in
- Dana Spicer part number D/S2014835 for Ford trucks
Seal care and axle inspection
An inner axle seal keeps lubricant in the axle housing and keeps water and grit out of the bearing area. Leaks often show up as dark grease or gear oil on the inside of the wheel or on the brake components, so check the area around the seal when the wheel is off.
When replacing the seal, inspect the axle shaft surface for grooves or wear where the lip rides. Clean the housing bore and remove any old sealant before pressing in the new seal. Confirm the seal sits square in its bore, and fill the axle to the correct lubricant level once the work is complete.
- Check for leaks around the inner seal area
- Inspect the shaft surface under the lip
- Clean the housing bore before installing
- Recheck lubricant level after the repair
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | D/S2014835 |
| Position | Front inner |
| Axle | Dana 60 |
| Replaces OE part numbers | AC3Z-1S175-A, AC34-1175-AB |
| Inside diameter | 1.420 in |
| Outside diameter | 3.760 in |
Vehicle fitment
- Ford F-250 Super Duty, 2002–2013
- Ford F-350, 1978–1997
- Ford F-350 Super Duty, 1999–2014
Ford F-150 and other Ford models are not on this list, and the years above are the only ones covered. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One seal is included.
