Dana Spicer Differential End Yoke – 10025494

Dana Spicer

Shop Ford E-350 Drive Shaft Slip Yokes on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dana Spicer differential end yoke for Dana 60 and Dana 70 axles
  • 29 splines, 1350 series, U-bolt style yoke
  • Hub diameter 1.500 inches, centerline to end hub 3.000 inches
  • Fits full-size vans and trucks listed from 1982 through 2015

Description

Overview

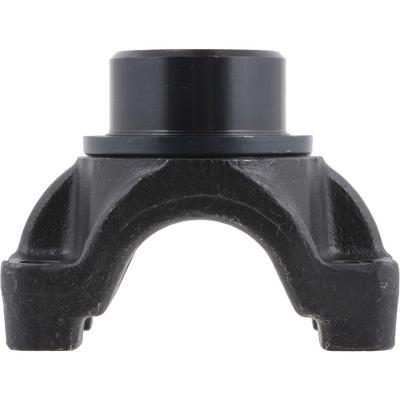

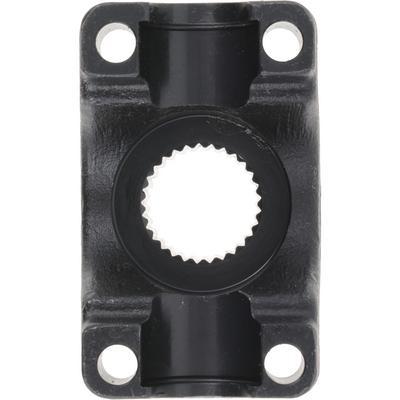

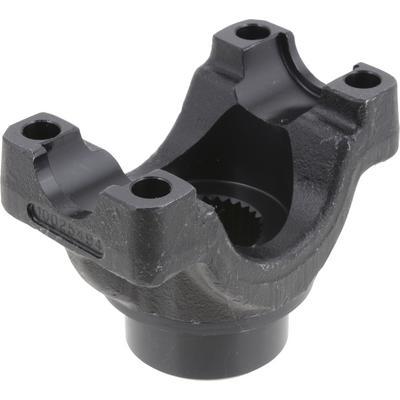

The Dana Spicer 10025494 is a differential end yoke for Dana 60 and Dana 70 axles, sized for the 1350 series drive shaft. It is a U-bolt style yoke with 29 splines and a 1.500 inch hub diameter.

It fits full-size vans and pickups from 1982 through 2015, depending on the model. Genuine Spicer parts are designed, engineered, tested and manufactured as a set, and the yoke is built to the same process as the rest of the Spicer driveline line.

Key features

  • 29 spline differential end yoke
  • 1350 series U-joint size
  • U-bolt style yoke
  • Rear differential position

Before you install

An end yoke connects the drive shaft to the differential pinion and carries the torque load through the joint. Its splines, hub and seal surface all need to be in good condition, since pitting on the splines or a worn sealing surface can cause vibration or leaks. Check the yoke for wear whenever the pinion nut is removed.

Replacing the yoke usually involves removing the pinion nut and pulling the yoke, so a new pinion seal is commonly installed at the same time. The pinion nut should be tightened to the correct value for the axle, and the drive shaft should be checked for run-out after assembly. Matching the yoke spline count and series to the drive shaft avoids a binding fit.

  • Inspect spline wear before reuse
  • Replace the pinion seal during the job
  • Confirm the drive shaft series matches the yoke
  • Check the driveline for vibration after installation

Specifications

Brand Dana Spicer
Part number D/S10025494
Axle type Dana 60 and Dana 70
Axle location Rear
Position Rear differential
Spline count 29 splines
U-joint series 1350
Yoke style U-bolt style
Hub diameter 1.500 inches
Centerline to end hub 3.000 inches
Length through hole 1.187 inches
Outside diameter of spline 1.276 inches
Fitment type Direct fit

Vehicle fitment

It fits the Chevrolet Express 2500 and 3500 vans from 2003 to 2013 and 2003 to 2010, the Chevrolet G30, K30 and K3500 trucks from 1982 to 1991, the Dodge B250, B350, B2500 and B3500 vans, the D250 and D350 pickups, the Ram 2500 and 3500 from 1994 to 2003, the Ford E-series and Super Duty trucks, and the GMC Savana and G3500 vans and K3500 trucks.

Fitment in the list runs from the early 1980s through 2015, and several entries are older van and truck generations, so the yoke is not for every Dana 60 or Dana 70 setup. Confirm your vehicle’s year, model and trim before ordering.

What’s included

The differential end yoke.

Fitment

VehicleYearsTrims
Chevrolet Express 25002003–2013Base, LS, LT
Chevrolet Express 35002003–2010Base, LS, LT
Chevrolet G301982–1991Beauville, Bonaventure, Chevy Van, Hi-Cube, Sportvan
Chevrolet K301982–1986Custom, Scottsdale, Silverado
Chevrolet K35001988–1991Cheyenne, Scottsdale, Silverado
Dodge B2501982–1994Base
Dodge B25001995–1998Base
Dodge B3501982–1994Base
Dodge B35001995–1998Base
Dodge D2501982–1993Base
Dodge D3501982–1993Base
Dodge D501982Custom, Royal, Sport
Dodge Ram 15002004–2006SRT-10
Dodge Ram 25001994–2003Base, Van Base
Dodge Ram 35001994–2003Base, Van Base
Dodge W2501982–1993Base
Dodge W3501982–1993Base
Ford E-2501982–2011Base, Econoline Base, Econoline Chateau, Econoline Club Wagon Base, Econoline Club Wagon Chateau, Econoline Club Wagon Custom, Econoline Club Wagon XL, Econoline Club Wagon XLT, Econoline Custom, Econoline XL
Ford E-3501982–2005Club Wagon Chateau, Club Wagon XL, Club Wagon XLT, Econoline Base, Econoline Chateau, Econoline Club Wagon Base, Econoline Club Wagon Chateau, Econoline Club Wagon Chateau HD, Econoline Club Wagon Custom, Econoline Club Wagon Custom HD, Econoline Club Wagon XL, Econoline Club Wagon XL HD, Econoline Club Wagon XLT, Econoline Club Wagon XLT HD, Econoline Custom, Econoline XL
Ford E-350 Super Duty2003–2011Base, Chateau, XL, XLT
Ford F-2501982–1986Base, Custom, XL, XLS, XLT, XLT Lariat
Ford F-250 Super Duty2002–2015Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, Platinum, XL, XLT
Ford F-3501982–1997Base, Custom, Eddie Bauer, Special, XL, XLS, XLT, XLT Lariat
Ford F-350 Super Duty1999–2015Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, Platinum, XL, XLT
GMC G35001982–1991Magnavan, Rally, Rally Camper Special, Rally Custom, Rally STX, Vandura, Vandura Special
GMC K35001982–1986, 1988–1991Base, High Sierra, Sie ra Classic, Sierra, Sierra Classic, Sierra SLE, Sierra SLX
GMC Savana 25002003–2013Base, LS, LT, SLE
GMC Savana 35002003–2010Base, LS, LT, SLE

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Dana Spicer 10025494 fit a 2005 Ford E-350?

Yes. It fits the 1982–2005 Ford E-350 Econoline models and the 2003–2011 Ford E-350 Super Duty, so a 2005 E-350 is covered. Confirm your axle is a Dana 60 or Dana 70 before ordering.

What spline count and yoke style does this use?

It has 29 splines and a U-bolt style yoke, and it is matched to the 1350 series drive shaft. The hub diameter is 1.500 inches.

Is this yoke made for the 1350 series driveline?

Yes. It has a 1350 series U-joint series and a 29 spline count, so it works with a 1350 series drive shaft.

Should the pinion seal be replaced when the yoke is changed?

Usually, yes. The seal rides on the yoke surface, so a worn seal can leak once the yoke is reinstalled. Replacing it while the yoke is off is the simplest time to do so.

What wears out on a differential end yoke?

The splines, the seal surface and the hub are the usual wear points. Pitting, grooves or a rough seal surface are signs the yoke should be replaced.
