Overview

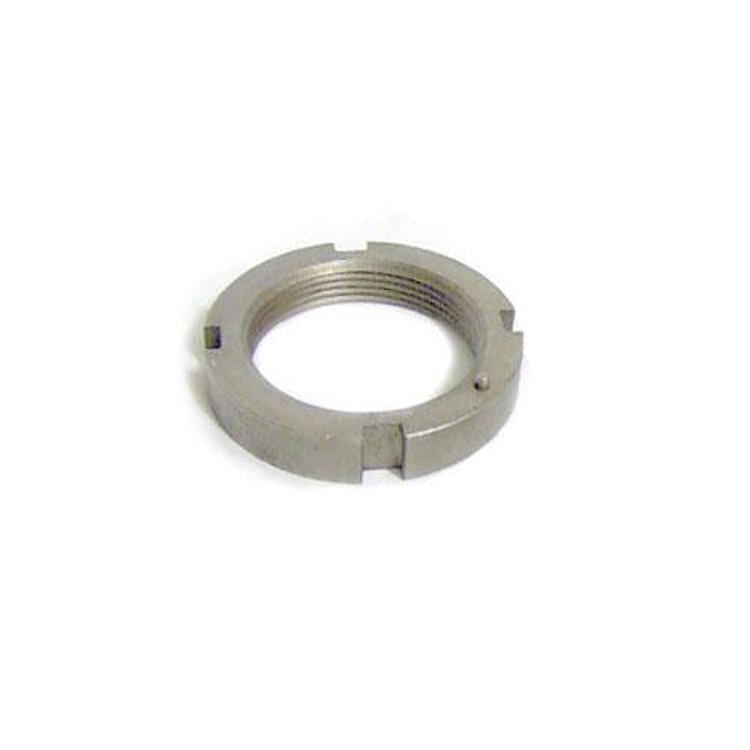

The Dana Spicer Dana 44 Spindle Nut With Pin, part 21588X, is a single inner spindle nut with a pin. It services one side only, so a complete front end needs one for each side.
The nut fits Dana 30 standard, Dana 44 and GM 10 bolt 8.5 inch front axles, which are the common setups for this spindle nut set.
Key features
- Inner nut with pin
- Single side per part
- Front axle applications
Setting front hub preload
Spindle nuts hold the inner bearing and set the hub’s position on the spindle, so their job is preload and retention rather than carrying the vehicle’s weight. On a front axle, a nut that is worn, cross-threaded, or the wrong style can allow the hub to shift, which often shows up as wheel play or a bearing that runs hot. Inspect the threads and the pin before reuse.
When rebuilding a front hub, the nut is usually replaced alongside the bearings, seals and pin hardware, since those parts are set together. Tighten to the procedure for your axle and back off as that procedure specifies, then check that the hub turns freely with no play. Keep the pair of nuts matched in a single set so both sides are set the same way.
- Check the threads for galling before reusing
- Replace the pin if it is bent or missing
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 21588X |
| UPC | 725975104972 |
| Type | Inner nut with pin |
| Coverage | One side only |
| Axle location | Front |
| Axle types | Dana 30 standard, Dana 44, GM 10 bolt 8.5 inch |
Vehicle fitment
No vehicle is named for this nut. Universal fit is shown, but the nut has to match the axle type, so check the Dana 30 standard, Dana 44 or GM 10 bolt 8.5 inch spindle on your truck.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One inner spindle nut with pin.
