Overview

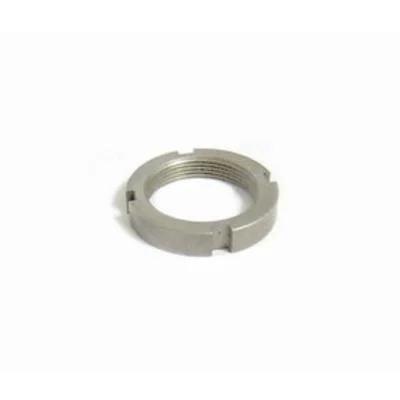

It is a front axle spindle nut for GM 10 bolt 8.5 inch, Dana 44 and Dana 30 standard axles.
It is a single spindle nut with no pin, so it differs from the pinned version. Match the spindle type before ordering.
Key features
- Spindle nut without a pin
- Front axle position
- Fits three axle types
Spindle nut checks
A spindle nut holds the hub assembly in place, so its condition affects wheel bearing preload and steering feel. Threads that are stretched, cross-threaded or rusted can cause the nut to loosen or bind during adjustment. Inspect the spindle threads and the nut before installing a new one, and clean any old grease or rust from the threads first.
Spindle nuts are often replaced along with the bearings, seals and washers during a front hub service. When tightening, follow the service procedure for your axle and avoid reusing parts that show deformation. Recheck the adjustment after the first few drives, since the bearings can settle as they seat.
- Inspect spindle threads for damage or rust
- Replace worn bearings and seals during the same service
- Recheck adjustment after the first few drives
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 31139 |
| Axle location | Front |
| Axle types | GM 10 bolt 8.5 inch, Dana 44, Dana 30 standard |
| Pin | None |
Vehicle fitment
Universal fit is listed, but no vehicle is named. Check the axle type and the front spindle on your truck before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One spindle nut without pin.
