Dana Spicer Dana 44 Pinion and Differential Bearing Shim Kit – 706376X

Dana Spicer

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dana Spicer Dana 44 pinion and differential bearing shim kit, part 706376X
  • 30 spline
  • Includes items 1, 2 and 21

Description

Overview

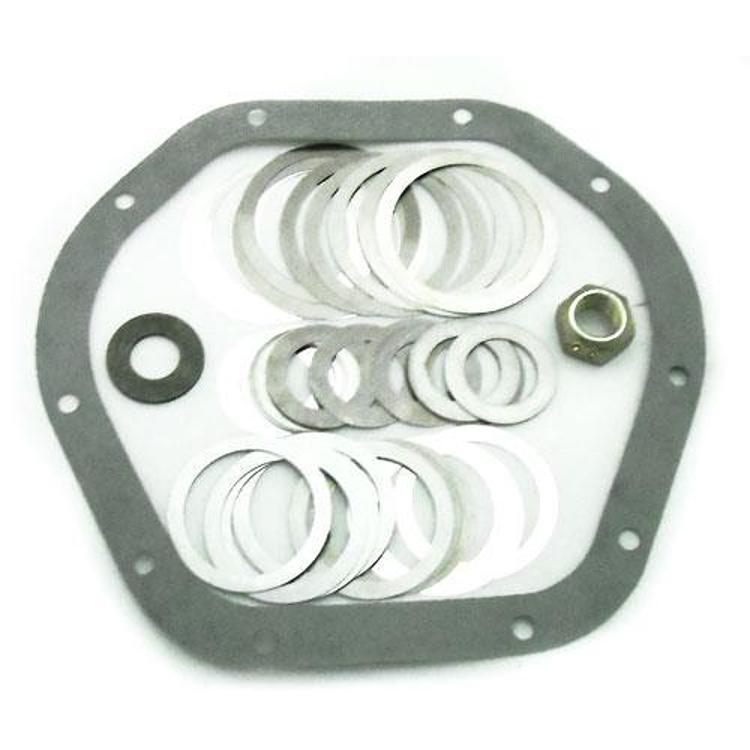

The Dana Spicer Dana 44 Pinion and Differential Bearing Shim Kit, part 706376X, is a shim kit for a 30 spline Dana 44 carrier.

The kit includes items 1, 2 and 21, for pinion and differential bearing setup in a Dana 44 carrier.

Why shims matter

Shims set the position of the pinion and the bearing preload in the carrier. Changing the gear set or the carrier bearings usually means the shim stack has to be measured again, because the old stack was built for the old parts. Shims are added or removed in small steps, so a careful measure and a clean carrier make setup faster.

Before buying, match the kit to the carrier and check that the shim range fits your setup. Keep the shims clean, dry and sorted by size, and lay them out in the order they came off. Note any shim that is bent, cracked or crushed, since a damaged shim cannot hold a steady preload.

  • Measure pinion depth with the old stack
  • Keep shims sorted and clean
  • Replace bent or crushed shims
  • Check preload after final assembly

Specifications

Brand Dana Spicer
Part number 706376X
Axle type Dana 44
Spline 30

Vehicle fitment

Universal fit is listed, but no vehicle is named. Confirm the Dana 44 carrier and spline count before ordering.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

Items 1, 2 and 21 of the kit are included. Check the quantities and sizes against your carrier before starting.

Specification

Shipping weight 0.90 lbs
Package dimensions 10.80 × 9.90 × 4.00 in
brands

Questions & Answers

Is the Dana Spicer 706376X kit for a 30 spline axle?

Yes. It is for a 30 spline Dana 44 carrier, so match the spline count to your carrier before buying.

Which items are in the 706376X kit?

Items 1, 2 and 21 are included. Check the shim sizes and quantities against your carrier before buying the kit.

Can shims be reused?

Often yes, if they are undamaged and the carrier is set up again from the start. Bent, cracked or crushed shims should be replaced, and sizes should be kept together so the stack can be rebuilt accurately.

When are shims needed in a carrier?

Shims are needed when pinion depth or bearing preload changes, such as after replacing gears, bearings or the carrier. Check the setup with a tooth contact pattern before final assembly.
