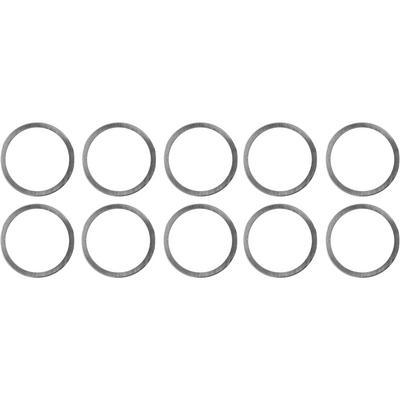

Dana Spicer Dana 44 JK Front Differential Bearing Shim Kit – 2007294

Dana Spicer

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dana Spicer Dana 44 JK front differential bearing shim kit, part 2007294
  • Pinion and carrier shim set
  • Universal fit listed; no vehicle named

Description

Overview

The Dana Spicer Dana 44 JK Front Differential Bearing Shim Kit, part 2007294, is a set of shims for a front differential. Shims are used to set bearing preload and gear position during a ring and pinion install.

Dana Spicer describes its genuine Spicer parts as made to the same standards as original equipment, so buyers get the same reliability they expect from an OE replacement.

Key features

  • Front differential shim kit
  • Made to original equipment standards.
  • Universal fit listed

Measuring preload and mesh

Shim kits set the position of the pinion and carrier, which decides how the gears mesh and how the bearings are loaded. Measuring the existing carrier, the bearing cups and the pinion head before choosing shims helps narrow the thickness needed. Once the parts are assembled, check preload first, then gear backlash, then the tooth contact pattern.

Keep a record of each shim stack as it goes in. A written note makes it easier to repeat the setup if a bearing or carrier is replaced later, and it shows which changes actually moved the pattern. Clean the mating surfaces well, and inspect bearings for pitting or heat marks before reuse, since a worn bearing can make even a correct shim setup feel wrong.

  • Measure carrier and pinion before selecting shims
  • Check preload before backlash
  • Use marking compound for the contact check

Specifications

Brand Dana Spicer
Part number 2007294
Position Front differential
Axle name Dana 44 JK
Fitment Universal fit

Vehicle fitment

No vehicle is named. Universal fit is listed, but the shim thickness depends on the carrier and gear set, so confirm the Dana 44 JK front application before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Shims are sized by measurement: check the bearing preload and gear mesh after the shims go in, rather than installing them by part number alone.

What’s included

A shim kit, part 2007294. The individual shim sizes aren’t itemized.

Questions & Answers

Is the Dana Spicer 2007294 a front or rear shim kit?

Front. It is a front differential shim kit for the Dana 44 JK, so match it to the front carrier before buying.

What does the 2007294 kit set?

It sets bearing preload and gear position during a ring and pinion install, which is the main job of these shims.

Are the individual shim sizes listed?

No. Shim thicknesses are chosen by measuring the carrier and gear set during the install, so select them to match before assembly.

What tools help when setting carrier shims?

A dial indicator for backlash, a torque wrench for preload, and gear marking compound for the contact check are the usual tools. Record each shim stack as it is measured so the adjustment can be repeated if a part is replaced later.
