Dana Spicer Dana 44 Open Differential Carrier Case – 32684

Dana Spicer

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dana Spicer Dana 44 open differential carrier case, part 32684
  • Case only, empty, no internals
  • For 3.92 and up gears

Description

Overview

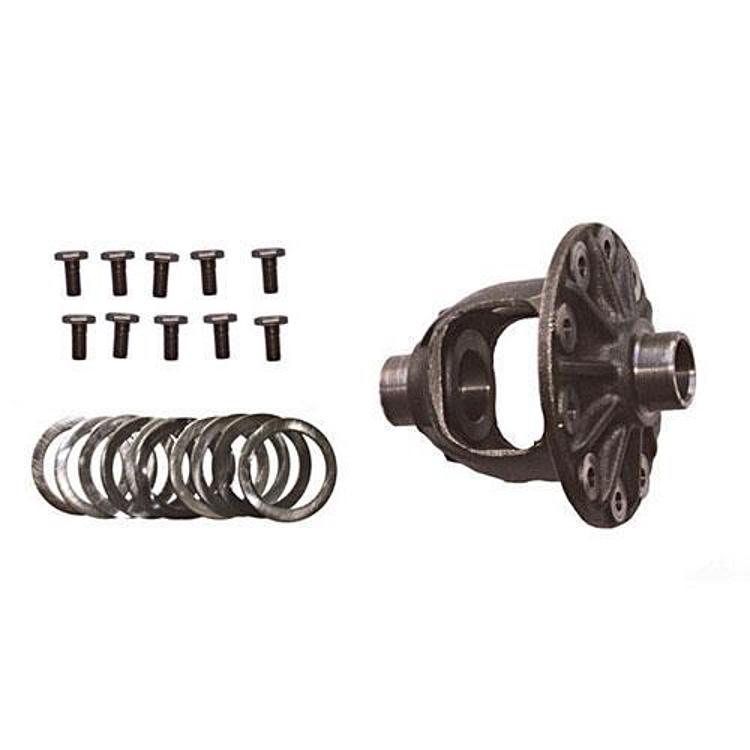

The Dana Spicer Dana 44 Open Differential Carrier Case, part 32684, is an empty carrier case for an open Dana 44 differential. It is for 3.92 and up gear sets.

Dana Spicer offers the case for gear changes that need a carrier with a different ring gear landing, or for replacing a worn or broken carrier. The spider gears are not part of the case.

Key features

  • Empty open differential case
  • For 3.92 and up gears
  • Front or rear axle position listed

Carrier case replacement checks

A carrier case holds the spider gears, side gears and the ring gear. When the case cracks, wears at the bearing bores or loses its alignment, the gear mesh shifts and noise or early failure follows. Inspect the case for cracks around the ring gear bolt holes before reusing it.

Ring gear setup affects the case as much as the gears. Ring gear runout and bearing preload must be checked after any carrier swap, and the new case must match the gear ratio you are running. Clean the bearing bores and the ring gear mounting face before bolting anything together. Keep track of the shims and bearing caps during removal so they go back in the same positions. Replace the bearings if they show pitting or heat discoloration.

  • Inspect the bearing bores for wear
  • Check ring gear runout before final assembly
  • Mark bearing caps to keep their positions

Specifications

Brand Dana Spicer
Part number 32684
UPC 23913138219
Axle location Front or rear
Axle type Dana 44
Differential type Open differential case only, empty
Gear ratio 3.92 and up

Vehicle fitment

Universal fit is listed, but no vehicle is named. The case is for Dana 44 open carriers, so confirm the axle type and the 3.92 and up gear requirement before ordering.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

The empty open differential case.

Not included: spider gears, side gears and internal parts.

Specification

Shipping weight 10.85 lbs
Package dimensions 7.30 × 7.00 × 7.00 in
brands

Questions & Answers

Does the Dana Spicer 32684 case include internals?

No. It is an empty open differential case, so the spider gears and side gears must be bought separately if they are needed for the rebuild, since the case itself comes with no internal parts at all.

Which gear ratio is the 32684 case for?

The product specifications list it for 3.92 and up gears, so check your ring gear ratio against that figure before ordering the case for your Dana 44 carrier.

Is the 32684 for front or rear axles?

Either. It fits front or rear Dana 44 carriers, so the position of your axle does not limit the choice. Confirm the axle type before ordering.

Does the carrier case need new bearings?

Often, yes. Bearings that are removed for a carrier swap should be checked closely, and worn or heat-damaged bearings are usually replaced. Using new bearings with a fresh case helps keep the preload stable after assembly.
