Overview

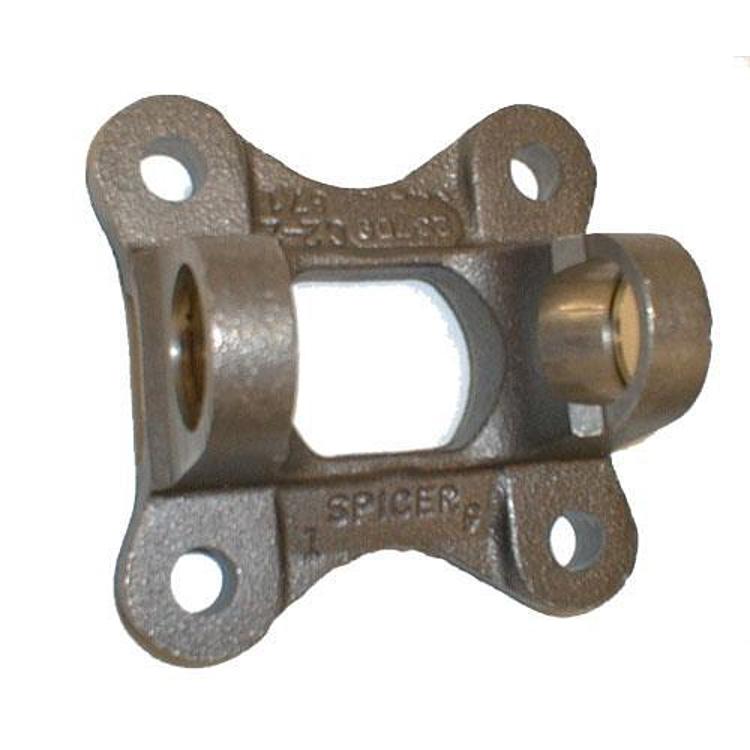

The Dana Spicer 1330 Series Flange Yoke, part number 2-2-1399, lets a standard style driveshaft connect to a flat companion flange yoke. It uses the flange U-joint series, with the U-bolt or strap set up in the flange bolt style.
This yoke is universal fit, so it is matched by U-joint series and pinion flange rather than by vehicle model.
Key features
- Adapts a standard style driveshaft to a flat companion flange yoke
- Flange U-joint series
- Flange bolt style U-bolt or strap
- Universal fit
Choosing by series and flange
Flange yokes are chosen by U-joint series and by the flange they mate to, not by vehicle. Mixing series or bolt styles is a common mistake, so the pinion flange and the U-joint should be identified before the yoke is ordered. Read the series marking on the old U-joint or the flange face to confirm the match.
When replacing a yoke, look at the ears and bores for cracks, galling or wear. A worn pilot or distorted bore can keep the joint from centering, and that shows up as vibration. Replacing the U-joint at the same time is a practical way to avoid another teardown.
- Identify the U-joint series from the old joint or flange
- Inspect yoke ears and bores for cracks or wear
- Replace the U-joint when the yoke is replaced
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 2-2-1399 |
| U-joint series | Flange |
| U-bolt or strap | Flange bolt |
| Fitment | Universal fit |
Vehicle fitment
This yoke is not vehicle-specific, so no vehicle is named for it. Choose it by U-joint series and pinion flange.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the bolt circle and pilot against your pinion flange before assembly.
What’s included
The flange yoke.
Not included: Fasteners are not part of the kit, so source bolts that suit the flange.
