Overview

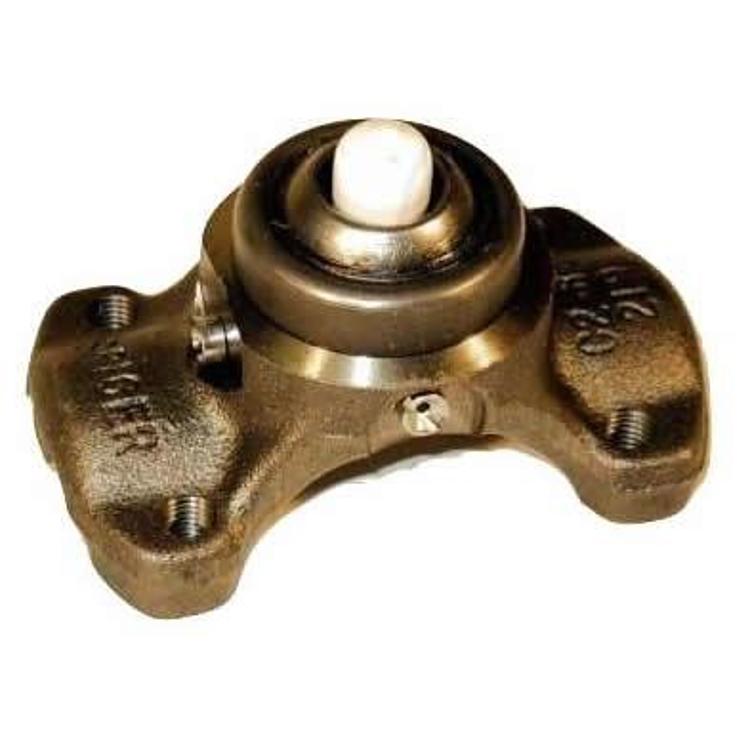

The Dana Spicer 211355X is a 1310 drive shaft CV socket yoke assembly for the front driveshaft at the transfer case. It is a factory-style replacement part, and the bolt circle diameter is 3.218.
It fits Chevrolet, GMC, Dodge, Ford, Jeep and Plymouth trucks, including the Chevrolet K10 and K20, the Ford Bronco and F-100 and F-150, and the Jeep Cherokee XJ and CJ models.
Key features
- 1310 series CV socket yoke assembly
- Front driveshaft at the transfer case
- 3.218 bolt circle diameter
- Greasable
Before you install
A CV socket yoke sits at the end of the front driveshaft where it meets the transfer case. It transmits torque through a joint that lets the shaft change angle as the front axle moves over uneven ground. Because the yoke takes constant load and angle changes, its condition affects driveline vibration and the seals and bearings around it. Before installing, clean the yoke bore and mating surfaces, and confirm the bolt pattern matches the transfer case output you have.
Greasing is a routine task. Work grease into the fitting until fresh grease shows at the seal, which pushes out old contamination. Inspect the yoke for play, torn boots or rough rotation, and look for grease leaks on the transfer case side. Replacing a yoke often means checking the front driveshaft U-joints and the transfer case seal at the same time, since those parts wear on a similar schedule.
A quick check after the first few drives helps catch problems early. Listen for new vibration under load, feel for heat at the joint, and recheck the fasteners once the driveline has settled. Keeping the yoke greased and sealed is one of the simplest ways to extend the life of the front driveline.
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 211355X |
| Series | 1310 |
| Bolt circle diameter | 3.218 |
| Position | Front driveshaft, CV at transfer case |
| Lubeable | Greasable |
| Fitment type | Direct fit |
Vehicle fitment
It fits Chevrolet, GMC, Dodge, Ford, Jeep and Plymouth trucks and SUVs from 1966 to 1999, including the Chevrolet K10 and K20, the Ford Bronco and F-150, the Dodge Dakota, the Jeep Cherokee XJ and the Jeep Comanche. Each model fits within its own year range.
The list does not include Wrangler or Cherokee KJ and KL models, or the trucks built after 1999. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The yoke is greasable, so pack the assembly with grease when installing it at the transfer case.
What’s included
One CV socket yoke assembly is included. Hardware and grease are not included, so have them ready before installing.
