Overview
The TeraFlex 1744014 is a factory replacement Rzeppa high-angle CV joint kit for the Jeep Wrangler (JK). It lets a JK owner replace a worn or damaged Rzeppa CV joint and keep the factory JK driveline.
The high-angle CV housing is designed to reduce boot failure on taller lifts. It is best suited to JKs with 3 or more inches of lift, and it is built for the 2007–2018 Jeep Wrangler (JK).
Key features
- Factory replacement Rzeppa CV joint assembly
- High-angle CV housing cap and boot
- Bolt flanges and socket head bolts included
- 6mm Allen wrench included
- Low-friction CV grease formulated for the high RPM needs of the JK Rzeppa joint
Driveline service
The CV joints transfer power from the transmission to the wheels, and their boots keep grease in and dirt out. A torn boot lets water and grit reach the joint, which can cause rapid wear. Inspect the boots whenever the wheels are off, and look for grease spray, cracks or loose clamps.
When rebuilding a CV joint, clean the axle shaft and joint fully before packing. Old grease can hold grit that damages new bearings, and a mixed grease can break down under load. Replace the boot and clamps together so the new joint is sealed properly.
On lifted Wranglers, driveline angles increase, which puts more strain on the joints. Check the axle angle and driveshaft clearance after a lift is installed, and keep the suspension bolts torqued because they change the joint angle over time.
- Clean the joint and shaft before packing
- Replace the boot and clamps together
- Check driveline angle after lift work
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1744014 |
| UPC | 843885036050 |
| Joint type | Rzeppa CV, high-angle housing |
| Boot | High-angle cap and boot |
| Allen wrench | 6mm |
| Lift note | Designed for JKs with 3 or more inches of lift |
| Fitment type | Jeep Wrangler JK, 2007–2018 |
Vehicle fitment
This kit fits 2007–2018 Jeep Wrangler (JK) models, matching the JK Rzeppa joint and the JK Wrangler chassis.
It is designed for the Jeep Wrangler JK only, not the TJ, LJ or JL. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Pack the joint with the supplied grease thoroughly and liberally, using all of it across the entire CV assembly. TeraFlex warns that insufficient grease in the bearings causes bearing failure.

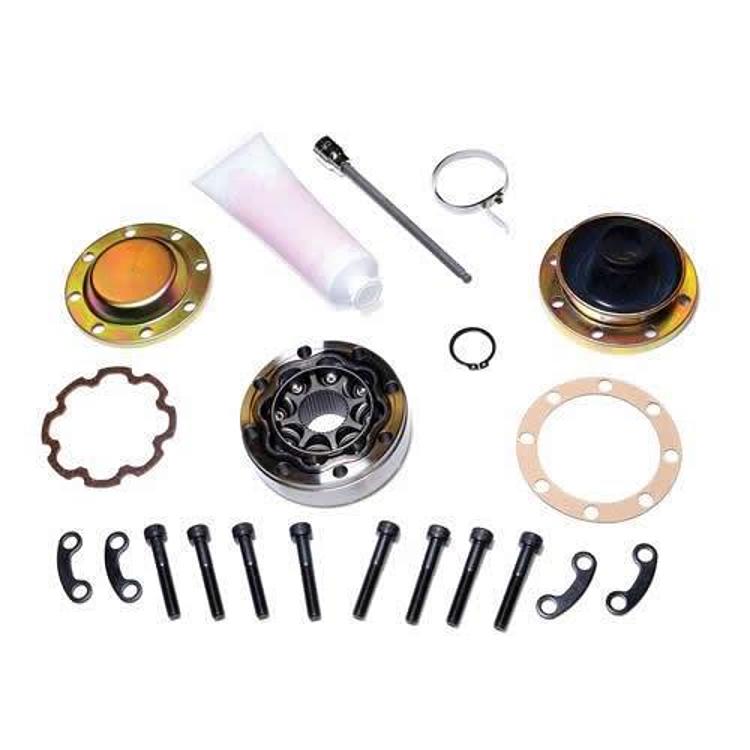

What’s included
The kit includes the CV joint assembly, the high-angle CV housing cap and boot, bolt flanges, socket head bolts, a 6mm Allen wrench and low-friction CV grease.
