Overview

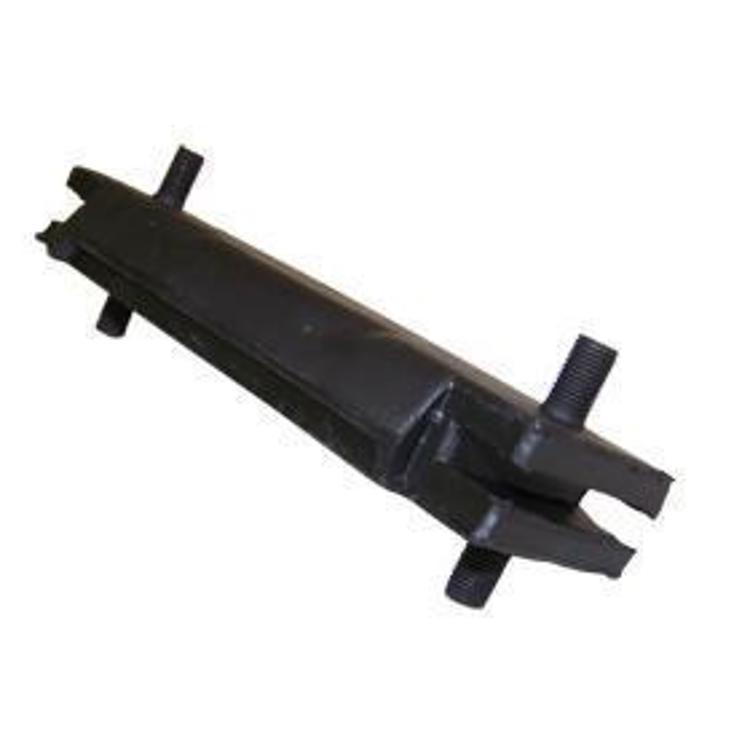

The Crown Automotive T90 is a rubber transmission mount for the T90 and T86 transmissions, part number JA006156. It is a direct fit replacement that fits early Willys MB and CJ Jeep models from 1941 through 1971.
Rubber transmission mounts hold the drivetrain in the frame and absorb engine vibration. This mount is rubber and is designed for the T90 and T86 transmissions.
Key features
- Rubber mount material
- Built for T90 and T86 transmissions
- Direct fit design
- Crown Automotive part number JA006156
Fitting the mount to older Jeeps
Early Jeep transmissions such as the T90 and T86 sat on a crossmember that carried most of the drivetrain weight, and a rubber mount there works as a cushion between the gearbox and the frame. On these older vehicles the rubber often hardens and splits, which lets the transmission rock during shifts and transmits more engine vibration to the cabin. Because the mount is one of several drivetrain supports, a worn cushion can also strain the shifter linkage and nearby exhaust hangers.
Before installing a new mount, look at the crossmember for rust, cracks and enlarged bolt holes, since an old frame bracket can make a new mount sit at an angle. Remove the old mount with the transmission supported, and clean the bolt threads before reassembly. Many restorers replace the rear mounts and crossmember bushings at the same time, so the drivetrain sits evenly. After a few drives, check the fasteners again, because rubber can settle as it takes the load.
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | JA006156 |
| UPC | 848399073348 |
| Type of mount | Transmission mount |
| Transmissions | T90 and T86 |
| Fitment type | Direct fit |
| Mount material | Rubber |
Vehicle fitment
It fits 1941–1942 Willys MB, 1946–1949 Willys CJ-2, 1949–1958 Willys CJ-3, 1955–1958 Willys CJ-5, 1956–1958 Willys CJ-6, 1959–1960 and 1966 CJ3, and 1959–1960 and 1966–1971 CJ5 and CJ6.
CJ7 models and Wrangler models are not in this list, and CJ5 and CJ6 years after 1971 are not covered. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Only the mount is included. Check the package contents against your installation before starting.
