Overview

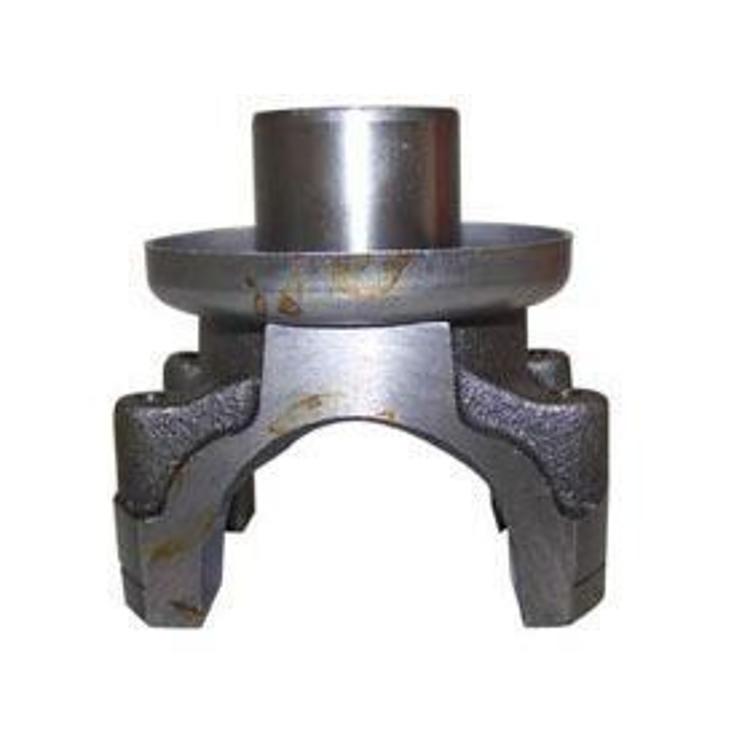

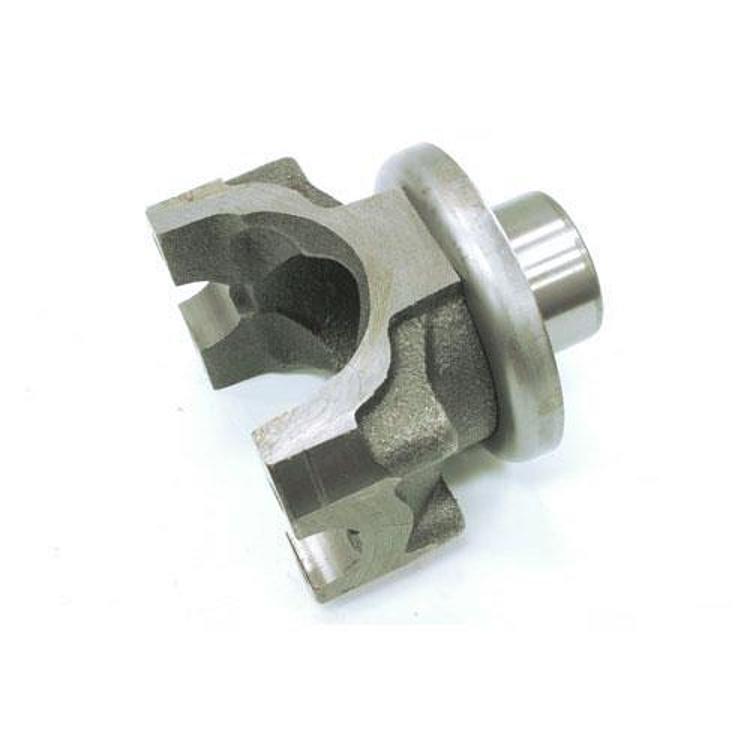

The Crown Automotive 83502829 is a front output yoke for NP207 or NP231 transfer cases. It has 26 splines and a strap and bolt style design, and it is built for a Spicer 1310 series u-joint with a 3.219 inch outside diameter.
It fits the 1987–1995 Jeep Wrangler YJ. The strap and bolt attachment differs from a u-bolt design, so compare the mounting style with your current yoke before fitting it.
Key features
- Fits NP207 or NP231 transfer cases
- 26 splines
- Strap and bolt style design
- Designed for a Spicer 1310 series u-joint
Mounting style and fit
Strap and bolt yokes clamp to the output differently than u-bolt designs, so the mounting surface and bolt pattern matter more than on a simple u-bolt yoke. Before work starts, check the bolts, the strap, and the surface they clamp to for wear. A worn strap or elongated bolt hole can allow movement that loosens the driveline over time.
The yoke is built to use a Spicer 1310 series u-joint, so the joint and yoke should be checked together. Use new fasteners when the yoke is changed, and torque them to the specification in your service manual. After the first short drive, recheck the hardware for looseness and inspect the joint for play.
- Inspect strap and bolt holes for wear
- Use new fasteners at reassembly
- Recheck hardware after the first drive
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 83502829 |
| UPC | 848399024807 |
| Transfer case | NP207 or NP231 |
| Splines | 26 |
| Attachment style | Strap and bolt |
| U-joint | Spicer 1310 series, 3.219 inch O.D. |
Vehicle fitment
The yoke fits 1987–1995 Jeep Wrangler YJ models in Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara and Sport trims.
Not covered on this list: the 1997–2006 Jeep Wrangler TJ, the 2007 and later Wrangler JK, and any other Jeep model outside the YJ years. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Strap and bolt yokes attach differently from u-bolt designs, so check the attaching hardware and u-joint fit before you begin. Replacing the yoke generally means removing the driveshaft first.
What’s included
Gather the u-joint and attaching hardware before starting the job.
Not included: the Spicer 1310 series u-joint, which is a separate part.
