Overview

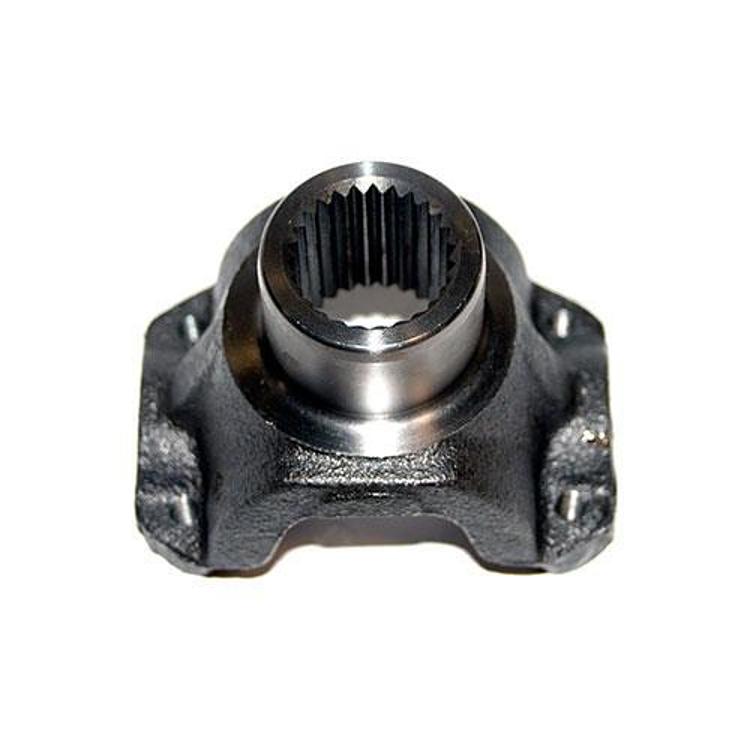

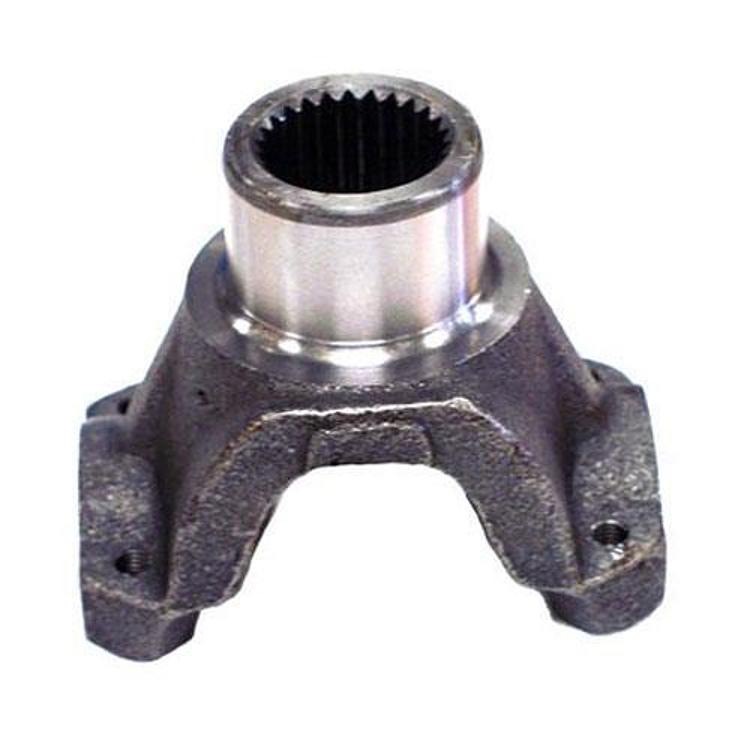

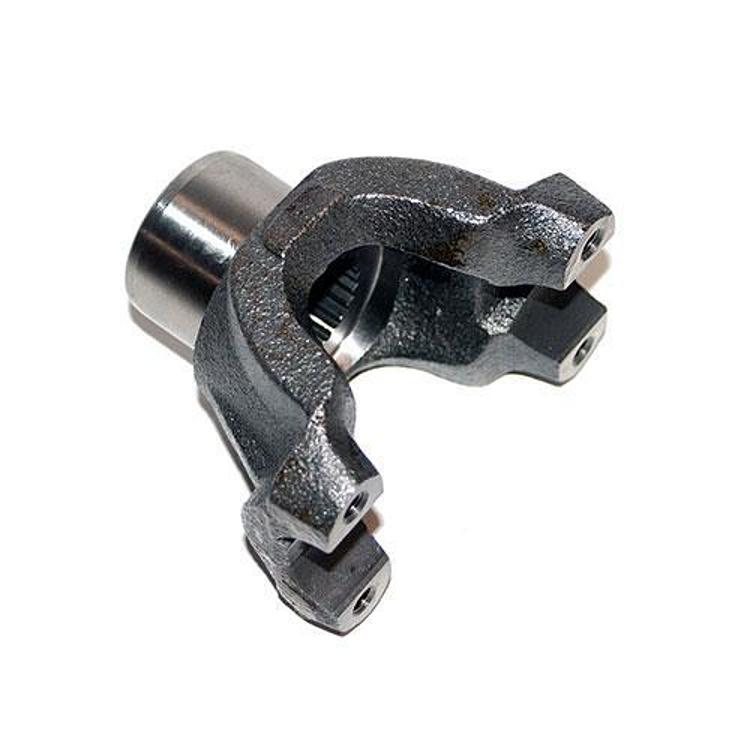

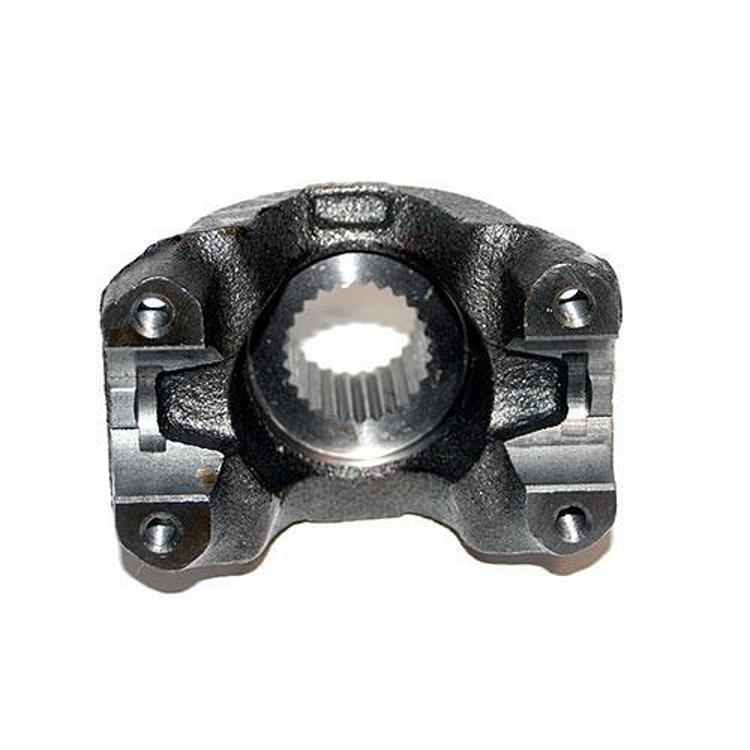

The Crown Automotive Dana 44 pinion yoke, number 83503388, is a strap and bolt style axle pinion yoke for Dana 44 axles. A pinion yoke connects the driveshaft to the axle pinion gear.
Crown Automotive makes and distributes replacement parts for Jeep vehicles, with over 8,000 part numbers. Confirm the spline count, thread size and yoke length against your pinion before buying.
Key features
- Strap and bolt style pinion yoke
- Axle pinion yoke for Dana 44 axles
- Direct fit for Dana 44 axles
- Replacement part from Crown Automotive for Jeep vehicles
Pinion yoke installation basics
The pinion yoke is the link between the driveshaft and the pinion gear, so it takes torque, angle changes and vibration every time the vehicle moves. A worn yoke can cause clunks, vibration and seal leaks. When replacing one, the pinion nut torque and preload need to be set correctly, because loose or over-tight nuts can damage bearings.
Replacing a yoke is often done with a new pinion seal and a pinion nut, since reusing the old seal can allow leaks. Clean the yoke splines and pinion shaft before assembly. Check the driveshaft u-joints and the yoke’s sealing surface for wear while the driveline is out, and replace parts that show grooves or heat marks.
- Inspect the seal surface for grooves or pitting
- Replace the pinion seal when the yoke is removed
- Check driveshaft u-joints at the same time
- Set pinion preload before the driveline goes back on
Specifications
| Brand | Crown Automotive |
|---|---|
| UPC | 848399025415 |
| Style | Strap and bolt |
| Part type | Axle pinion yoke |
| Axle type | Dana 44 |
Vehicle fitment
The yoke is for Dana 44 axles. Confirm your axle type matches before ordering, and check pinion fit before installing.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
It is the yoke only. Plan on a pinion nut, seal and strap hardware for installation.
