Overview

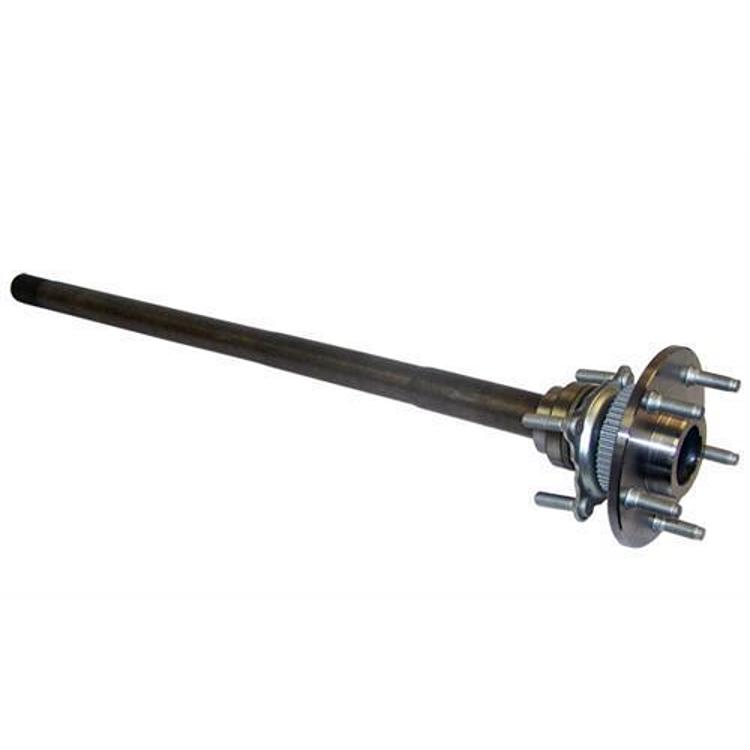

The Crown Automotive Dana 44 JK Rubicon rear passenger axle shaft, part 68003558AA, is the rear passenger side shaft for Wrangler JK Rubicon axles. It has 32 splines and includes the retainer, bearing, seal and ring.
The fit covers 2007–2018 Jeep Wrangler JK models across the covered trims. It is a direct fit that replaces the original passenger side rear shaft.
Key features
- Rear passenger side shaft
- 32 splines
- Retainer, bearing, seal and ring included
- Direct fit replacement
- Direct fit for 2007–2018 Jeep Wrangler JK models.
Passenger side rear shaft work
The rear passenger side shaft carries drive torque from the differential to the right rear wheel. Wear tends to appear as vibration under acceleration, a clicking during turns, or grease on the inside of the wheel. A worn shaft can also damage the axle seal, so inspect that area while the shaft is out.
Clean the bore and check the seal surface for grooves before installing. Pay attention to how the retainer seats, since a crooked fit can leak. Compare the old and new bearings side by side so you know the parts match before the job starts. Once the shaft is in, check fluid level and look for leaks during the first few drives.
- Inspect the right rear seal for leaks
- Confirm the retainer sits flush
- Recheck fluid after the first drives
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 68003558AA |
| UPC | 848399047851 |
| Axle type | Dana 44 JK |
| Axle location | Rear |
| Side | Passenger side |
| Position | Rear right |
| Spline count | 32 splines |
| Includes | Retainer, bearing, seal and ring |
| Fit | Direct fit |
Vehicle fitment
It fits 2007–2018 Jeep Wrangler (JK) models across the covered trims.
Wrangler TJ, YJ and LJ models are not in this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Crown includes the retainer, bearing, seal and ring with this shaft, so compare them with the parts you remove before you start the job.
What’s included
One rear passenger side axle shaft with retainer, bearing, seal and ring.
