Overview

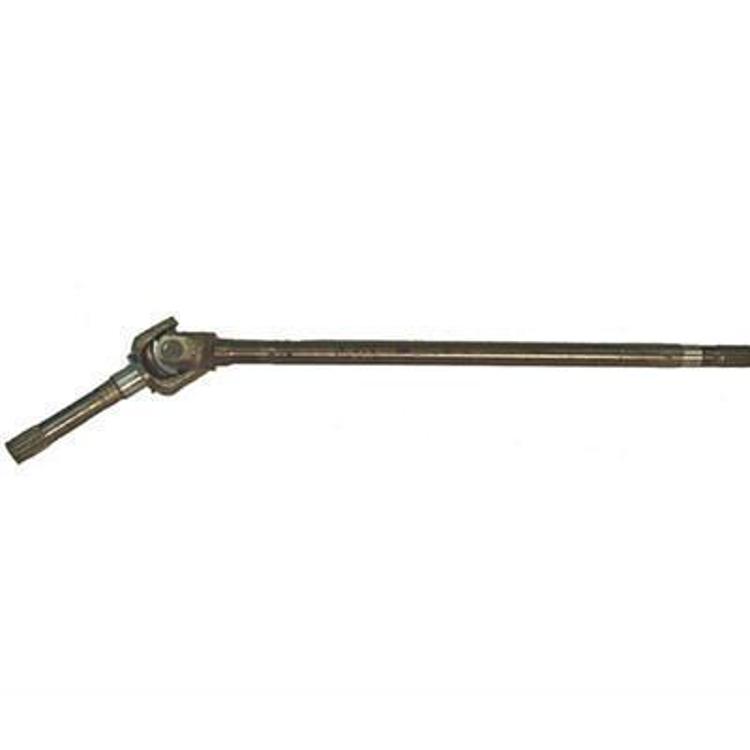

The Crown Automotive Dana 44 JK Rubicon front passenger side axle shaft, part 68017183AB, is a complete assembly for the front right side of a Dana 44. It includes the inner shaft, outer shaft and U-joint, and it fits 2-door and 4-door Jeep Wrangler JK models from 2007 to 2018.
The assembly uses a 30 spline axle and is a direct fit replacement. Because the U-joint comes with the assembly, you do not need to buy one separately for this side.
Key features
- Front passenger side assembly
- Inner shaft, outer shaft and U-joint included
- 30 splines on a Dana 44 front axle
- For 2-door and 4-door models
- Direct fit replacement for the front passenger side axle.
Checking the old axle
Axle shaft assemblies carry drive torque from the differential to the wheel hub, so the splines and U-joint see constant load both on and off the trail. Before removing the old unit, inspect the inner and outer shafts for twisting, and look at the U-joint for play, rust staining or dry bearing caps. Those signs usually point to a joint that has run dry or taken repeated shock loads from hard articulation.
When a full assembly is replaced, the hub, ABS sensor wiring and brake line routing matter as much as the shaft itself. Clean the mounting surfaces and compare the new assembly’s spline count and bolt pattern against the removed part. Replace the axle nut as directed by your installer, and recheck the fasteners after the first few drives.
- Check the splines for rounded or worn edges
- Note any wheel play at the hub before disassembly
- Inspect the boot and seal area for grease leaks
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 68017183AB |
| UPC | 848399048124 |
| Axle type | Dana 44 JK |
| Axle location | Front |
| Side | Passenger side assembly |
| Position | Front right |
| Spline count | 30 splines |
| Includes | Inner shaft, outer shaft and U-joint |
| Body style | 2-door and 4-door |
| Fit | Direct fit |
Vehicle fitment
It fits 2007–2018 Jeep Wrangler (JK) models across the covered trims, including Rubicon and Sahara.
Wrangler TJ, YJ and LJ models are not in this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This is a full passenger side assembly, so the front hub and axle end should be checked against the old assembly before you remove it.
What’s included
One front passenger side assembly with inner shaft, outer shaft and U-joint.
