Overview

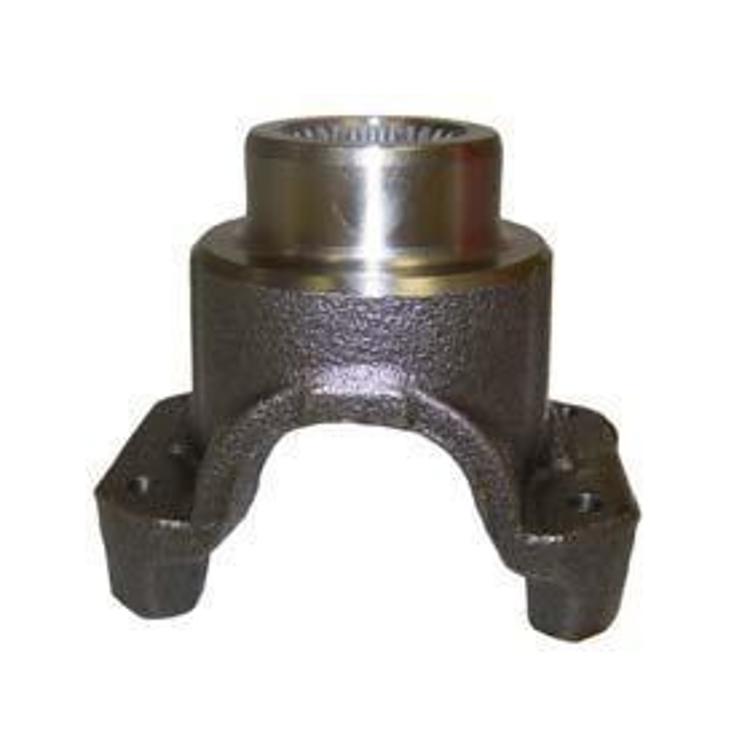

It is a rear pinion yoke with a strap and bolt design, 3.00 inches long. It sits at the rear driveshaft where it meets the rear axle, and it fits the 1994–2001 Jeep Cherokee (XJ).
The axle is a Chrysler 8.25, and the fit covers only the 1994–2001 Cherokee. Check your axle and driveshaft before ordering, since the yoke has to match the pinion it bolts to.
Key features
- Strap and bolt design
- 3.00 inches long
- Rear driveshaft at the rear axle position
- Direct fit for the 1994–2001 Jeep Cherokee (XJ)
Strap and bolt yokes
A strap and bolt yoke clamps to the pinion flange with a retaining strap, so it does not depend on U-bolts for alignment. That makes the pinion nut the main torque point, and it should be tightened to the figure in the service manual. The yoke must match the pinion splines and the driveshaft flange, so measure the old yoke and compare it before ordering.
Inspect the pinion seal and the yoke sealing surface before fitting, because a grooved surface will wear a new seal quickly. Check the driveshaft universal joints for play after installation, and mark the driveshaft and yoke position to keep the balance. Loose straps or bolts can cause driveline vibration, so recheck them after the first few drives.
- Measure the old yoke length
- Check pinion seal condition
- Recheck strap bolts after the first drive
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 52068839 |
| UPC | 848399015317 |
| Length | 3.00 inches |
| Design | Strap and bolt |
| Position | Rear driveshaft at rear axle |
| Axle | Chrysler 8.25 |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 1994–2001 Jeep Cherokee (XJ). Other Cherokee generations, including the KJ Liberty and KL Cherokee, are outside this fit. Confirm your vehicle’s year, model and trim before ordering.
Other Cherokee generations, including the KJ Liberty and KL Cherokee, are not on this list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One pinion yoke. No other hardware is named.
