Overview

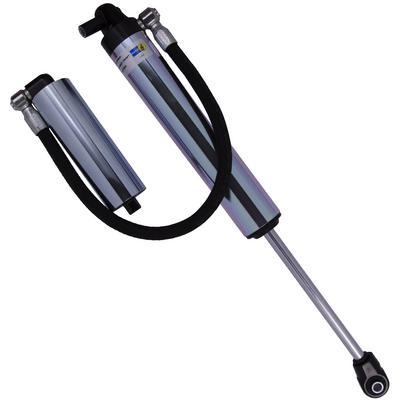

The Bilstein 8100 Series 25-297843 is a front right reservoir shock absorber for the 2018–2026 Jeep Wrangler (JL). It is a large bore 60mm direct-fit unit for lifted trucks and SUVs, with eyelet mounts at the top and bottom.
The unit is built from billet components. Its 60mm inside diameter increases oil volume, which helps control heat over long runs on rough roads. It is a monotube design with velocity sensitive digressive valving tuned for each application.
This part is the front right position, so confirm the side before ordering a matching front left unit. Each 8100 can be fitted with a remote or piggyback reservoir, so allow room for the reservoir hose. Check the clearance at full compression and at full extension before fitting the shock to the truck.
Key features
- Front right position
- 60mm large bore body with billet construction
- Remote or piggyback reservoir
- Monotube design with velocity sensitive digressive valving
- Eyelet top and bottom mounts
Reservoir clearance on a Wrangler
A reservoir shock on the front of a Wrangler needs more planning than a standard damper. The reservoir and its hose have to clear the steering linkage, the inner fender and the front axle as the suspension moves through its travel. Before mounting, cycle the steering from lock to lock with the shock installed and watch the hose at each extreme.
Larger bore shocks add oil capacity and suit trucks that see long off-road stretches or heavy loads on the front axle. Pair the shock with sound upper mounts and bushings, since play in those parts shows up quickly with a damper this size. When the old shock is removed, look for oil on the body, a bent shaft or cracked eyelet bushings, and replace the matching front unit at the same time.
- Clear the reservoir hose from the steering linkage
- Check the eyelets for play before fitting
- Match both front shocks to the same design
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 25-297843 |
| Shock series | 8100 Series |
| Position | Front right |
| Shock type | Reservoir, monotube |
| Body diameter | 60mm |
| Top mount | Eyelet |
| Bottom mount | Eyelet |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2018 through 2026 Jeep Wrangler (JL) in the front right position.
Wranglers from before 2018, Gladiator models and the front left position are not covered by this part number. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One front right reservoir shock absorber.
Installation notes
Check the reservoir clearance on your Wrangler before mounting, and confirm the right side before ordering.
