Overview
The 25-176230 is a 5165 Series reservoir shock absorber built for custom lifted trucks and SUVs. It is a universal fit design. The remote reservoir adds shock oil capacity and heat dissipation, which supports steadier damping under repeated use.
The floating dividing piston sits inside the reservoir, which allows more shaft movement and wheel travel. The body is a gas charged monotube with digressive valving.
Key features
- Monotube body paired with a remote reservoir
- Digressive valving system for full damping capability
- Floating dividing piston located in the reservoir for more wheel travel
- Remote reservoir for greater shock oil capacity and heat dissipation
- Gas charged construction
- Triple-C Technology finish for easy care and lasting appearance
Reservoir placement on a lifted build
A remote reservoir moves the oil chamber away from the hot shock body, which helps keep damping stable when the truck is worked hard on rough terrain. On a lifted build the reservoir hose and mounting bracket need room to flex with suspension travel, so route the hose away from the tire, the frame edges and any moving steering parts. Clearance checks should be done at full droop and full compression.
Before choosing a reservoir shock, confirm the lift height and the spring rate, since those change how far the shaft travels and how the damper is loaded. Heavier tires and longer control arms can also reduce clearance. Inspect the reservoir mount and hose clamps after the first few trips, and look for fluid seeping at the reservoir cap or hose ends, which indicates a seal or fitting problem.
- Check hose clearance at full droop and full compression
- Inspect reservoir brackets for loose or cracked welds
- Re-torque hose clamps after the first few trips
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 25-176230 |
| UPC | 651860661407 |
| Shock series | 5165 Series |
| Design | Monotube with remote reservoir |
| Charge | Gas charged |
| Finish | Triple-C Technology |
| Fitment | Universal Fit |
Vehicle fitment
This shock is a universal fit design, so no year, make or model is tied to it. Check reservoir placement, mounting length and clearance on your truck or SUV before installing.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The reservoir mounts separately from the shock body, so choose a location with clearance before installing. Bilstein includes detailed instructions with the reservoir mounting kit.
What’s included

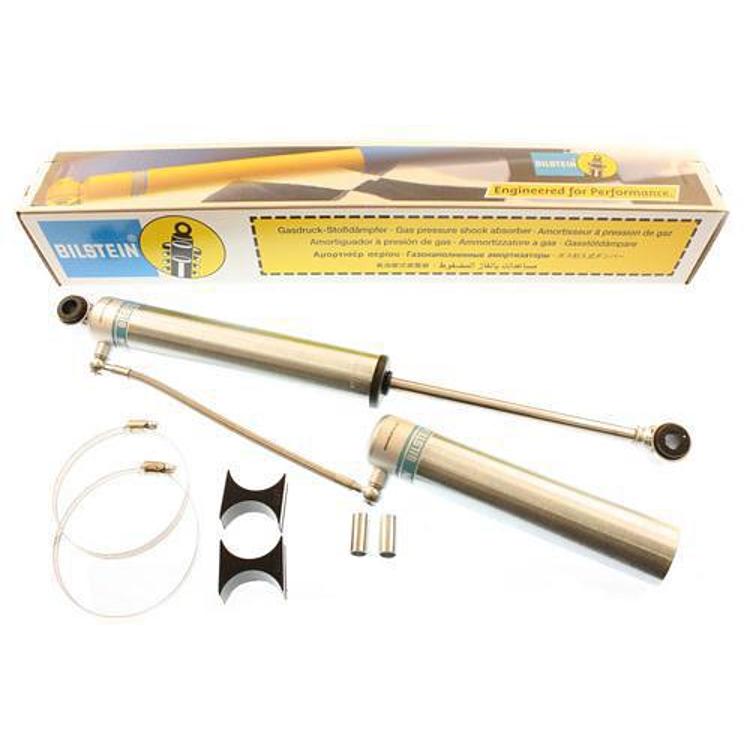

One reservoir shock absorber with the reservoir mounting kit and detailed instructions.
