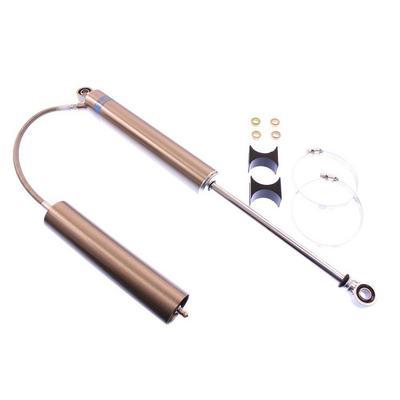

Bilstein 7100 Series Reservoir Shock Absorber – AK7112SB01

Bilstein

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein 7100 Series reservoir shock, part AK7112SB01
  • Monotube gas pressure body with a 2 in diameter
  • Schrader valve fitting and dividing piston in the reservoir
  • Universal label; confirm length and mounting yourself

Description

Overview

The Bilstein 7100 Series AK7112SB01 is a reservoir shock absorber from a line that Bilstein says is versatile enough for stock trucks, prerunner trucks, race buggies, sand buggies and other recreational off-road vehicles. The 7100 Series is available with or without a remote reservoir, and this part number is the reservoir version.

The shock has a 2 inch diameter body with a monotube gas pressure construction. Its piston is a high-flow design that Bilstein says reduces harshness, and the valving is self-adjusting and deflecting disc style. The dividing piston sits in the reservoir, which Bilstein says allows more shaft movement, and the unit is fitted with a Schrader valve.

The 7100 Series is designed for long service life because owners can rebuild it. It comes in 8, 10, 12 and 14 inch travel.

Key features

  • Remote reservoir version of the 7100 Series
  • Monotube gas pressure construction
  • 2 in diameter shock body
  • High-flow piston that reduces harshness
  • Schrader valve fitting with a dividing piston
  • Owner rebuildable design

Choosing the right setup

Reservoir shocks separate the gas and oil chamber from the main body, which gives the piston room to work and helps the damper resist heat buildup on long runs. The dividing piston in the reservoir is what lets the shaft move farther, so the setup suits rough trails where the axle travels a lot.

Before choosing a reservoir shock, measure the installed length, the compressed length and the mounting style of the unit you are replacing. Reservoir clearance matters too, since the hose and reservoir need space away from tires, brake lines and the frame. Upgrading bushings and bump stops alongside the shock often helps the whole suspension work together.

  • Keep the reservoir clear of tire and frame contact
  • Replace worn bushings with the shock when they are loose
  • Rebuild seals on a schedule rather than waiting for leaks

Specifications

Brand Bilstein
Part number AK7112SB01
Shock series 7100 Series
Shock type Reservoir, monotube gas pressure
Body diameter 2 in
Valve Schrader
Travel options in series 8, 10, 12 and 14 in
Fitment type Universal

Vehicle fitment

Shocks are sized for particular vehicles, so measure the installed length, travel and mounting against your current shock before ordering. Confirm fit for your vehicle’s year, model and trim before ordering.

Measure the shock’s installed length and travel against your current unit. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One reservoir shock absorber.

Questions & Answers

Which trucks is the Bilstein AK7112SB01 made for?

Confirm fit for your vehicle's year, model and trim before ordering. Shocks are sized for particular trucks, so check length, travel and mounting against your current shock first.

Is this shock a reservoir version?

Yes. The 7100 Series is sold with or without a remote reservoir, and the AK7112SB01 is the reservoir version with a dividing piston in the reservoir.

Can the 7100 Series be rebuilt by the owner?

Yes. The 7100 Series is designed to be completely rebuilt by its owner, which supports a long service life rather than full replacement.

How often should an owner-rebuildable shock be serviced?

Service intervals depend on how the truck is used. Inspect for leaks and loss of damping after rough trail use, and rebuild the shock when seals or fluid show wear. Keeping a record of service dates helps you spot trends.
