Bilstein 4600 Series Shock Absorber – 24-228831

Bilstein

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein B6 4600 front shock, part number BIL24-228831, monotube shock kit
  • Not for trucks with factory air suspension or the off-road package; sold individually
  • 46 mm body with OEM top and bottom mounts and gas charged construction
  • Fits 2019–2026 Ram 1500 Big Horn, HFE, Laramie, Laramie Longhorn, Limited Longhorn, Lone Star and Tradesman

Description

Overview

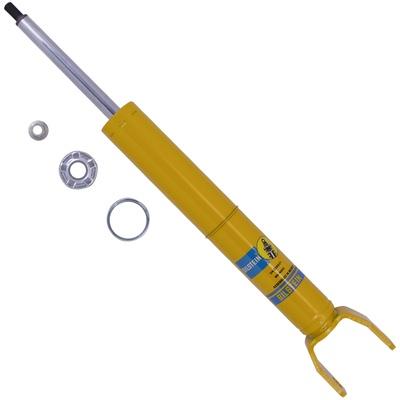

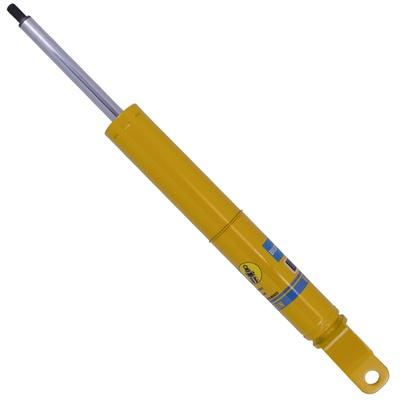

The Bilstein B6 4600 front shock kit, part number BIL24-228831, is a monotube shock for the 2019 to 2026 Ram 1500. Bilstein designs the B6 4600 as a direct fit upgrade for the original shocks on stock height light trucks and SUVs, and this kit keeps the OEM top and bottom mounts.

It does not fit trucks with factory air suspension or the off-road package. Confirm fit for your vehicle’s year, model and trim before ordering. The lift height for this kit is without air suspension, which is the stock height setup.

The body is 46 mm and the shock is gas charged. The monotube design gives consistent, fade free performance, uses a velocity sensitive digressive piston and is tuned for each application, which improves ride quality, handling and comfort.

Key features

  • Front position with OEM top mount and OEM bottom mount
  • 46 mm body diameter
  • Monotube shock kit
  • Gas charged construction
  • Velocity sensitive digressive piston
  • Tuned for the specific application

Before you buy

A shock absorber controls how the spring and suspension move after a bump, so a worn unit can leave the front end bouncy, loose or slow to settle. Front shocks also affect steering feel and how the truck brakes, which is why many owners replace both sides at the same time. Monotube designs use one tube with a separate piston, which helps them handle heat on longer drives over rough roads.

Before buying, check the suspension type, the trim and whether the truck has the off-road package, since those affect fit more than any other detail. Compare the upper and lower mounts on the old shock with the new one. Bump stops and coil springs often wear alongside the shock, so inspect them while the front end is apart.

  • Oil on the outside of the body
  • Bouncing or rocking after bumps
  • Uneven tire wear across the front axle
  • Clunking over small bumps

Specifications

Brand Bilstein
Part number BIL24-228831
Shock series 4600 Series
Position Front
Shock type Monotube shock kit, gas charged
Body diameter 46 mm
Top mount OEM
Bottom mount OEM
Lift height Without air suspension
Sold as Individually
Fitment Direct fit

Vehicle fitment

It fits 2019 to 2026 Ram 1500 trucks in Big Horn, HFE, Laramie, Laramie Longhorn, Limited Longhorn, Lone Star and Tradesman trim.

The kit is not for trucks with factory air suspension or the off-road package. The list does not include the Ram 1500 from 2018 and earlier, the Ram 2500 or 3500, or other trims. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the kit uses the OEM mounts, it fits in the factory positions. Check the suspension type of your truck before installing, since air suspension is excluded.

What’s included

The product is a monotube shock kit under part number BIL24-228831, sold individually.

Fitment

VehicleYearsTrims
Ram 15002019–2026Big Horn, HFE, Laramie, Laramie Longhorn, Limited Longhorn, Lone Star, Tradesman

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the BIL24-228831 fit a 2020 Ram 1500?

Yes, if the truck is one of the listed trims and does not have factory air suspension or the off-road package. The list covers 2019 to 2026 Ram 1500 models, so confirm the trim before ordering.

Can it be fitted to a Ram with air suspension?

No. The kit does not fit trucks with factory air suspension, so check the suspension on your truck before ordering.

What lift height is this kit for?

The listed lift height is without air suspension, which is the stock height setup. Confirm your truck's height and suspension type before ordering.

Should both front shocks be replaced together?

Usually yes. Replacing the pair keeps damping matched on each side, so the truck tracks and corners consistently. Check both sides for leaks and mount wear before deciding whether one unit alone is enough.

How do I tell if the shock needs replacing?

Look for oil on the outside of the body, a bouncy ride after bumps and uneven tire wear. Push down hard on each front corner and let go; a worn shock lets the truck rebound more than once before it settles.
