Overview
The Bilstein 5160 Series reservoir rear shock absorber, part number 25-187625, fits a wide range of Chevrolet and GMC full-size trucks and SUVs from 1999 to 2013, plus the 2003–2009 Hummer H2 Base. Its lift rating is 0 to 1 in., and both mounts are 14.4 mm eyes.
The 5160 reservoir design installs in the stock shock location with no cutting or welding. The remote reservoir holds extra shock oil, which helps heat dissipation and damping sensitivity, and the floating dividing piston moves inside the reservoir for more shaft movement.
Key features
- Remote reservoir with added shock oil capacity
- Mono tube body with a unique digressive valving system
- Floating dividing piston located in the reservoir
- Zinc plated finish with Triple-C Technology
- Eye mounts at both ends, 14.4 mm
Lift rating and clearance
Full-size trucks and SUVs carry heavy loads, so a rear shock with a 0 to 1 in. lift rating should be paired with suspension that is in good condition. Check the rear springs, the spring seats and the shock mounts before installing a new shock. A reservoir shock adds oil capacity, which helps when the vehicle carries loads or tows.
Reservoir placement can be tight on these vehicles, so mount the reservoir where it will not rub the frame, body or wheel well at full compression. Plan for any extra hardware your truck’s configuration needs. After the first few drives, re-check reservoir clearance and fasteners.
- Inspect rear springs and spring seats
- Confirm reservoir clearance at full compression
- Re-check fasteners after the first drives
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 25-187625 |
| UPC | 651860665573 |
| Shock series | 5160 Series |
| Position | Rear |
| Fitment type | Direct fit |
| Lift height | w/0 – 1 in. lift |
| Hydraulic / gas charged | Gas charged |
| Collapsed length | 16.14 in. |
| Extended length | 27.17 in. |
| Travel length | 11.03 in. |
| Lower mount | Eye, 14.4 mm |
| Upper mount | Eye, 14.4 mm |
| Shaft diameter | 14 mm |
| Reservoir | Yes |
| Finish | Zinc plated |
| Body design | 46 mm ID smooth body, non-coilover |
| Internal design | Mono tube |
| Boot included | No |
| Mounting parts included | Reservoir mount kit |
Vehicle fitment
The manufacturer list covers 2002–2006 Chevrolet Avalanche 1500 and 2500; 2001–2003 and 2005–2006 Silverado 1500 HD; 2007 Silverado 1500 HD Classic; 1999–2004 and 2001–2010 Silverado 2500 and 2500 HD; 2007 Silverado 2500 HD Classic; 2001–2006 and 2007 Silverado 3500 and Classic; 2007–2010 Silverado 3500 HD; 2000–2006 Suburban 1500 and Tahoe; 2000–2013 Suburban 2500; matching GMC Sierra 1500 HD, 2500, 2500 HD, 3500 and 3500 HD years; 2000–2006 Yukon, Yukon XL 1500; 2000–2013 Yukon XL 2500; and the 2003–2009 Hummer H2 Base.
It fits Chevrolet Avalanche, Silverado, Suburban, Tahoe, Yukon and Yukon XL models, plus matching GMC Sierra models and the 2003–2009 Hummer H2 Base, across the years covered above. Check your year, model and trim before ordering, paying close attention to the 2004 year on 1500 HD trucks and to model years after 2013.
Installation notes
The reservoir mount kit is the only mounting part listed, and the mount configuration depends on the vehicle. Because the list spans many body styles, match the 0 to 1 in. lift rating to your truck and check the reservoir position before tightening.
What’s included

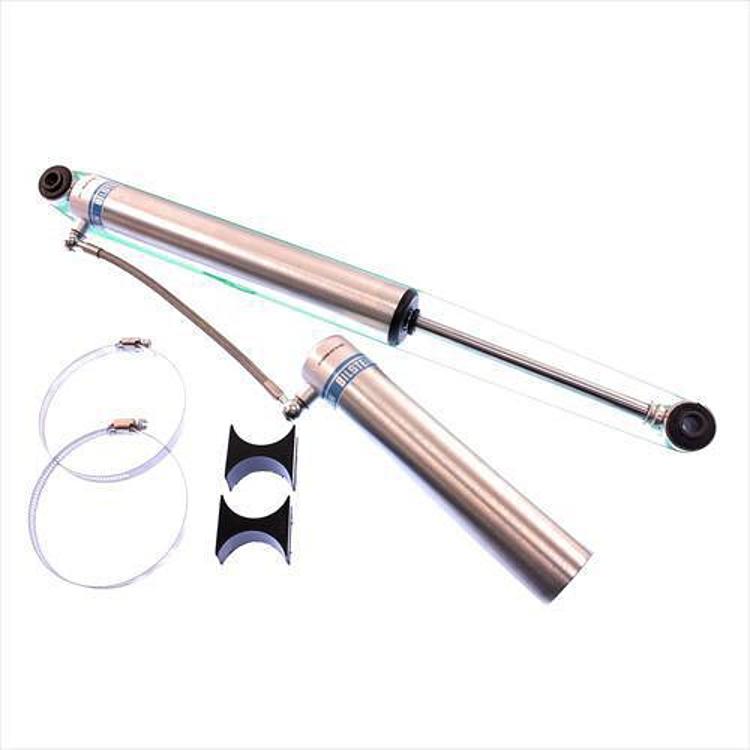

The package includes the shock absorber and a reservoir mount kit.
