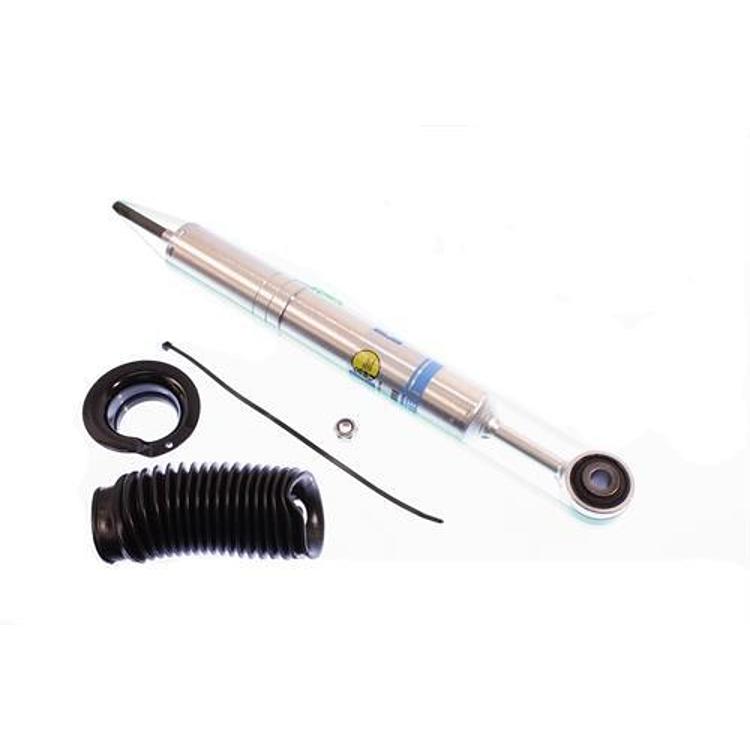

Bilstein 5100 Series Ride Height Adjustable Shock Absorber – 24-232173

Bilstein

$166.93In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 3:10 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Ride height adjustable front shock for coilover style pickup suspensions
  • 0 to 2.5 in. front end lift depending on application
  • Extended 24.21 in., collapsed 17.77 in.
  • Part number 24-232173, UPC 651860730707

Description

Overview

The Bilstein 24-232173 is a ride height adjustable 5100 Series shock absorber for front coilover style pickup suspensions. It is a 46mm monotube unit with a digressive piston and self-adjusting deflective disc valving.

The snap-ring grooves in the body let you set different spring seat positions. Each setting provides 0 to 2.5 in. of front end lift depending on application, and the design increases wheel travel and improves handling.

Key features

  • Ride height adjustable through multiple snap-ring grooves
  • 46mm digressive piston
  • Self-adjusting deflective disc valving
  • Zinc-plated steel body with Triple-C-Technology coating
  • 0 to 2.5 in. front end lift depending on application

Front coilover pickup upkeep

Ride height adjustable front shocks rely on the spring seat position to set front end lift, so the seat and snap ring deserve regular checks. Dirt or corrosion in the grooves can make adjustment difficult and can allow the seat to shift under load. Clean and inspect the grooves before changing settings.

A coilover style pickup suspension depends on the shock, spring and mounts working together. When a height change is made, recheck clearance at full compression and extension, and inspect the boot and rod for wear. Check that the shock is not binding against the frame or spring after adjustment.

  • Clean snap-ring grooves before adjusting
  • Recheck clearance after each height change
  • Inspect boots and rods for wear
  • Replace worn spring seats when they shift

Specifications

Brand Bilstein
Part number 24-232173
UPC 651860730707
Shock series 5100 Series
Mounting location Front
Ride height Adjustable
Piston 46mm digressive
Finish Zinc
Extended length 24.21 in.
Collapsed length 17.77 in.
Front end lift 0 to 2.5 in., depending on application
Hydraulic / gas charged Gas charged

Vehicle fitment

It is made for front coilover style pickup suspensions. Confirm your year, make, model and trim before ordering, since the shock’s length has to match your setup.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Choose the snap-ring groove that matches your intended front end lift, and check the 24.21 in. extended and 17.77 in. collapsed lengths against your setup before final assembly.

What’s included

The package is one shock absorber. Spring seats and other hardware are not included, so check your kit before installing.

SKU: BIL24-232173 Category:

Specification

Shipping weight 6.95 lbs
Package dimensions 26.80 × 3.60 × 3.60 in
brands

Questions & Answers

Is the Bilstein 24-232173 adjustable for ride height?

Yes. It is ride height adjustable. Multiple snap-ring grooves set different spring seat positions, providing 0 to 2.5 in. of front end lift depending on application.

What are its extended and collapsed lengths?

The extended length is 24.21 in. and the collapsed length is 17.77 in. It is a 46mm monotube unit with a zinc finish.

Does it fit my pickup?

Confirm fit for your year, make, model and trim before ordering. It is made for front coilover style pickup suspensions, so match it to your suspension type.

How do I choose a snap-ring groove?

Pick the groove that gives your target front end lift, then check the installed length at that setting. Recheck spring seat alignment with the suspension loaded and tighten fasteners to the correct torque for your vehicle.
