Overview
The Bilstein 5160 Series front reservoir shock absorber, part number 25-187595, installs in the stock shock mounting location of pickups without cutting or welding. It fits 2006–2008 Dodge Ram 1500 trucks and 1994–2013 Ram 2500 and 3500 models across several trims.
The remote reservoir adds shock oil capacity, which helps heat dissipation and damping sensitivity. The reservoir mounting configuration is set for each vehicle application. A floating dividing piston inside the reservoir allows more shaft movement and wheel travel, and the mono tube design uses a digressive valving system for full damping right away.
Key features
- Remote reservoir for greater shock oil capacity
- Mono tube body with a unique digressive valving system
- Floating dividing piston in the reservoir for more shaft movement
- Stock-location mounting with no cutting or welding required
- Zinc plated finish with Triple-C Technology, which Bilstein says is easy to care for
Reservoir and remote mount setup
A remote reservoir moves part of the shock’s oil volume away from the body, which gives the damping more room to work during repeated hard use. Shock oil that stays cooler holds its damping behavior better over long climbs and rough trails. Because the reservoir sits outside the body, hose routing and clearance from tires, frame and steering linkage should be planned before the shock is bolted in.
Check the reservoir frame mount for cracks or loose fasteners during each inspection, and keep the reservoir clear of mud and rock strikes. When replacing a reservoir shock, inspect the upper stem mount and lower eye for wear at the same time, since a loose mount can change the reservoir angle. Replace worn bushings and mount hardware before the new shock goes in.
- Plan reservoir clearance before tightening mounts
- Inspect the reservoir frame mount for cracks
- Keep the reservoir clear of mud and rock strikes
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 25-187595 |
| UPC | 651860653464 |
| Shock series | 5160 Series |
| Position | Front |
| Fitment type | Direct fit |
| Lift height | w/0 – 3 in. lift |
| Hydraulic / gas charged | Gas charged |
| Collapsed length | 15.2 in. |
| Extended length | 25.96 in. |
| Travel length | 10.76 in. |
| Lower mount | Eye, 14.4 mm |
| Upper mount | Stem |
| Shaft diameter | 14 mm |
| Reservoir | Yes |
| Finish | Zinc plated |
| Body design | 46 mm ID smooth body, non-coilover |
| Internal design | Mono tube |
| Boot included | No |
| Mounting parts included | Upper mount kit and reservoir frame mount kit |
Vehicle fitment
The manufacturer list includes 2006–2008 Dodge Ram 1500 Laramie, SLT and SXT; 1994–2010 Dodge Ram 2500 and 3500 in Base, Laramie, SLT, SXT, Sport and other trims, including Power Wagon, TRX and TRX4; 2011–2013 Ram 2500 in Big Horn, Laramie, Power Wagon, SLT and Tradesman trims; and 2011–2012 Ram 3500 in Laramie, Laramie Longhorn, SLT and ST trims.
Years and models outside this list, including 2014 and newer Ram trucks, are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The reservoir mounting configuration is specific to each vehicle application, so the included reservoir frame mount kit has to match your truck. Detailed instructions come with the kit, and the upper stem mount should be checked against the stock location before the reservoir is secured. The listed lift range is 0 to 3 in.
What’s included

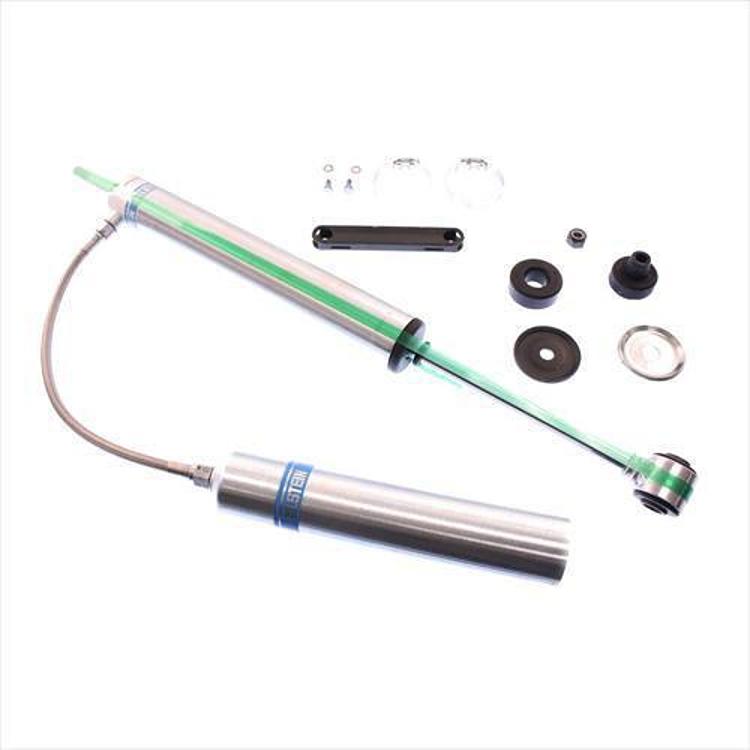

The package includes the shock absorber, an upper mount kit, a reservoir frame mount kit and detailed instructions.
