Overview

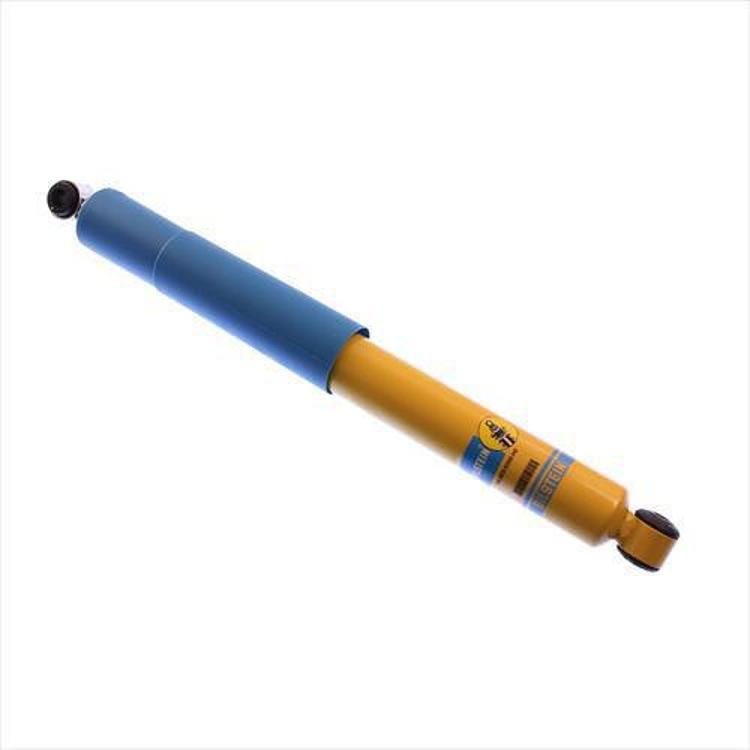

The Bilstein 4600 Series Shock Absorber, part number 24-185462, is a gas-charged monotube shock with a 2 in body diameter, yellow finish and boots included. It is designed for the 2000–2005 Ford Excursion.
In Bilstein’s design, the monotube body carries heat from the oil out to the shock body, where it dissipates more efficiently. A dividing piston absorbs the oil’s expansion as temperatures climb, helping the shock hold full damping under heat. The tube is extruded to tight peak-to-valley tolerances and keeps a consistent wall thickness along its length.
The piston head allows compression and rebound damping to be tuned separately. The shock has no external reservoir.
Key features
- Single-tube gas-charged body with heat transfer through the shock body
- Dividing piston compensates for oil expansion
- Extruded tube held to tight peak-to-valley tolerance
- Separately tuned compression and rebound damping
- Boots included
- No external reservoir
Excursion shock upkeep
Full-size SUVs such as the Excursion carry a heavy body on a long wheelbase, so the shocks spend much of their time working against weight. Keeping damping steady matters on highway grades and during trailer towing. Check the mounts, bushings and boots at each service, and look for wet fluid on the outer body after a long trip.
A gas-charged body should be handled with care. Keep heat away from the cylinder during removal and avoid cutting the shell. Compare the shock being replaced with the new unit before fitting, especially the body diameter and mount types. A rebound feel that changes over time can signal a worn shock, even when there is no visible leak.
- Check the boots for tears
- Inspect mounts and bushings
- Look for oil on the body after long trips
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-185462 |
| UPC | 651860613635 |
| Series | 4600 Series |
| Type | Monotube |
| Charge | Gas charged |
| Body diameter | 2 in |
| Finish | Yellow |
| Reservoir | No |
| Boots | Included |
| Fitment type | Direct Fit |
Vehicle fitment
It fits the 2000–2005 Ford Excursion in Eddie Bauer, Limited, XLS and XLT trims. Other trucks and SUVs are not covered by this fit.
Models such as the Ford F-250 and F-350 Super Duty are not on this part’s list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
No mounting eye sizes or stroke lengths are given for this 4600 shock, so compare its 2 in body diameter with the shock you are replacing before fitting. The body holds pressurized gas, so it must not be heated, cut or punctured.
What’s included
Shock absorber with boots.
