Overview

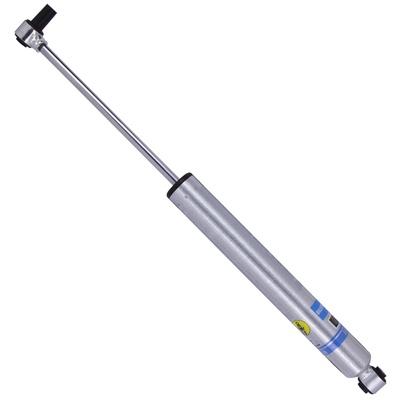

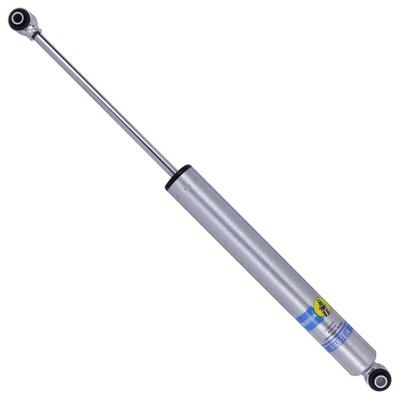

The Bilstein 5100 Series 24-310635 is a shock absorber for the 2018–2026 Jeep Wrangler (JL), in both the two-door and four-door body styles. It is built for a 3 to 4.5 inch lift and is sold individually.
The unit has a 46mm zinc-plated smooth body with eyelet mounts at the top and bottom. Its collapsed length is 18.31 inches and its extended length is 28.43 inches, so compare these dimensions with the shock you are replacing. It is a monotube design with a digressive piston and offers improved ride quality, handling and comfort.
Confirm whether this is the front or rear unit by comparing it with the shock you remove before ordering.
Key features
- Built for a 3 to 4.5 in lift
- Covers two-door and four-door JL Wranglers
- Eyelet top and bottom mounts
- Smooth 46mm zinc-plated body
- Monotube design with a digressive piston
Choosing a lift height
Lift height decides how much shock travel a truck needs. A shock built for a range of lifts keeps its stroke and damping within a sensible band, so measuring your current rear or front lift is the first step. Take the measurement at the same point on each side and note any uneven settling from age or load.
Ride height changes shock angle as well as length. A steeper angle can wear the mounts faster, so check the eyelet bushings and hardware at each oil change. Shocks work best when they are paired with the springs and bump stops that suit the same lift.
- Measure the lift at the axle before ordering
- Inspect eyelet bushings for cracks
- Replace bump stops when the lift changes
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-310635 |
| Shock series | 5100 Series |
| Position | Rear in short details; front in position field |
| Lift | 3 to 4.5 in |
| Body diameter | 46mm |
| Collapsed length | 18.31 in |
| Extended length | 28.43 in |
| Top mount | Eyelet |
| Bottom mount | Eyelet |
| Shock type | Monotube, gas-charged |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2018 through 2026 Jeep Wrangler (JL), in both two-door and four-door body styles, including the Unlimited four-door versions.
Wranglers from the JK generation (2007 to 2018) and the JT Gladiator are not on this list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One shock absorber, sold individually.
