Overview

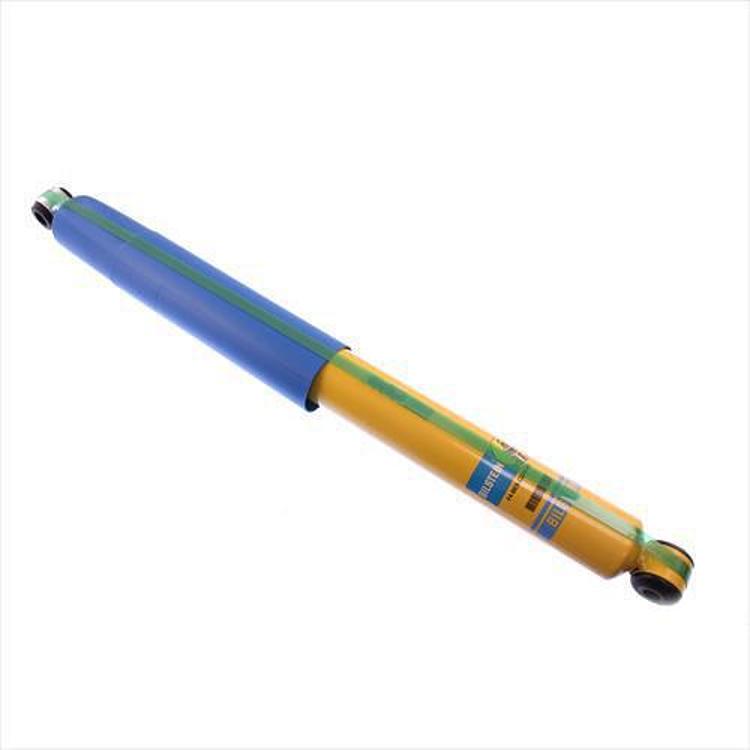

The Bilstein 4600 Series rear shock absorber, part number 24-185981, is a 2-inch monotube gas-charged shock that Bilstein fits to the 1999–2016 Ford F-250 Super Duty and F-350 Super Duty. Bilstein identifies it as a rear position, direct-fit shock with 0 in of lift or drop, so it is a replacement rather than a lift product.
Gas-charged monotube construction is the core of the design. The outer wall of the body is where heat from the oil is released, and a dividing piston makes room for the oil to swell as it warms. Bilstein connects that layout to steady damping, saying the oil resists foaming and thinning as the shock heats up.
Key features
- Direct-fit rear position shock in the 4600 Series.
- Gas-charged monotube body with an outer wall that helps release heat from the oil.
- Dividing piston gives the oil room to expand, which Bilstein says reduces foaming and viscosity loss.
- Tube formed by a special extrusion process and held to a tight peak-to-valley tolerance.
- Piston head lets compression and rebound damping be set independently.
- Built with fewer parts than most twin tube designs, Bilstein states.
- Yellow finish with boots included and no reservoir.
Choosing and fitting a rear shock
A rear shock controls body motion over bumps and during braking, and on a heavy-duty truck it works hard when the bed is loaded. Worn units often show up as a bouncy or floating ride, fluid on the outside of the body, or cupped tire wear. When one side is replaced, check the other side as well, since mismatched damping can make the rear end sway or pull on uneven pavement.
Gas-charged monotube designs keep the oil under pressure, so the body should stay intact during removal and storage. Keep the unit upright, away from heat, and never attempt to open or puncture it. While the old shock is off, inspect the upper and lower mounting bushings. Worn bushings make a new shock feel loose, so replace them at the same time if they show play.
- Inspect upper and lower bushings for cracks or play
- Torque fasteners to the value in your service manual
- Replace shocks in pairs when one side is worn
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-185981 |
| UPC | 651860492971 |
| Shock series | 4600 Series |
| Position | Rear |
| Type | Monotube |
| Charge | Gas charged |
| Body diameter | 2 inch |
| Lift/drop | 0 in |
| Finish | Yellow |
| Reservoir | No |
| Boots included | Yes |
Vehicle fitment
The manufacturer fitment list covers the 1999–2016 Ford F-250 Super Duty and the 1999–2016 Ford F-350 Super Duty, each in the Cabela’s, FX4, Harley-Davidson Edition, King Ranch, Lariat, Platinum, XL and XLT trims. Confirm your vehicle’s year, model and trim before ordering.
Other Ford Super Duty models, such as the F-450 and F-550, are not on this list, and neither are years outside 1999–2016.
Installation notes
Confirm the mounting hardware and tools you need before starting the swap. Rear shocks are often replaced in pairs so both sides damp the same way. Support the truck on proper stands, never on a jack alone.
What’s included
Boots come with the shock. Check the package contents against your original shock before starting the swap.
