Bilstein 46mm Monotube Shock Absorber – 24-022361

Bilstein

Shop Ford Ranger Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1990 Ford Bronco II, 1990–1997 Ford Ranger and 1994–1997 Mazda B2300 and B4000
  • Also fits 1994–1996 Mazda B3000 in Base and SE trims
  • Front position, 46mm monotube, gas charged, 4600 Series
  • Heavy duty, yellow finish, Bilstein part number 24-022361

Description

Overview

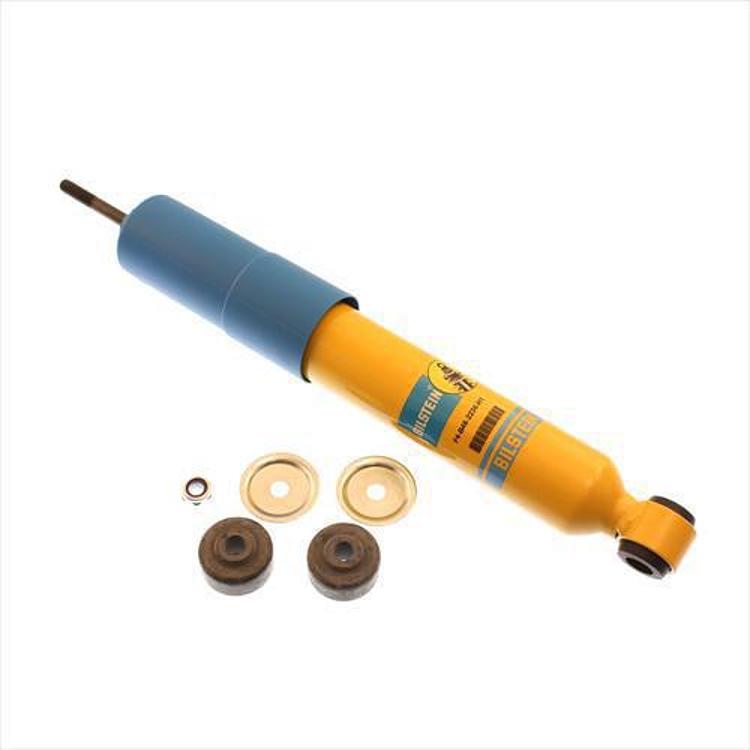

The Bilstein 24-022361 is a front 46mm monotube gas charged shock absorber in the 4600 Series. It fits the 1990 Ford Bronco II, the 1990–1997 Ford Ranger and the 1994–1997 Mazda B2300 and B4000, plus the 1994–1996 Mazda B3000. It is a heavy duty direct fit shock in yellow, with a single tube that holds gas pressure.

Heat control is the main job of this shock. The damping oil passes heat through the shock body to the outer surface, where it dissipates. A dividing piston lets the oil expand as it warms, which prevents aeration and foaming and keeps the oil from losing viscosity. The shock therefore keeps its full damping characteristics as temperatures rise.

Key features

  • Gas charged monotube body that moves heat from the damping oil to the outer shock surface.
  • Dividing piston lets the oil expand as heat builds, reducing foaming and viscosity loss.
  • Seamless tube made by a special extrusion method, with tight peak-to-valley tolerance and consistent wall thickness.
  • Piston head tunes compression and rebound damping independently for ride comfort and control.
  • The design uses fewer parts than conventional twin tube and road sensing shocks.
  • Heavy duty construction in a yellow finish, from the 4600 Series.

Front shock on older trucks

Compact pickups and older Ford and Mazda trucks often carry loads over rough ground, so the front shock sees steady work from washboard roads and potholes. A gas charged monotube design is built to shed heat through the body, which helps the damping hold up during long drives. Heavy duty construction suits repeated hard hits on rough ground.

Before choosing a front shock for an older truck, check the upper and lower mounts, the bushings and the bump stop, since worn parts can cause a new shock to feel loose. Many owners replace the pair at once so the steering and ride stay balanced. Look for oil on the body, a clunk over bumps or uneven front tire wear as signs of trouble.

Specifications

Brand Bilstein
Part number 24-022361
UPC 651860643441
Old part number BILF4-B46-2236-H1
Shock series 4600 Series
Position Front
Size 46mm monotube
Charging Gas charged
Fitment type Direct fit
Lift/drop rating w/0 in. Lift/Drop
Finish Yellow

Vehicle fitment

It fits 1990 Ford Bronco II (Eddie Bauer, XL, XL Sport, XLT, XLT Plus); 1990–1997 Ford Ranger (Custom, S, S Plus, STX, Splash, Sport, XL, XL Sport, XLT); 1994–1997 Mazda B2300 (Base, SE); 1994–1996 Mazda B3000 (Base, SE); and 1994–1997 Mazda B4000 (Base, LE, SE).

Other Ford and Mazda models, later Ranger generations and years outside these ranges are not covered by this list. Confirm your vehicle’s year, model and trim before ordering.

What’s included

Only the shock absorber is included in this part number. Check the delivered parts against the packaging before fitting, including mounting hardware.

SKU: BIL24-022361 Category:

Specification

Shipping weight 3.45 lbs
Package dimensions 22.50 × 3.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Ford Bronco II1990Eddie Bauer, XL, XL Sport, XLT, XLT Plus
Ford Ranger1990–1997Custom, S, S Plus, STX, Splash, Sport, XL, XL Sport, XLT
Mazda B23001994–1997Base, SE
Mazda B30001994–1996Base, SE
Mazda B40001994–1997Base, LE, SE

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Bilstein 24-022361 fit a 1990 Ford Bronco II?

Yes. It fits the 1990 Ford Bronco II in the Eddie Bauer, XL, XL Sport, XLT and XLT Plus trims. Other years and models fall outside that range, so confirm your vehicle's year and trim first.

What is the part number and what type of shock is it?

Bilstein part number 24-022361 is a 46mm monotube gas charged shock absorber in the 4600 Series. The older part number BILF4-B46-2236-H1 is also listed, and the finish is yellow.

Is this a front or rear shock?

It is a front shock. The type is Direct Fit with a gas charged design, and the lift or drop rating is w/0 in. Lift/Drop, so confirm placement against your vehicle first.

Should I replace front shocks along with the springs?

Not always, but worn springs and shocks often wear together, so inspect both. Replacing only the shock on an older truck with sagging springs may not restore the ride, so check the springs at the same time.
