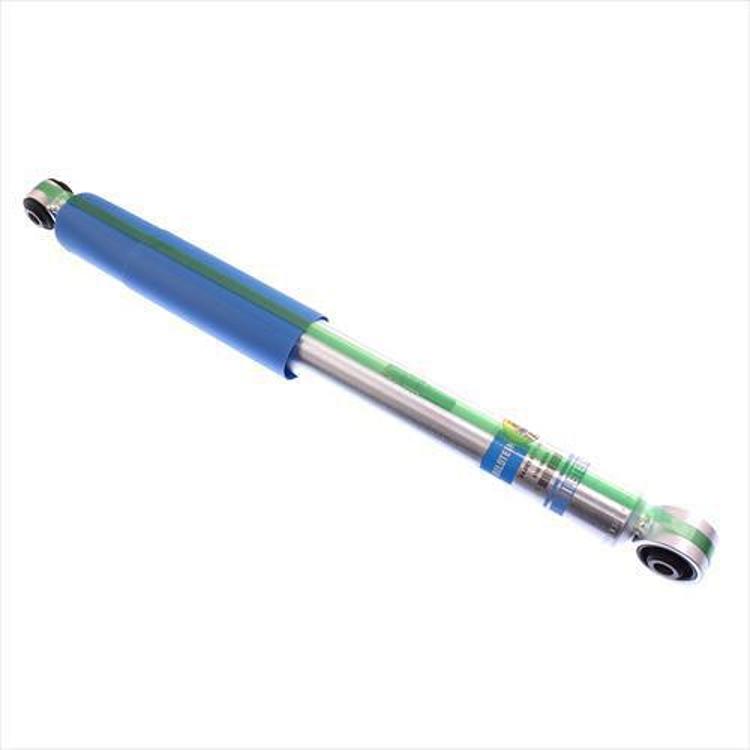

Bilstein 5100 Series Shock Absorber – 24-186957

Bilstein

Shop GMC Sierra 1500 Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein 5100 Series shock absorber, part 24-186957, with eye mounts at both ends
  • Fits 2007–2013 Chevrolet Silverado 1500 and GMC Sierra 1500 models
  • Collapsed 16.53 in, extended 25.39 in, travel 8.86 in
  • Eye mounts at 14.12mm, 11mm shaft
  • Zinc plated gas charged monotube with boot included

Description

Overview

The Bilstein 24-186957 is a 5100 Series shock absorber with eye mounts at both ends, designed for the 2007–2013 Chevrolet Silverado 1500 and GMC Sierra 1500. It has a smooth, non-coilover 46mm ID body for lifted trucks, Jeeps and prerunners.

The shock uses a single tube, high gas pressure monotube design for consistent performance and long service life. Its control suits large diameter tires. The body is designed for specific manufacturer lift kits that use the factory O.E.M. mounting configuration.

Key features

  • Monotube gas pressure construction
  • Self-adjusting deflecting disc valving
  • High-flow piston intended to reduce harshness
  • Independent rebound and compression tuning
  • Larger working piston area for damping control
  • Designed for specific manufacturer lift kits using the factory mounting configuration

Eye mounts and lift kit fit

Eye mounts at both ends are simple to install, but the bushing size and hardware need to match. Before fitting, compare the eye diameter and bushing at each end with the shock being removed. A mismatch can cause the shock to bind, wear prematurely or rattle over bumps, so confirm each end before the vehicle is loaded.

Because this shock is designed around factory-style mounting configurations used with certain lift kits, check that your suspension height and mounting points match the kit before you buy. A shock that is too short or too long for the suspension travel can limit articulation. Inspect the shaft and boot regularly for scoring or tears.

  • Compare eye sizes at both ends
  • Confirm bushings and hardware match
  • Check suspension height against the kit
  • Inspect the shaft for scoring

Specifications

Brand Bilstein
Part number 24-186957
UPC 651860591476
Shock series 5100 Series
Fitment type Direct fit
Collapsed length 16.53 in
Extended length 25.39 in
Travel length 8.86 in
Lower mount Eye 14.12mm
Upper mount Eye 14.12mm
Shaft diameter 11mm
Body design 46mm ID smooth body (non-coilover)
Internal design Monotube
Reservoir No
Gas charge Gas charged
Finish Zinc plated
Boot Included

Vehicle fitment

The manufacturer fitment list names 2007–2013 Chevrolet Silverado 1500 (Hybrid, LS, LT, LTZ, WT, XFE) and 2007–2013 GMC Sierra 1500 (Hybrid, SL, SLE, SLT, WT, XFE).

The 2500 HD and 3500 models, Suburban, Tahoe and Yukon are not in this list, and no model year outside 2007 through 2013 is covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because this shock is designed for specific manufacturer lift kits, confirm that your lift kit or factory suspension matches the mounting configuration before installing. Check alignment after any change in suspension height.

What’s included

One Bilstein 5100 Series shock absorber, part 24-186957, with the boot included. Not included: a manufacturer lift kit, which this shock is designed to work with.

SKU: BIL24-186957 Category:

Specification

Shipping weight 4.63 lbs
Package dimensions 26.80 × 3.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet Silverado 15002007–2013Hybrid, LS, LT, LTZ, WT, XFE
GMC Sierra 15002007–2013Hybrid, SL, SLE, SLT, WT, XFE

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Bilstein 24-186957 fit a 2007 Silverado 1500 or Sierra 1500?

Yes. The manufacturer fitment list includes 2007 to 2013 Chevrolet Silverado 1500 and GMC Sierra 1500 models, with trims such as Hybrid, LS, LT, LTZ, SL, SLE and SLT. Confirm your year, model and trim before you choose this shock.

Is the boot included with this 5100 Series shock?

Yes. The boot is included with this shock, which has a 46mm ID smooth non-coilover body, eye mounts at both ends and an 11mm shaft. It is a monotube, gas charged design with a zinc plated finish.

What lengths and travel does the 24-186957 offer?

It measures 16.53 in collapsed, 25.39 in extended and 8.86 in of travel. The shock uses 14.12mm eye mounts at both the lower and upper ends.

What should I check before installing eye mounts?

Compare the eye size and bushing at each end with your old shock. Make sure the hardware matches, and confirm the shock sits without binding through its travel. Check that your suspension height matches the lift kit the shock was designed for before the vehicle is driven.
