Bilstein 5160 Series Reservoir Shock Absorber – 25-187663

Bilstein

Shop Jeep Wrangler JK Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits the 2007–2018 Jeep Wrangler (JK) in the trims covered by this fitment
  • Rear position Bilstein 5160 Series reservoir shock, part number 25-187663
  • Collapsed length 14.95 in., extended length 25 in., travel 10.05 in.
  • 14mm shaft, 46mm ID smooth body, mono tube design
  • Includes reservoir mount kit and detailed instructions

Description

Overview

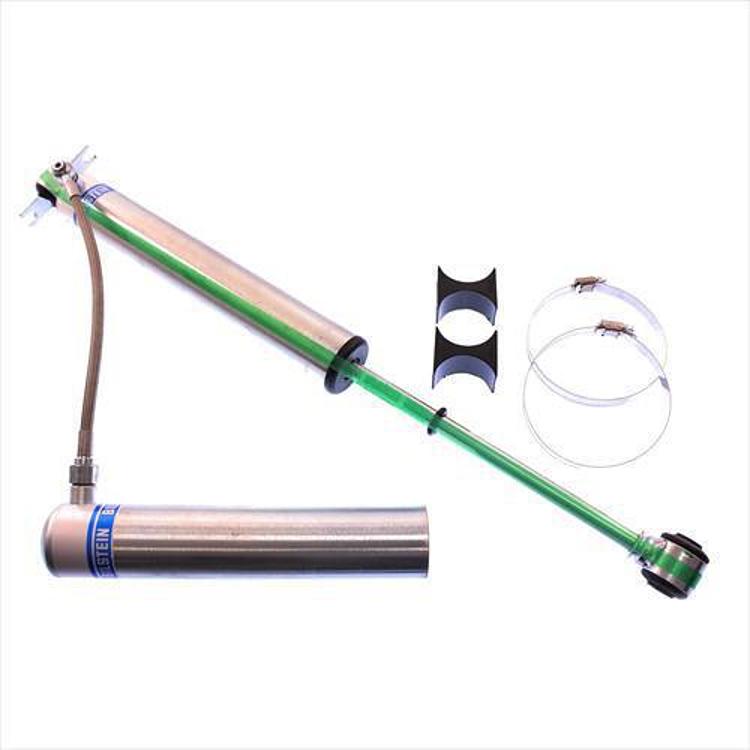

The Bilstein 5160 Series reservoir shock absorber, part number 25-187663, is a rear gas charged shock for the 2007–2018 Jeep Wrangler JK. It mounts in the factory shock location, so the install needs no cutting or welding, and the remote reservoir gives the shock more oil capacity for heat control and damping.

The body is a 46mm ID smooth body with a non-coilover design and a mono tube internal layout. The 14mm shaft and 10.05 in. of travel suit a 2 in. lift setup. The floating dividing piston sits inside the reservoir, which adds wheel travel and shaft movement.

Key features

  • Remote reservoir adds shock oil capacity for heat dissipation and damping sensitivity
  • Digressive valving system produces full damping capability right away
  • Floating dividing piston sits in the reservoir for more wheel travel and shaft movement
  • Mono tube design from Bilstein’s 5160 Series
  • Reservoir mounting configuration designed for each vehicle application
  • Triple-C Technology zinc plated finish for easy care
  • Gas charged construction

Rear reservoir clearance

Rear reservoir shocks mount in the factory location, but the reservoir can sit closer to the frame, exhaust or spare tire carrier than the body does. Once the suspension is raised or the axle moves through its travel, the hose and reservoir can rub or pinch. A careful check of routing at several points through the full stroke prevents that wear before it starts.

Rear damping handles the load of passengers and cargo as well as bumps, so the mounts and bushings carry steady stress. Keeping the mount kit tight and inspecting the bar mount or eye bushings during routine service helps the shock stay aligned. Replacing a cracked bushing before fitting a new shock avoids repeating the work.

  • Route the hose away from exhaust heat
  • Check the reservoir at full extension
  • Inspect bushings at each service interval

Specifications

Brand Bilstein
Part number 25-187663
UPC 651860645544
Series 5160 Series
Position Rear
Collapsed length 14.95 in.
Extended length 25 in.
Travel length 10.05 in.
Lower mount Eye, 12.1mm
Upper mount Bar mount
Shaft diameter 14mm
Body design 46mm ID smooth body (non-coilover)
Internal design Mono tube
Reservoir Yes
Gas charged Yes
Finish Zinc plated
Boot included No
Mounting parts included Reservoir mount kit
Lift height listed w/2 in. lift
Fitment type Direct fit

Vehicle fitment

The manufacturer fitment list covers the 2007–2018 Jeep Wrangler (JK) in the 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims, including the Unlimited versions of those trims. This is a rear position shock, so match it to the rear axle location on your vehicle.

The list does not include the Jeep Wrangler TJ, LJ or JL, or the earlier YJ models. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Detailed instructions come with the reservoir mount kit. Because this shock is for a 2 in. lift setup, recheck reservoir clearance and hose routing after installation and again after the first full suspension cycle.

What’s included

The package includes the reservoir mount kit and detailed instructions.

Not included: A dust boot, since the shock is listed with no boot.

SKU: BIL25-187663 Category:

Specification

Shipping weight 4.63 lbs
Package dimensions 26.80 × 6.10 × 6.10 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201875th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Bilstein 25-187663 fit a 2007 to 2018 Jeep Wrangler JK?

Yes, the manufacturer fitment list includes the 2007–2018 Jeep Wrangler (JK) in the 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims, plus their Unlimited versions. Match your trim against that list before installing.

Does this rear reservoir shock fit a Jeep Wrangler TJ or LJ?

No. It is written for the 2007–2018 Jeep Wrangler JK in the trims shown. TJ, LJ, JL and YJ models are not covered. Confirm fit for your vehicle's year, model and trim before ordering.

What are the collapsed, extended and travel lengths?

The collapsed length is 14.95 in., the extended length is 25 in. and the travel length is 10.05 in. The shock uses a 14mm shaft with a 46mm ID smooth body.

Does the shock include reservoir mounting hardware?

Yes, the reservoir mount kit is included along with detailed instructions. The shock is listed with no boot, so a boot is not part of the package.

Can a rear reservoir shock be paired with other rear upgrades?

Yes, but check that the shock length and reservoir clearance still work with the new parts. Changes to springs or axle components can alter how the shock moves, so recheck clearance after any rear suspension work.
