Overview

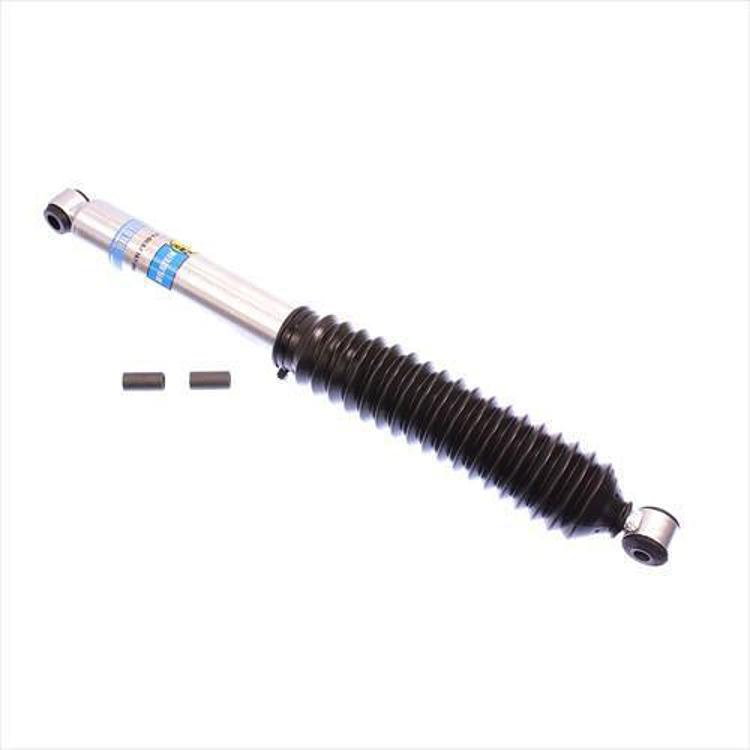

The Bilstein 5100 Series shock absorber, part number 33-151670, is a gas-charged monotube shock with a 12 mm lower eye and a 16 mm upper eye. Its collapsed length is 14.13 in and its extended length is 22.58 in, giving 8.45 in of travel. No vehicle, model or year is tied to this part, so confirm fit before ordering.
The 5100 Series is a single-tube, gas-pressure design aimed at lifted trucks, Jeeps and prerunners. This body is a 46 mm ID smooth body. Confirm the lift range and mounting position for your application before installing.
Key features
- Gas-charged monotube construction
- Self-adjusting deflecting disc valving
- High-flow piston for reduced harshness
- Independent rebound and compression tuning
- Large working piston area for damping
- Zinc plated finish on a 14 mm shaft
Before you buy a replacement shock
A shock absorber controls how quickly the springs compress and rebound, which affects body control on pavement and wheel control on rough trail. Because the shock works with the springs, bushings and control arms around it, a change in length or mounting style can shift ride height and steering feel. Gas-charged monotube designs are often chosen for steady damping under repeated hard use, but the final feel still depends on the rest of the suspension.
Measure the existing shock before ordering, noting the collapsed and extended lengths and the eye size at each end. Look at the bushings and bracket holes, since worn rubber can make a correct-length shock feel loose. A shock that leaks oil down the body, makes knocking noises or no longer controls bounce is a sign it needs replacing. Replace shocks in pairs on the same axle so both sides damp evenly.
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 33-151670 |
| UPC | 651860604718 |
| Series | 5100 Series |
| Collapsed length | 14.13 in. |
| Extended length | 22.58 in. |
| Travel length | 8.45 in. |
| Lower mount | Eye, 12 mm |
| Upper mount | Eye, 16 mm |
| Shaft diameter | 14 mm |
| Body design | 46 mm ID smooth body |
| Reservoir | No |
| Gas charged | Yes |
| Finish | Zinc plated |
| Fitment type | Direct fit |
Vehicle fitment
Fitment is Direct Fit, with no vehicle, model or year tied to this part number. Confirm fit for your vehicle’s year, model and trim before ordering.
Measure your existing shock’s collapsed and extended lengths against 14.13 in and 22.58 in before deciding. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check both the 12 mm lower eye and the 16 mm upper eye against the brackets they will bolt to, and confirm the collapsed and extended lengths suit your suspension before installing.
What’s included
One shock absorber. Check the package contents against your installation before starting.
